2019 Modern Temporary prefabricated houses

这里可以自定义设置
2019 Modern Temporary prefabricated houses
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
5 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
PH-001
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Product Type:
prefab house
Keyword:
Temporary prefabricated family houses
color:
blue & red top / white wall
column:
C section steel/ 2C80
buiding height:
max 3 floors
anti-seismic:
7 degree
certificate:
CE/ISO/SGS
Material:
Light Steel Structure
Door:
Steel Door
Size:
Customers Request
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Month



 On Line Catalogue:

PDF Catalogue: http://www.lidajituan.com/en/upload/2014/1/8182826942.pdf

LGS Villa Catalogue: http://www.lidajituan.com/en/upload/2014/1/1115150923.pdf



Technical Parameter:


Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150kg/m2
6. Live load of corridor is 2.0KN/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K





Type



With or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

Type two: with steel chassis, the building will be put on concrete blocks

Story

One storey or two storey or three storey are available



Frame system











Steel  column

Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint

Steel roof truss

C100*40*15*2.0, welding and galvanized

Roof and wall purlin

C100*40*15*2.0, galvanized

Cross bracing

Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint

Chemical bolt

M16, chemical bolt

Ordinary bolt

4.8S, galvanized

 Steel chassis or 1st floor system







Main beam

HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint

Secondary beam

C100*40*15*2.0 galvanized

Floor structure board

18/20mm plywood and fiber cement board

Flooring

PVC floor leather and ceramic tiles are available



Wall and Roof system



Wall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling system



Dry room

600*600*6mm gypsum board,with framework

Wet room

600*600*5mm calcium silicate board, with framework

Door and window system



Door

Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available

Window

PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available

Electric and Plumbing system

Electric units

Electric wire, conduit, socket, switch, light, distribution box



Sanitary units

Shower, closestool, basin, water pipe

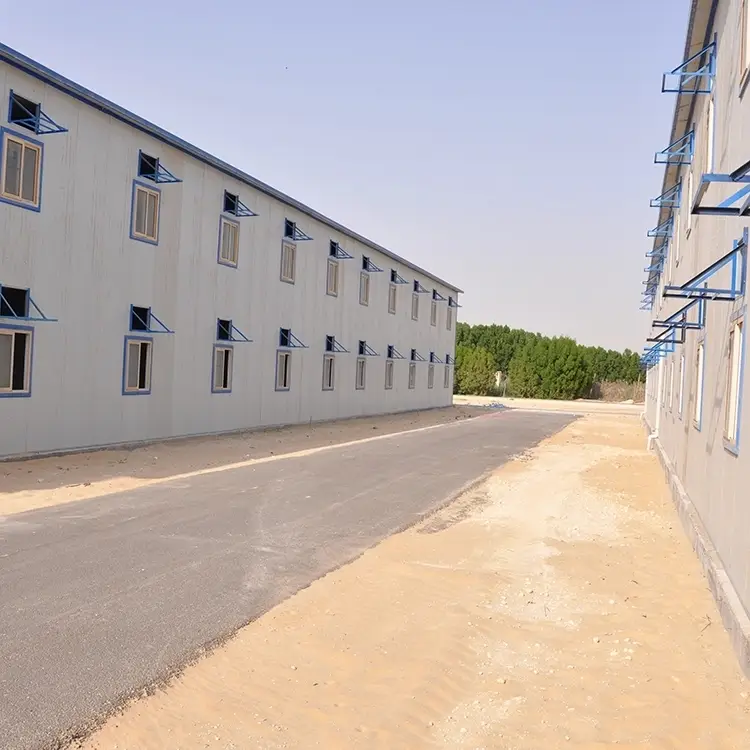

Finished Projects:







Packaging & Shipping

Loading & Transport:

  • Container loading
  • Flat package loading as the pictures show bellow







Our Services

1. Professional design and engineering team:

    Full solution for site camp design. We could make the design for whole camp as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building:

    We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision:

    We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Service Network:






Company Information

Our big company family:







Our company information:



I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated houseFlat Pack container housesteel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001CE and SGS approval.



750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.

73,000 square meters of factory space.

3 production lines for our prefabricated house series.

3 production lines for coantier house series.

2 production lines for our steel structure warehouse/workshop series.

1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.



Workshop and Facility:





Certifications:

CE, BV, SGS, ISO9001:2008 certifications



FAQ

Why Choose Prefabricated house for Site Camp Solution?

 There are many advantages to prefabricated house for site camps including:

1. Speed of construction and camp installation: Allows for the building and the site work to be completed simultaneously, reducing the overall completion schedule, all the Main Structures will be connect with bolts, no welding works. All the wall and roof structure, flooring will be fixed by self-tapping screw or nails, normal carpenter team could make a good job!

2. Economical Solution: Compare to concrete building, prefabricated building will be much more Economical

3. Ability to service remote locations: Assembling a work camp close to the work site reduces travel time which reduces cost.

4. Long time span: Well-built modular worker camps can last for 10, 15 or 20 years or more.

5. Safe and stable, Earthquake resistance: Grade 7, Wind resistance: Grade 11(wind speed≤ 120km/h).

Thanks for your attention! Any more questions, please don't be hesitant to contact me.
Best regards and wish you a nice day!
                                                    (Welcome to our office and factory!)
The product covers a wide range of application areas. This product is lightweight, reducing the hassle of shipping. We can send samples of prefab house for testing. This product is lightweight, reducing the hassle of shipping.
