20ft/40ft low cost container prefabricated residential house or office room for campe

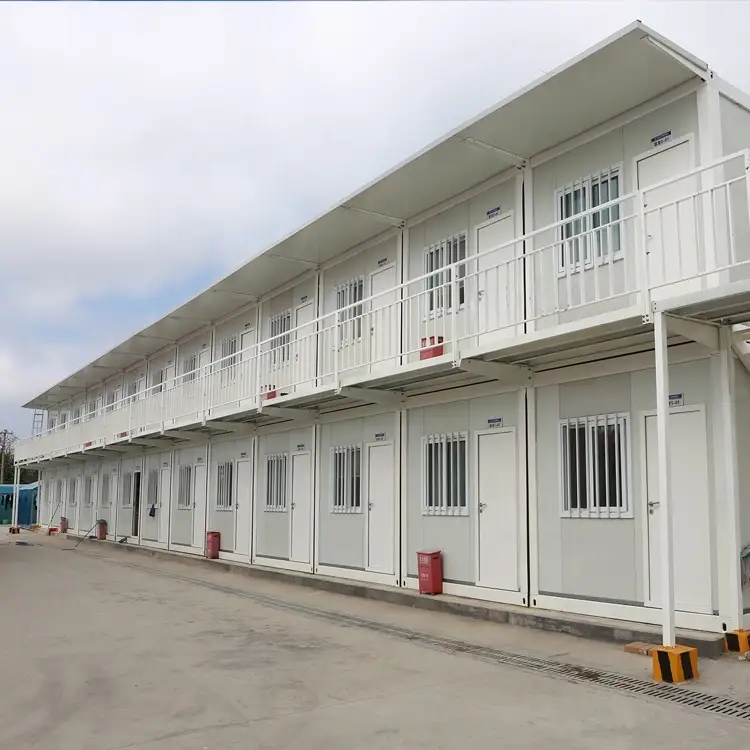

LIDA flat pack container house

Specification

1) 20ft: 6055*2435*2896mm; 40ft: 12192*2435*2896mm

2) Roof Type: Flat roof with organized internal water draining design

3)  Storey: ≤3

Design parameter

1)  Life span: up to 20years

2) Floor Live load: 2.0KN/m2;Roof Live load: 0.5KN/m2;Wind load: 0.6KN/m2

3)  Earthquake-resistance: Grade 8, Fire-proof: Grade 4

Steel Structure System

1) Roof structure:6055*2435*200mm, Main roof frame: thickness=2.5mm, height=180mm, galvanization thickness≥40g/m2, Q235 steel; Roof purlin: C80*40*15*2.0, galvanized, Q235 steel

2) Floor structure:6055*2435*180mm, Main floor frame: thickness 3.25mm, height 160mm, galvanization thickness≥40g/m2, Q235 steel; Floor Purlin:C120x50(30)x12x2.0, galvanized. Q235 steel

3) Corner pillar:210*150*30mm, length=2535mm, thickness=2.75mm, galvanization thickness≥40g/m2. Q235 steel

4) Paint:Epoxy primer & Polyurethane finishing coat, paint film thickness ≥80μm, white color

Wall panel

1) Wall panel:V-1150 type, 75mm Fiber glass sandwich panel with 0.4mm color steel sheet on both sides(white color), insulation density=45 kg/m3

2) Door:Light steel single open door (W850*H2030mm)

3) Window:PVC sliding window, double glass 4mm thickness, with screen and security bar (W800*H1100mm)

Roof &Floor system

1) Roof covering:0.4mm color steel sheet, white color

2) Insulation:100mm thickness Fiber glass with aluminum foil, Density=12kg/m3

3) Ceiling board:V-196 type, 0.4mm Aluminum-zinc color steel sheet, white color

4)PVC flooring:1.8mm thickness plastic floor with glue

    Floor board:18mm thickness fiber cement board

5)  Insulation: 100mm thickness Fiber glass with aluminum foil, Density=12kg/m3

      Bottom covering:0.25mm color steel sheet, Zinc thickness≥40g/m2

Corner pillar

1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.

2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation

Electrical System

1) Industrial plug:power input industrial socket, 32A Honyar brand

2) Light ; AC socket; Socket; Switch

Flashing

1) Long side flashing:Length=5635mm, thickness=1mm, galvanized

2) Short side flashing:Length=2690mm, thickness=1mm, galvanized

Drainage system

Rainspout pipe:Dia. 50mm, UPVC, Length=2600mm

Trim plate

1) Pillar trim plate:Length=2600mm, 0.5mm color steel plate(with fittings & accessories)

2) Ceiling trim plate:Length=5640mm/2630mm, 0.5mm color steel plate(with fittings & accessories)

3) Skirting:Length=5850mm/2850mm, PVC (with fittings & accessories)

Inland transportation:1*40ft HQ container could load 6 sets this house

LIDA Welding/Shipping container house

Welding container

1.5mm corrugated steel sheet, 2.0mm steel sheet, column, steel keel, insulation, floor decking

Type

20ft: W2438*L6058*H2591mm (2896mm is also available)
40ft: W2438*L12192*H2896mm

Ceiling and Wall inside decoration

1) 9mm bamboo-wood fiberboard  2) gypsum board

Door

steel single or double door or PVC/Aluminum glass sliding door

Window

1) PVC sliding (up and down) window 2) Glass curtain wall

Floor

1) 12mm thickness ceramic tiles (600*600mm, 300*300mm)  2) solid wood floor 3) laminated wood floor

Electric units

CE, UL, SAA certificate are available

Sanitary units

CE, UL, Watermark certificate are available

Furniture

Sofa, bed, kitchen cabinet, wardrobe, table, chair are available
