20ft flatpack modular container with a side bathroom

20ft container with a side bathroom.

General technical description for Prefabricated Modular Container House

Technical Parameter:
Size: GP20, GP40 and HP40
Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
You are so welcome to send us inquiries!

Dimensions and Weight

Inner length /external length :5.81m/6.06m

Inner width /external width: 2.188m/2.438m

Inner height/external height:2,410m/2.591m

Weight: 2000kg per unit

Steel framework

Material: steel material Q234, thickness: 3.5mm,for top beam frame. Base beam frame and column.

Surface working: epoxy painting,two bottom and two surface.

Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

Forklift openings: size 100*250mm, distance is 1200mm

Floor

External wainscot: Flat galvanized color steel sheet, 0.5mm thickness

Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.

Warm proof Insulation layer: 75mm rock wool

18mm bamboo plywood

2.0mm PVC floor leather for living rooms floor;

Ceiling

Construction:

Roof exterior layer: 1.2mm steel plate with epoxy painting

Warm proof insulation filling: 75mm rockwool between C section purlins;

Inner wainscot: 8mm OSB board with 12mm PVC decoration board.

Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls

Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.

Construction:

Common room wall: 75mm rockwool 0.4/0.4mm Galvanized

steel on both side , Desity of Rockwool: 120Kg/m3

Galvanize window opening on the wall if needed.

Door

External door: Insulated with opening dimension 950*2100mm, furnished with lock

with 3keys. Inner door: Insulated steel door.

Windows

Window material: PVC window with fly screen. Double glass, 4mm glass.

Electrical fittings option

Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.

Main outlet and input industrial socket with 32A.

3 pcs 16A five hole universal socket.

2 pc double tube fluorescent lamp, 220V,50-60HZ

1 pc Single Switch, Honyar brand, with junction box

1 pc Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings

Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.

Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

Sanitary ware:

Western Close tool: ceramic, with pipes and installation fittings

Urinal: ceramic, with pipes and installation fittings

Wash basin: ceramic, with post, faucet, pipes and installation fittings

Shower head, Shower base, Water mixture

1. Professional design and engineering team: Full solution for site camp design. We could make the design for the whole camp as per your requirement.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are of good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help with the installation supervision, you just need to prepare a team which knows normal construction works will be OK.

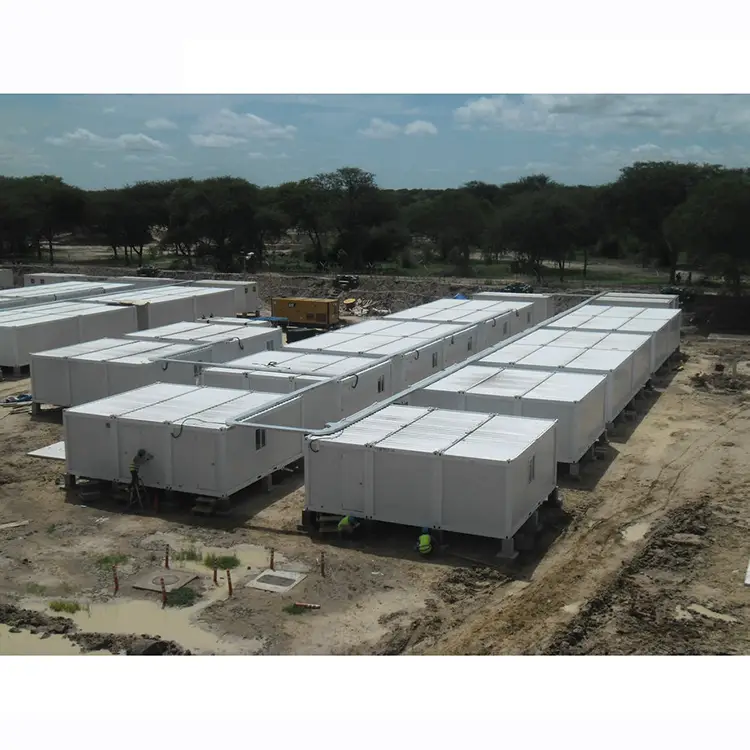

Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:

1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
5) Service life can reach up to 20 - 25 years
6) We can provide the service of installation, supervision and training by extra.
