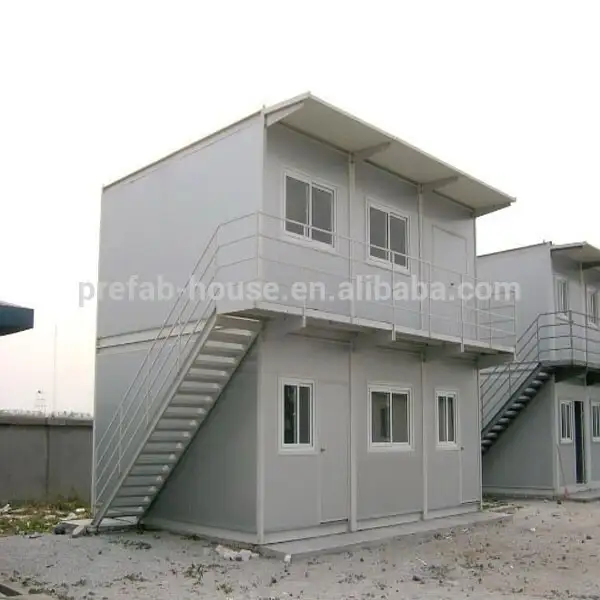

amazing shipping container home

Technical Parameter:
(1).Size: GP20, GP40 and HP40 of shipping container Or Welding container
(2).Wind Resistance: Grade 12
(3).Wall permitted loading: 0.6KN/ m2
(4).Ceiling Permitted live loading: 0.5 KN/m2
(5).Wall Coefficient of thermal conductivity: K=0.442W/mk
(6).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Characters:
(1). Good ability to assemble and disassemble for several times without damage.
(2). Could be lifted, fixed and combined freely.
(3). Heatproof and waterproof.
(4). Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
(5) Service life can reach up to 15 - 20 years
(6) We can provide the service of installation, supervision and training by extra.

Dimensions and Weight
(1).Inner length /external length :5.81m/6.06m
(2).Inner width /external width: 2.188m/2.438m
(3).Inner height/external height:2,410m/2.591m
(4).Weight: 2000kg per unit

Floor
(a)2.0mm PVC floor leather for living rooms floor;

Ceiling

Construction:
(1).Inner wainscot: 8mm OSB board with 12mm PVC decoration board.
(2).Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls
(1) 8mm OSB board with decoration board.

Door
(1).External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys.

(2).Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen. Double glass, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
Main outlet and input industrial socket with 32A.
3 pcs 16A five hole universal socket.
2 pc double tube fluorescent lamp, 220V,50-60HZ
1 pc Single Switch, Honyar brand, with junction box
1 pc Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
(1).Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
(2).Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(3).Sanitary ware:
(a).Western Close tool: ceramic, with pipes and installation fittings
(b).Urinal: ceramic, with pipes and installation fittings
(c).Wash basin: ceramic, with post, faucet, pipes and installation fittings
(d).Shower head, Shower base, Water mixture.

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Why Choose Container for Site Camp Solution?

There are many advantages to modular camp construction for site camps including:

(1).Good ability to assemble and disassemble for several times without damage.

(2).Could be lifted, fixed and combined freely.

(3).Heatproof and waterproof.

(4).Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)

(5).Service life can reach up to 15 - 20 years

(6).We can provide the service of installation, supervision and training by extra.

Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval. Lida Group is a supplier of the series products for the country’s key projects,such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc.
