CE certificated real estate flexible size prefabricated temporary housing

这里可以自定义设置
CE certificated real estate flexible size prefabricated temporary housing
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
LD-P
Use:
Hotel, House, Office, Toilet
Certificated:
CE SGS
Steel column:
C80 C100 C120
Main triangle beam:
C80 C100 C120
Roof panel:
50mm 75mm 100mm
Wall panel:
50mm 75mm 100mm
Floor:
15/18mm plywood +1.5mm PVC floor
prefabricated accommodation cabin:
accommodation cabin
low cost sandwich panel Prefab house:
low cost sandwich panel Prefab house
Well-designed prefab home:
Well-designed prefab home
casa prefabricada house:
mobile homes/casa prefabricada/cheap prefab house
Supply Ability
Supply Ability:
3000 Square Meter/Square Meters per Week temporary housing

CE certificated real estate flexible size prefabricated temporary housing

Product Description

 CE certificated real estate flexible size prefabricated temporary housing

Description:

1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof

2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation

3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts

4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years

Characteristics:

1,Environment protective, no garbage caused

2,Doors, windows, and interior partitions can be flexibly fixed

3,Beautiful appearance, different colors for the wall and roof

4,Cost saving and transportation convenient

5,Anti-rust and normally more than 15 years using lifespan

6,Safe and stable, can stand 8 grade earthquake

Technical parameter of standard prefabricated house:

1,Wind resistance: grade 11 (wind speed≤111.5km/h)

2,Earthquake resistance: grade 7

3,Live load capacity of roofing: 0.5kN/m²

4,External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

5,Second floor load capacity: 150kg/m²

6,Live load of corridor: 2.0kN/m²

7,We can design and produce the house according to customer’s request

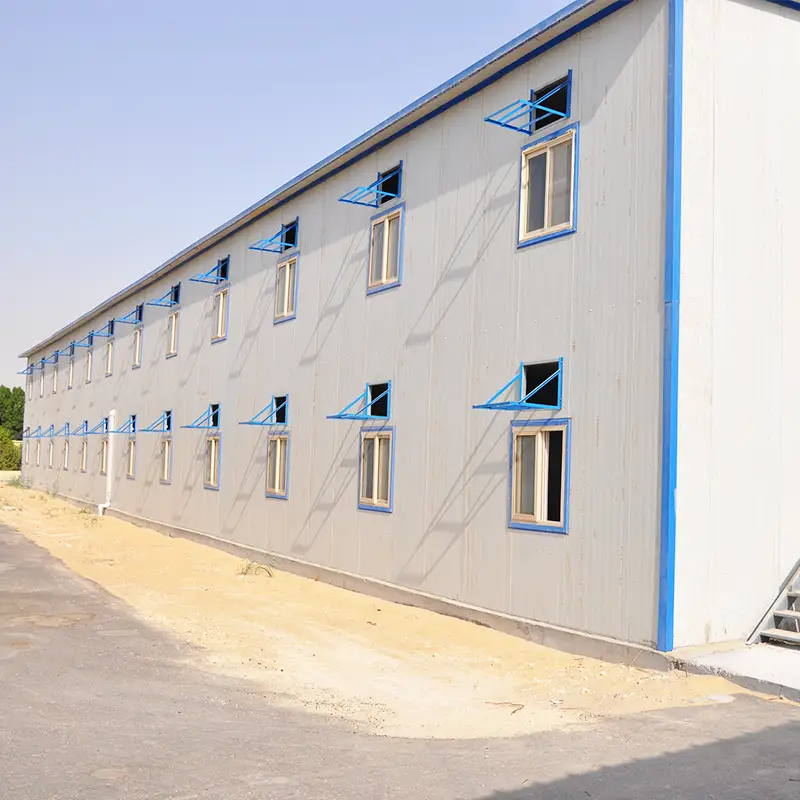

product display

 pefabricated house









1.Steel Structure:

1.1

 Steel  column

120x120x2.5

1.2

Steel structure beam

C120x50x20x2.0

1.3

Roofing Purlin

C140x50x20x2.0

1.4

Wall purlin

C120x50x20x2.0

1.5

Anchor bolts

M16

1.6

Ordinary bolt

4.8S,Galvanized

2.Roof and wall:



2.1

Roofing-PU board
Or Fiber glass board or EPS panel

100mm,40kg, 0.5/0.5mm, heather transfer0.021w/mk, anti press210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer0.028w/mk, anti press180Kpa

2.2

ceiling upon the door

100mm,40kg, 0.5/0.5mm, heather transfer0.021w/mk, anti press210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer0.028w/mk, anti press180Kpa

2.3

Exterior wall-PU board
OR
Rockwool board or EPS panel

100mm,40kg, 0.5/0.5mm, heather transfer0.021w/mk, anti press210Kpa;
OR
100mm,60kg, 0.5/0.5mm, heat transfer0.028w/mk, anti press180Kpa

2.40

edge cover plate

0.5mm steel plate

3. Ceiling and Ground

3.1

gypsum ceiling-for room

600*600*6mm, including frame

3.2

PVC ceiling-for toilet

PVC board

3.3

flooring tile

600*600mm

3.4

Gutter

PVC

3.5

drainpipe

80mm

4. Door and window:

4.1

Exterior Door

light steel door

4.2

Interior Door

Sandwich panel door or light steel door

4.2

 Window

PVC, with double  glass 4+6+4mm

5. Electric +water:

5.1

Electric cable

lighting 2.5mmm2, air conditioner : 4.0mm2

5.2

PVC wire Channel



5.3

light

220V,50HZ, ceiling light

5.5

Switches

with junction box

5.6

 Socket

16A Universal Socket

5.7

water heater

Haier Brand(ES60H-X1(E)), 100L, twin-tubeheater, 3000W, heating temperature 75degree

5.8

Power distribution cabinet

box+switch+earth leakage protective device

5.9

bidet

including accessories

5.10

closestool

including accessories

5.11

washbasin

including the water pipe

5.12

shower

shower base, shower head, water mixture

5.13

water pipe

input and output water pipe

Related Products



Company Information









FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.



Lida Group has advanced manufacturing equipment and automated production lines to guarantee high production efficiency and timely delivery. By virtue of the mature technology, our prefab house is eco-friendly, safe and reliable, and is in line with international quality standards. Lida Group has a guaranteed supply of high-quality raw materials. Besides, we have established long-term cooperative relations with universities and scientific research institutions across the country. We have strong innovation capability, powerful technical strength, and good industry reputation. Our prefab house has stable performance and reliable quality, and has higher cost performance than other similar products.
