Cheap prefabricated easy assemble labor dormitory camp

这里可以自定义设置
Cheap prefabricated easy assemble labor dormitory camp
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Type:
Prefan House
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDP2016
Main Materials:
steel square tube frame
Wall and Roof:
Sandwitch panel
Certificate:
ISO9001,EN1090,BV,
Color:
Customized Color
Keywords:
prefabricated labor dormitory

Packaging & Delivery

Selling Units:
Single item
Single package size:
1108X60X50 cm
Single gross weight:
90.000 kg
Package Type:
Total house be divided to many many different parts. steel frame items and sandwich panel be loaded into shipping containers in bulk, little parts such as anchors,bolts,sealing material and so on will be packed into box or bags.
Picture Example:
package-img
Lead Time :
Quantity(Square Meters) 1 - 2000 2001 - 4000 >4000
Est. Time(days) 30 40 To be negotiated
Video Description

Cheap prefabricated easy assemble labor dormitory camp

Product Description

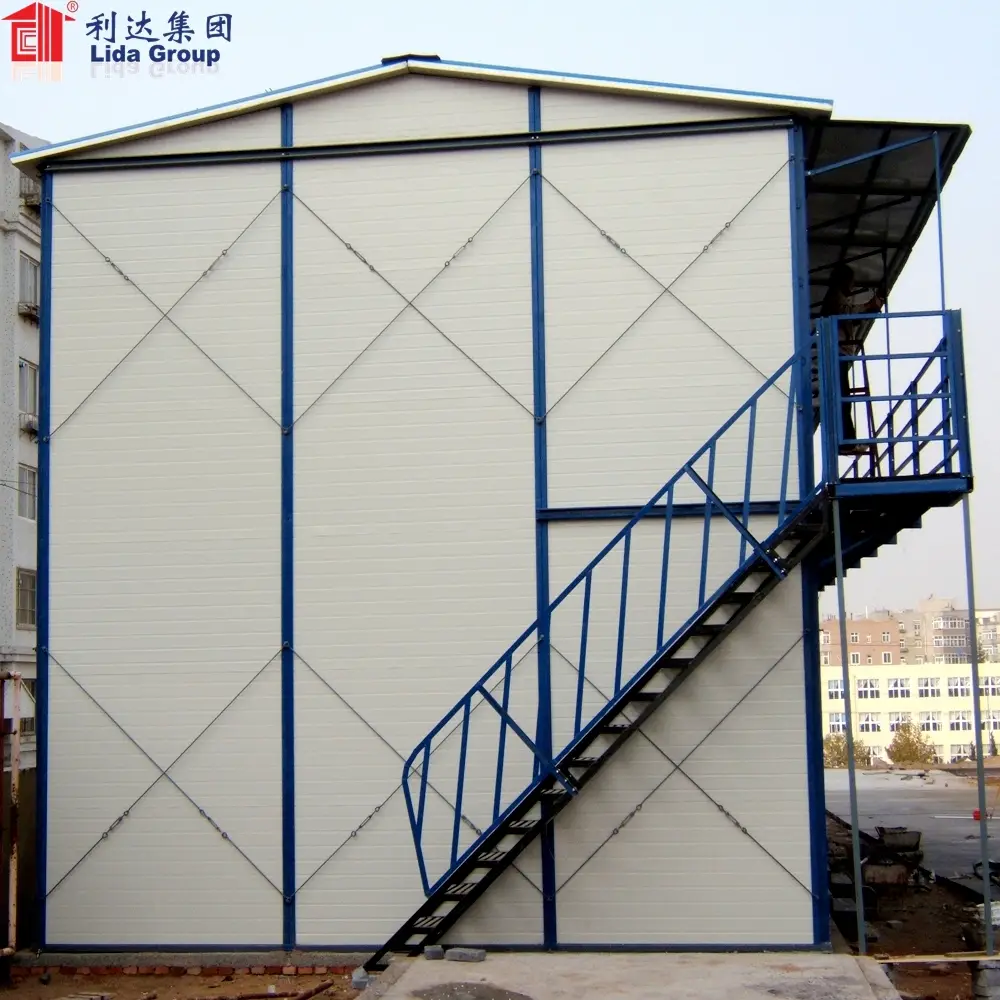

Prefabricated House

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.



Technical Parameter of standard prefabricated house:

1. Wind resistance: Grade 11(wind speed111.5km/h)

2. Earthquake resistance: Grade 7

3. Live load capacity of roofing: 0.5kn/m2

3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

4. First floor load capacity: 150 kg/m2

5. Live load of corridor is 2.0kn/ m2

6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.

7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.

8. We can design and produce the house according to customer’s request.

9. We can provide the service of installation, supervision and training by extra.



No.



ItemSpecification & Remark
1



Steel Structure



Q235 steel (painting)

Square Tube columns, C section steel purlin and  roof truss etc.

2



Roof panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

3



Exterior wall panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

4



Interior wall panel



50mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

5



Door



Sandwich panel door
6



Windows



PVC sliding window
7



Ceiling



6mm Gypsum /
12mm PVC

8



flooring for first floor



18mm Plywood
9



First floor covering



1.5mm PVC floor leather
10



Accessories



0.4mm Galvanized color steel edge cover, self-screws, bolts and so on.
Packaging & Shipping



Our Services

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Items&Project Show



Company Information

 We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the leading manufacturers of the prefabricated house, Flat Packed container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market and the quality has been approved by CE, ISO9001:2000, BV and SGS.









FAQ

Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:



1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
5) Service life more than 20 years
6) We can provide the service of installation, supervision and training by extra.

prefab house is designed carefully by professionals and is manufactured based on high-quality steel. Besides, it is strictly tested by relevant departments before being launched on the market. It is ensured to be in line with national quality standards. Lida Group has a guaranteed supply of high-quality raw materials. Besides, we have established long-term cooperative relations with universities and scientific research institutions across the country. We have strong innovation capability, powerful technical strength, and good industry reputation. Our prefab house has stable performance and reliable quality, and has higher cost performance than other similar products.
