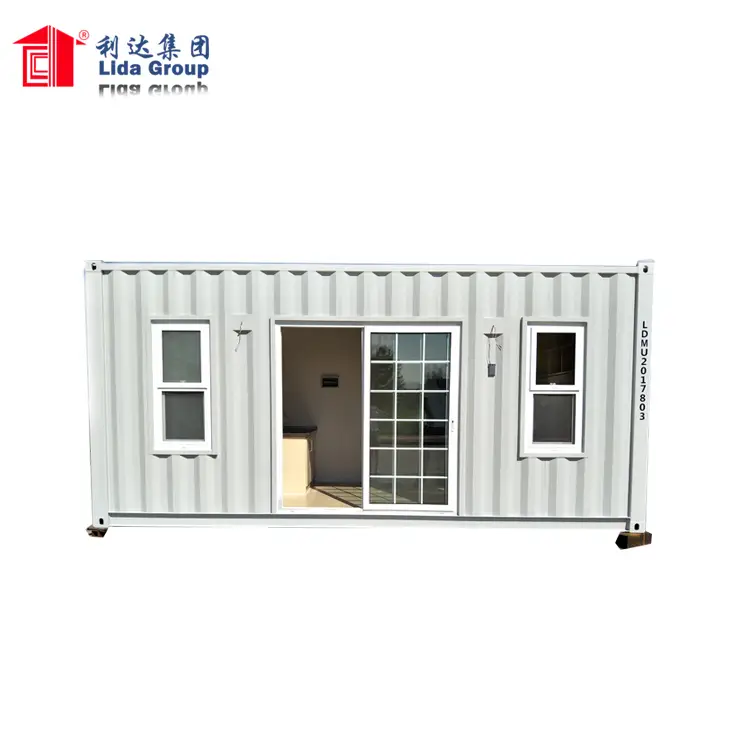

China 20 Foot 3D Model Design Shipping Container House

这里可以自定义设置
China 20 Foot 3D Model Design Shipping Container House
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
Application:
Hotel, office,house,camp,school
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
Use:
Hotel, House, Office, Shop, Toilet, Villa, Warehouse, Workshop,Plant, dormitory
Product Type:
Container Houses
Design Style:
Modern
Product name:
Size:
L6058mXW2.438mX2.896mH
Type:
welding container house
Color:
As your requirment
Window:
Plastic steel
Material:
steel
Door:
PVC door,glass door,steel door
MOQ:
4 sets
Service life:
more than 20 years
Supply Ability
Supply Ability:
40 Unit/Units per Day 20ft one bedroom container house luxury for America
Video Description
Product Description

 Sandwich Panel Prefabricated House

ho















Description of Prefabricated House:

1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof

2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation

3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts

4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years



Speficiations of Prefabricated House



Type With or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

Type two: with steel chassis, the building will be put on concrete blocks

Story One storey or two storey or three storey are available
Frame system Steel  column Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
Steel roof truss C100*40*15*2.0, welding and galvanized
Roof and wall purlin C100*40*15*2.0, galvanized
Cross bracing Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
Chemical bolt M16, chemical bolt
Ordinary bolt 4.8S, galvanized
Steel chassis or 1st floor system Main beam HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
Secondary beam C100*40*15*2.0 galvanized
Floor structure board  18/20mm plywood and fiber cement board
Flooring PVC floor leather and ceramic tiles are available
Wall and Roof system Wall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling system Dry room 600*600*6mm gypsum board,with framework
Wet room 600*600*5mm calcium silicate board, with framework
Door and window system Door Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
Window PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing system Electric units Electric wire, conduit, socket, switch, light, distribution box
Sanitary units Shower, closestool, basin, water pipe



Company Information



Workshop Internal Photo





Lida group has achieved ISO9001:2005 international quality system certification, EU CE certification(EN1090) and passed SGS, TUV and BV inspection.



FAQ



Frequently Asked Questions



Q: Are you factory or trading company?

A: We, Lida Group, have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Also if you have any questions, please contact us freely.

Some of our clients say they are willing to recommend this energy-efficient product to partners. It really contributes to cut electricity costs. This product is able to go through heavy rains or hurricanes. Some of our customers said that it is such versatility in the shape and design which gives phone users more options. This product is able to go through heavy rains or hurricanes.
