Product Description

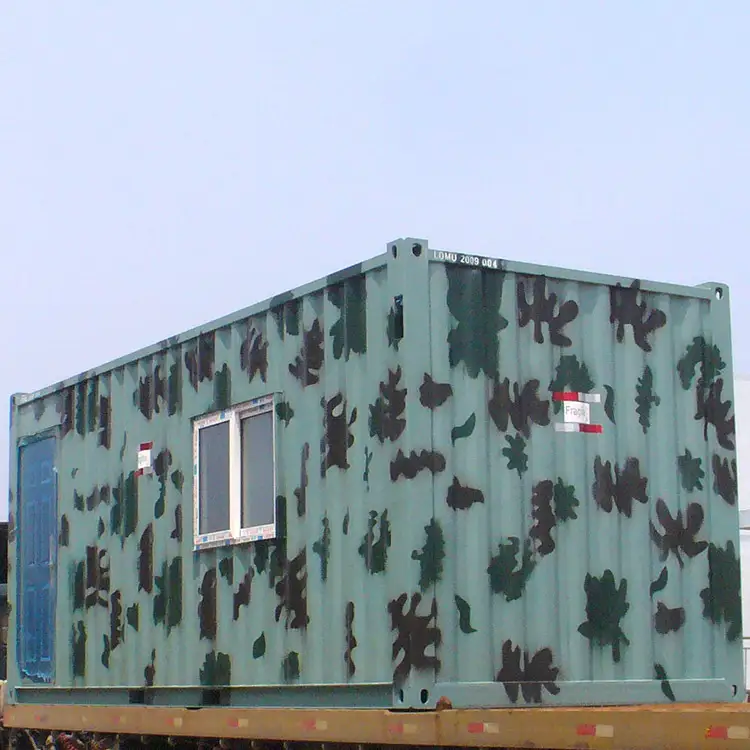

China prefab shipping container home 40 feet luxury house
| China prefab shipping container home 40 feet luxury house | |
| Specification | 1) 20ft: 6055*2435*2896mm |
| 2) 40ft: 12192*2435*2896mm | |
| 3) Roof Type: Flat roof with organized internal water draining design | |
| 4) Storey: ≤3 | |
| Design parameter | 1) Life span: up to 20years |
| 2) Floor Live load: 2.0KN/m2 | |
| 3) Roof Live load: 0.5KN/m2 | |
| 4) Wind load: 0.6KN/m2 | |
| 5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4 | |
| Wall panel | 1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm |
| 2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2 | |
| 3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable | |
| 4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2 | |
| Roof system | 1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel |
| 2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection | |
| 3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable. | |
| 4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2. | |
| 5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers | |
| Corner pillar | 1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B. |
| 2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation | |
| Floor System | 1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement. |
| 2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable. | |
| 3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2. | |
| 4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3 | |
| 5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color | |
| Door & Window | 1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm. |
| 2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm | |
| Electric system | 1) Rated power: 5.0 KW, suggestion external power source ≤3 in series. |
| 2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box. | |
| 3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W. | |
| Painting | 1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm. |
| 2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2) | |
