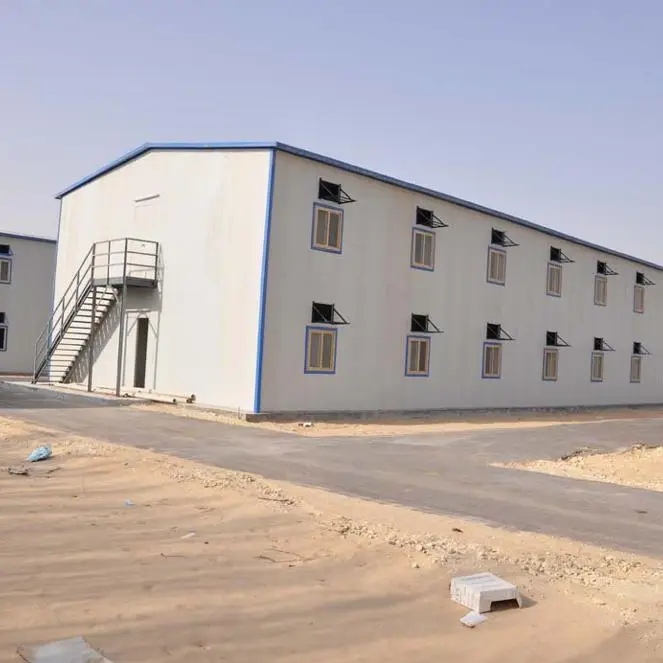

China Quick Installation Ready Made Houses Tiny Houses Prefab House 1

China Quick Installation Ready Made Houses Tiny Houses Prefab House 2

China Quick Installation Ready Made Houses Tiny Houses Prefab House 3

China Quick Installation Ready Made Houses Tiny Houses Prefab House 4

China Quick Installation Ready Made Houses Tiny Houses Prefab House 5

China Quick Installation Ready Made Houses Tiny Houses Prefab House 6

China Quick Installation Ready Made Houses Tiny Houses Prefab House

Inquiry

Write a Review

Overview

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:: Other

Place of Origin:: Shandong, China

Brand Name:: Lida

Model Number:: PH-001

Use:: Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet

Product Type:: portable house

Design Style:: Modern

Keyword:: prefab house

color:: blue & red top / white wall

column:: C section steel/ 2C80

buiding height:: max 3 floors

anti-seismic:: 7 degree

certificate:: CE/ISO

prefab design portable house:: prefab design portable house

Supply Ability

Supply Ability:: 10000 Square Meter/Square Meters per Month

Prefabricated House

On Line Catalogue:

PDF Catalogue: http://www.lidajituan.com/en/upload/2014/1/8182826942.pdf

LGS Villa Catalogue: http://www.lidajituan.com/en/upload/2014/1/1115150923.pdf

Technical Parameter:

Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150kg/m2
6. Live load of corridor is 2.0KN/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Steel Framework:

1,Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting,two primary and two surface.
2, Main triangle Beam: fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.
3, Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
4, Surface working: Galvanized

Floor:

Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor;

Ceiling:

6mm Gypsum board for dry room
12mm PVC ceiling for wet room

Walls:

Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-150mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16Kg/m3 20Kg/m3
Density of Polyurethane: 40Kg/m3

China Quick Installation Ready Made Houses Tiny Houses Prefab House
