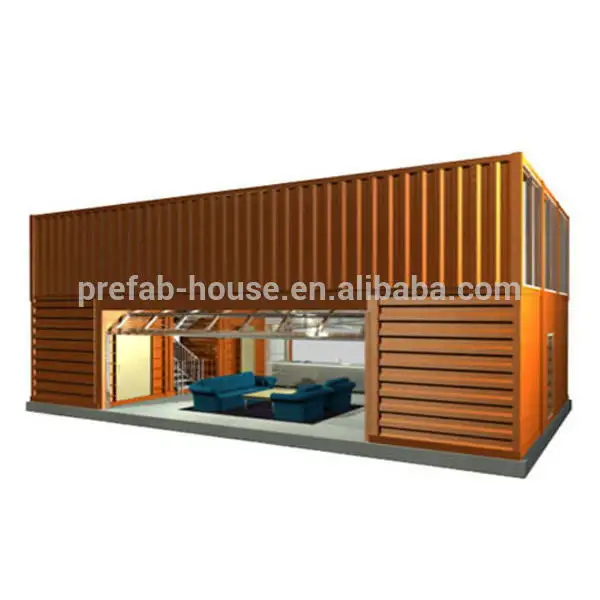

container coffee shop

这里可以自定义设置
container coffee shop
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
ch01
Material:
Sandwich Panel
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant, apartment,campsite,cafe,coffee
COLOR:
CUSTOMIZED
Certification:
SGS, BV, CE, ISO
roof:
sandwich panel
furnishing:
inluded
size:
as request
lead time:
20 days
place of origin:
Qingdao
anti-seismic:
8 grade
Supply Ability
Supply Ability:
1000 Set/Sets per Month

container coffee shop



Description:

Container House is designed and developed according to the standard size of shipping container.It is a growing and more and more popular kind of  modular house building.

Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables the container house to be lifted by the crane in the same manner as a standard shipping container.

It is widely used as Site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room,labor camp,hotel and so on .





Characteristics:



1Easy to assemble and disassemble for several times without damage.

2) Could be lifted, fixed and combined freely.

3) Heatproof and waterproof.

4) Cost saving and convenient transportation (Each 4 container house can be loaded in one 20 ft standard container)

5) Service life can reach up to 10 - 15 years

6) We can provide the service of installation, supervision and training by extra.



Technical Parameter of standard prefabricated house:



1)Wind resistance: Grade 11(wind speed≤111.5km/h)

2)Earthquake resistance: Grade 7

3)fire proof: B2 grade





Materials:



Steel framework



1)Material: Light steel structure, steel material Q235

2)Surface working: sand blasting, epoxy basic painting 55μm, final vinyl acrylic painting 55μm thick

3)Fittings: 8 standard container corner mould fittings ,PVC standard rainwater pipe

4)Forklift openings: size 100*250mm, distance is 1200mm



Floor



1)External wainscot: Flat galvanized color steel sheet, 0.4mm thickness

2)Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.

3)Warm proof insulation layer: 75mm rock wool

4)Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen

1.5mm PVC floor leather for living rooms floor; 1.5mm anti-slip aluminum board for toilet floor.

5)Permitted loading: 2.0KN/m2

6)Coefficient of thermal conductivity: K=1.1W/ m2K



Ceiling



1)Roof exterior layer: 1.2mm stamping steel plate,epoxy painting

2)Warm proof insulation filling: 75mm rock wool between wooden purlins;

3)Inner wainscot: 9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board

4)Permitted live loading: 0.5 KN/m2

5)Coefficient of thermal conductivity: K=0.55W/ m2K

6)Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm



Walls



1)Panel width: 1150mm; panel total thickness: 75mm

2)External layer: Galvanized and painted (29μm) color steel sheet 0.5mm

3)Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.

4)Warm proof insulation filling: 75mm EPS or rock wool or 50mm PU panel

5)Insulation density: EPS is 12kg/ m3;rock wool is 120kg/ m3;PU is 45kg/ m3

6)Permitted loading: 0.6KN/m2

7)Coefficient of thermal conductivity: K=0.442W/mk



Door



External door: sandwich panel door with opening dimension 850*2100mm, furnished  with a cylinder lock with 3keys. Door frame is made of aluminum, 50mm thick EPS insulation foam.



Windows



Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.Or PVC windows with rolling shutter.





Loading & Transport



1.Bulk packing in container loading,1x40HQ can load 5 units 20ft container house.

2.Flat package (4 in 1)loading as the pictures show bellow.



Our Services



1. Designwe could make the design as per client's requirements, to meethe special requirements, also to suit the local climate information, like Wind load, Snow load, Seismic requirements etc.

2. Supervision: we could arrange 1-2engineers to guide the installation as requirements;

3. Drawings:we will provide detailed architectural drawing, construction drawing, foundation drawings etc. to guide the installation;

FAQ

 1.Why Choose Container house

There are many advantages to modular camp construction for site camps including:

(1) Easy to assemble and disassemble for several times without damage.

(2) Could be lifted, moved , and combined freely.

(3) Heatproof and waterproof.

(4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)

2.How could I install the container house?

There are two ways to solve the problem.

(1) We could provide the full services for the whole installation, included send our engineers to your country to help the installation.

(2) If you do not need the construction supervision, we could provide the full services include the installation video, detailed drawings, and guide the installation through network step by step.

3. Why we trust you?

(1) We have already passed the ISO,CE,SGS,BV certification.

(2) We are one of the suppliers for Chinese government key project.

(2) We are one main container house supplier for UN project. We could provide the project pictures and videos for your reference..





Company Informatio

Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, container house, steel villas, and steel structure warehouse in China.

We have specialized in this field for more than 20 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE,BV and SGS certification.

Lida Group is the main supplier of the series products for the Chinese key projects, such as the Olympic Sailing Center, Qingdao bay bridge ,Qingdao Channel Tunnel, etc.





Taking an innovative approach based on scientific research, Lida Group is able to develop prefab house and enhance its performance. This product can be patined with different colors. It has been proved that Lida Group is getting more and more popularity. This product can be patined with different colors.
