Croatia container house
LIDA flat pack container house is ideally suited for construction sites, construction camps and drilling camps, where they will be advantageously turned into offices, living accommodations, changing rooms and toilet facilities.
LIDA flat pack container house are made of natural materials and are almost 100% recyclable. They deliver great environmental benefits (thermal insulation, sound reduction) to present an adaptable, versatile, and sustainable modular solution

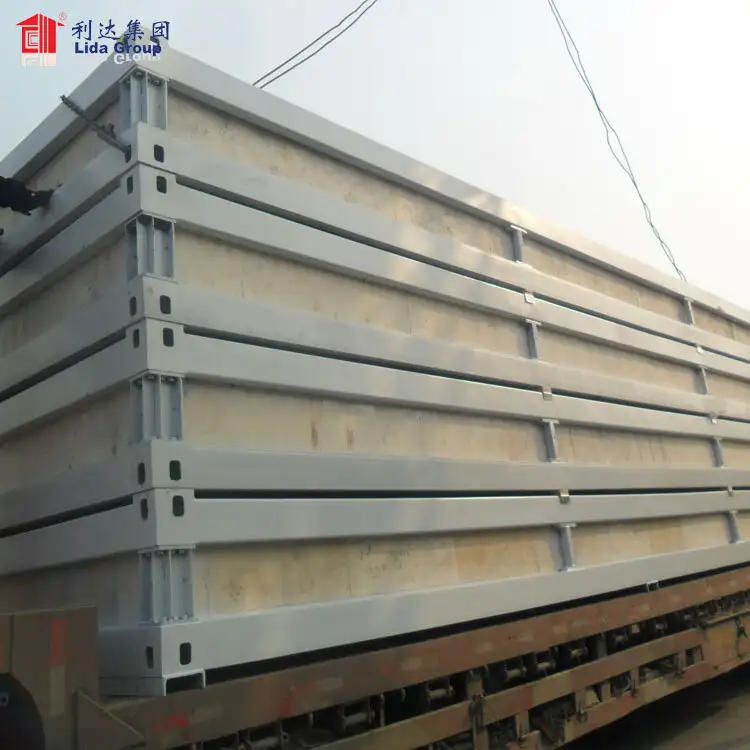

LIDA flat pack container house can be shipped assembled or to keep transport cost to a minimum, supplied flat-packed for on-site installation with just the minimum of tools. LIDA flat pack container house can also be easily disassembled after use and transferred to a new location.
|Specification||1) 20ft: 6055*2435*2896mm|
|2) 40ft: 12192*2435*2896mm|
|3) Roof Type: Flat roof with organized internal water draining design|
|4) Storey: ≤3|
|Design parameter||1) Life span: up to 20years|
|2) Floor Live load: 2.0KN/m2|
|3) Roof Live load: 0.5KN/m2|
|4) Wind load: 0.6KN/m2|
|5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4|
|Wall panel||1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm|
|2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2|
|3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable|
|4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2|
|Roof system||1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel|
|2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection|
|3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.|
|4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.|
|5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers|
|Corner pillar||1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.|
|2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation|
|Floor System||1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.|
|2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable.|
|3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.|
|4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3|
|5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color|
|Door & Window||1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.|
|2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm|
|Electric system||1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.|
|2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.|
|3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.|
|Painting||1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.|
|2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)|
20ft Flat pack container house
40ft Flat pack container house
1) Professional sales team: all staff are bachelor and master, abroad team in Saudi Arabia, Qatar, Dubai, Kuwait, Maldives, Malaysia, Sri lanka, etc., provide the best communication.
2) Professional engineers team: all staff are master and doctor, provide the best engineering and solution.
3) Professional fabrication: all workers are through professional training, provide the quality guarantee products.
4) Professional installation team: supervisors guide installation from 2004 with rich experience.
5) Turnkey is also available for some projects.
Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.
750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.
83000sqm meters of factory space.
5 production lines for our prefabricated house series.
5 production lines for our container house series.
3 production lines for our steel structure warehouse/workshop series
1 production line for our light steel Villa series
Q: Are you factory or trading company?
A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.
Q: How about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
