Custom Steel Structure Long Life Prefabricated House Prices

这里可以自定义设置
Custom Steel Structure Long Life Prefabricated House Prices
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDPF 036
Use:
Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet, labor camp/refugee camp/dormitory/accommodation
Product Type:
Item:
2 floor prefabricated house madagascar, prefabricated school building
Keywords:
prefabricated house madagascar
Frame Structure:
square steel tube or C channel or H-section steel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Service life:
more than 10 years
Fireproof:
2-4 hours
Moveable/relocatable:
avaialble, with or without steel chassis
Steel anti-rust treatment:
painted or galvanized
House size:
customized
Installation:
supervisor guiding installation is available
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month 2 floor prefabricated house

Product Description

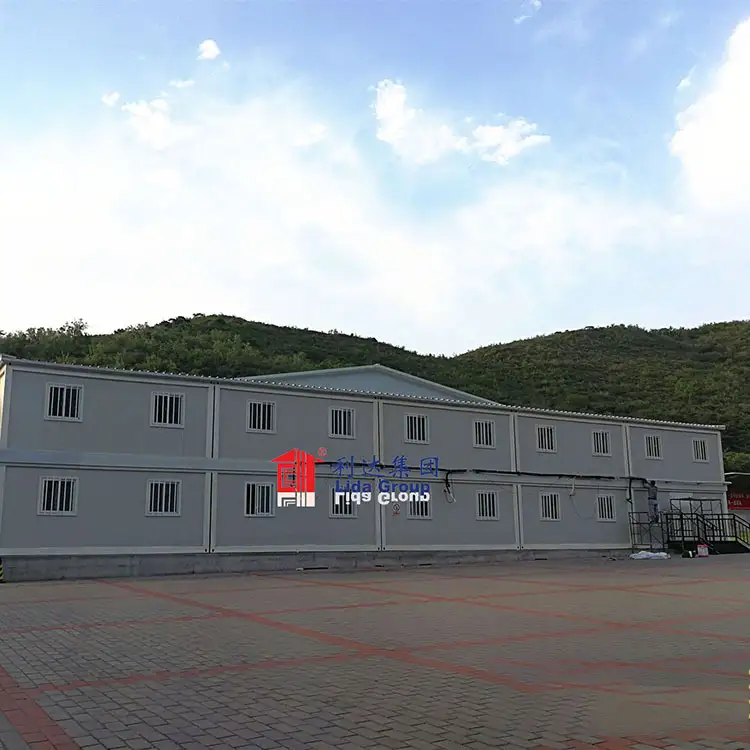

Good price high quality two storeys prefabricated house prefab

Advantages:

1) Size is customized, design according to requirements.

2) Service life is up to 15 years.

3) Cost effective, the average price is from USD 60/sqm to USD 120/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.







TypeWith or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

Type two: with steel chassis, the building will be put on concrete blocks

StoryOne storey or two storey or three storey are available
Frame systemSteel  columnQ235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
Steel roof trussC100*40*15*2.0, welding and galvanized
Roof and wall purlinC100*40*15*2.0, galvanized
Cross bracingQ235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
Chemical boltM16, chemical bolt
Ordinary bolt4.8S, galvanized
Steel chassis or 1st floor systemMain beamHN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
Secondary beamC100*40*15*2.0 galvanized
Floor structure board 18/20mm plywood and fiber cement board
FlooringPVC floor leather and ceramic tiles are available
Wall and Roof systemWall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling systemDry room600*600*6mm gypsum board,with framework
Wet room600*600*5mm calcium silicate board, with framework
Door and window systemDoorFire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
WindowPVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing systemElectric unitsElectric wire, conduit, socket, switch, light, distribution box
Sanitary unitsShower, closestool, basin, water pipe



Related Products

Company Information


FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

One of our buyers says:' this product suits well my project as it has unique design and beautiful lines and luster that keep up with the architectural trends.' It is able to undergo extremely high and cold temperatures. The product provides benefits for people by increasing comfort and well-being and helping to maintain the healthy air quality of buildings. It is able to undergo extremely high and cold temperatures.
