Lida Group China Prefabricated House Supplier | One-stop Solution for Modular House, Container House!     Marketing@lidajituan.com

Labor Camp
Home  > new category  > Labor Camp  >

Design house prefabricated house australia, ready made house prefabricated

这里可以自定义设置
Design house prefabricated house australia, ready made house prefabricated
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDPF 021
Use:
Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet, labor camp/refugee camp/dormitory/accommodation
Item:
Design house prefabricated house australia
Keywords:
ready made house prefabricated
Frame Structure:
square steel tube or C channel or H-section steel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Service life:
more than 10 years
Fireproof:
2-4 hours
Moveable/relocatable:
avaialble, with or without steel chassis
Steel anti-rust treatment:
painted or galvanized
House size:
customized
Installation:
supervisor guiding installation is available
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month design house prefabricated

Design house prefabricated house australia, ready made house prefabricated



Product Description

Brief Description

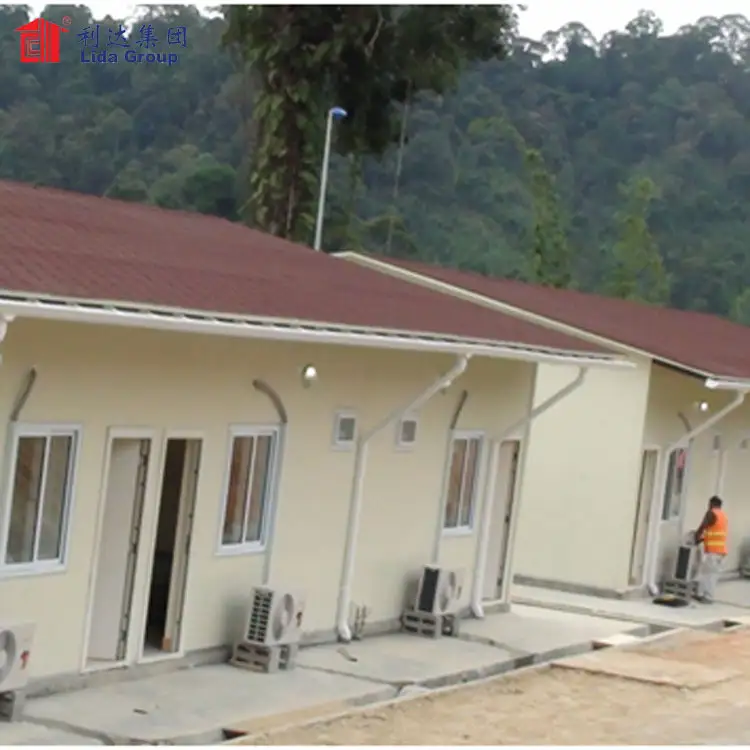

Prefabricated camp house is a Green economy building system, which is formed by the main structure (Square steel tube for column, C channel steel for roof turss and purlin), roof and wall system (using sandwich panel), door and window system. Because of its advantages, like fast production, fast installation, low cost, prefabricated camp house is widely used as labor camp, refugee camp, staff camp, mining camp, dormitory, accommodation house, toilet and shower building, laundry, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office, clinic, guard house, etc..



Component Specification



TypeWith or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

Type two: with steel chassis, the building will be put on concrete blocks

StoryOne storey or two storey or three storey are available
Frame systemSteel  columnQ235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
Steel roof trussC100*40*15*2.0, welding and galvanized
Roof and wall purlinC100*40*15*2.0, galvanized
Cross bracingQ235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
Chemical boltM16, chemical bolt
Ordinary bolt4.8S, galvanized
Steel chassis or 1st floor systemMain beamHN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
Secondary beamC100*40*15*2.0 galvanized
Floor structure board 18/20mm plywood and fiber cement board
FlooringPVC floor leather and ceramic tiles are available
Wall and Roof systemWall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling systemDry room600*600*6mm gypsum board,with framework
Wet room600*600*5mm calcium silicate board, with framework
Door and window systemDoorFire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
WindowPVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing systemElectric unitsElectric wire, conduit, socket, switch, light, distribution box
Sanitary unitsShower, closestool, basin, water pipe



Advantages



1) Size is customized, design according to requirements.

2) Service life is up to 15 years.

3) Cost effective, the average price is from USD 60/sqm to USD 120/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.



Installation

First type-build on concrete strip foundation



Second type-house is with steel chassis, put house on concrete blocks





Packaging & Shipping







Our Services

1) Professional sales team: all staff are bachelor and master, abroad team in Saudi Arabia, Qatar, Dubai, Kuwait, Maldives, Malaysia, Sri lanka, etc., provide the best communication.

2) Professional engineers team: all staff are master and doctor, provide the best solution.

3) Professional fabrication: all workers are through professional training, provide the quality guarantee products.

4) Professional installation team: supervisors guide installation from 2004 with rich experience.

5) Turnkey is also available for some projects.

Company Information

Brief introduction:



Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series



Our social responsibility



Everybody knows there was a big disaster "5-12 earthquake" in SiChuan, China in 2008. Thousands of people are injured, died and lost their homes.


Once the disaster happened, we go to talk with government immediately to express the wishes of providing our support. We confirmed the solution together in the shortest time, and start the work
immediately.



1) Stopped all commercial orders production.
2) 24 hours a day, 7 days a week, all production capacity support for decreasing the disaster damage.
3) Chairman lead 100 man installation team going to the site immediately.



After 3 months hard work, 91000sqm building area, 1626 unit prefab house stand next to the mountain!



The students back to school, the victims of disaster got homes, the smile appear on their face again. A friend in need is a friend indeed, although the physical work is hard, but our hearts are full of joy!







Our Team



Customer Visit





Finished Project









Production line





Certificate







FAQ



Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.





The product is able to provide strong support for the building because it can withstand any kind of weather elements such as a hurricane. This product is known fr its strong seismic resistance. Many buyers commonly think that this product is a good solution for building projects. It helps improve the aesthetics of the buildings. This product is known fr its strong seismic resistance.
