Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
LD-C-1
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet
Product Type:
Product name:
expandable container house container restaurant container pool
Brand:
Lida
Size:
20ft 6.06*2.438*2.591m(L*W*H)/40ft
Place of origin::
Qingdao
Color:
Costomers' Requirements
Wall:
fiberglass wool/ rock wool
Door:
sandwich panel door
Window:
PVC frame 4mm thickness glass
Anti-seismic:
magnitude 8
Certificate:
CE/ISO/BV
Supply Ability
Supply Ability:
800 Set/Sets per Month
Container House

Product Description

LIDA container house includes two types:

The first one is LIDA flat pack container house.
The second one is LIDA Welding/Shipping container house.
1)  LIDA flat pack container house is ideally suited for construction sites, construction camps and drilling camps, where they will be advantageously turned into offices, living accommodations, changing rooms and toilet facilities.
LIDA flat pack container are made of natural materials and are almost 100% recyclable. They deliver great environmental benefits (thermal insulation, sound reduction) to present an adaptable, versatile, and sustainable modular solution. LIDA flat pack container can be shipped assembled or to keep transport cost to a minimum, supplied flat-packed for on-site installation with just the minimum of tools. LIDA flat pack container can also be easily disassembled after use and transferred to a new location.

2)  LIDA Welding/Shipping container house is widely used as Holiday house, Vacation house, Beach house, Hotel, Restaurant, Bar, Club, Coffee shop, etc. There are a lot of choice for outside color and a lot of choice for inside decoration, it can be decorated pretty beautiful. Everything are fixed in factory, can be used directly after arrival at destination.

LIDA flat pack container house



Specification

1) 20ft: 6055*2435*2896mm; 40ft: 12192*2435*2896mm

2) Roof Type: Flat roof with organized internal water draining design

3)  Storey: ≤3



Design parameter

1)  Life span: up to 20years

2) Floor Live load: 2.0KN/m2;Roof Live load: 0.5KN/m2;Wind load: 0.6KN/m2

3)  Earthquake-resistance: Grade 8, Fire-proof: Grade 4













Steel Structure System

1) Roof structure:6055*2435*200mm, Main roof frame: thickness=2.5mm, height=180mm, galvanization thickness≥40g/m2, Q235 steel; Roof purlin: C80*40*15*2.0, galvanized, Q235 steel

2) Floor structure:6055*2435*180mm, Main floor frame: thickness 3.25mm, height 160mm, galvanization thickness≥40g/m2, Q235 steel; Floor Purlin:C120x50(30)x12x2.0, galvanized. Q235 steel

3) Corner pillar:210*150*30mm, length=2535mm, thickness=2.75mm, galvanization thickness≥40g/m2. Q235 steel

4) Paint:Epoxy primer & Polyurethane finishing coat, paint film thickness ≥80μm, white color





Wall panel

1) Wall panel:V-1150 type, 75mm Fiber glass sandwich panel with 0.4mm color steel sheet on both sides(white color), insulation density=45 kg/m3

2) Door:Light steel single open door (W850*H2030mm)

3) Window:PVC sliding window, double glass 4mm thickness, with screen and security bar (W800*H1100mm)











Roof &Floor system

1) Roof covering:0.4mm color steel sheet, white color

2) Insulation:100mm thickness Fiber glass with aluminum foil, Density=12kg/m3

3) Ceiling board:V-196 type, 0.4mm Aluminum-zinc color steel sheet, white color

4)PVC flooring:1.8mm thickness plastic floor with glue

    Floor board:18mm thickness fiber cement board

5)  Insulation: 100mm thickness Fiber glass with aluminum foil, Density=12kg/m3

      Bottom covering:0.25mm color steel sheet, Zinc thickness≥40g/m2





Corner pillar

1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.

2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation



Electrical System

1) Industrial plug:power input industrial socket, 32A Honyar brand

2) Light ; AC socket; Socket; Switch



Flashing

1) Long side flashing:Length=5635mm, thickness=1mm, galvanized

2) Short side flashing:Length=2690mm, thickness=1mm, galvanized

Drainage system

Rainspout pipe:Dia. 50mm, UPVC, Length=2600mm







Trim plate

1) Pillar trim plate:Length=2600mm, 0.5mm color steel plate(with fittings & accessories)

2) Ceiling trim plate:Length=5640mm/2630mm, 0.5mm color steel plate(with fittings & accessories)

3) Skirting:Length=5850mm/2850mm, PVC (with fittings & accessories)

Inland transportation:1*40ft HQ container could load 6 sets this house



LIDA Welding/Shipping container house

Welding container

1.5mm corrugated steel sheet, 2.0mm steel sheet, column, steel keel, insulation, floor decking

Type

20ft: W2438*L6058*H2591mm (2896mm is also available)
40ft: W2438*L12192*H2896mm

Ceiling and Wall inside decoration board

1) 9mm bamboo-wood fiberboard  2) gypsum board

Door

steel single or double door or PVC/Aluminum glass sliding door

Window

1) PVC sliding (up and down) window 2) Glass curtain wall

Floor

1) 12mm thickness ceramic tiles (600*600mm, 300*300mm)  2) solid wood floor 3) laminated wood floor

Electric units

CE, UL, SAA certificate are available

Sanitary units

CE, UL, Watermark certificate are available

Furniture

Sofa, bed, kitchen cabinet, wardrobe, table, chair are available

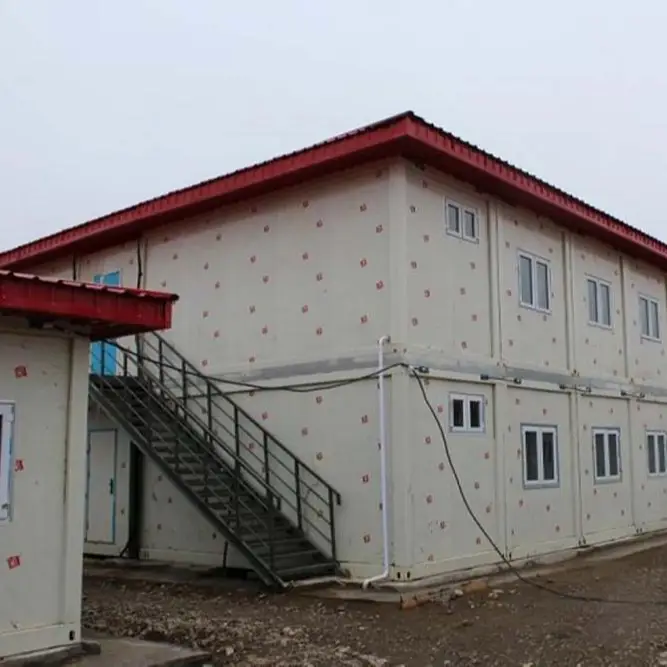

Container House Project Display
:







Packaging & Shipping





Our Services

1. Professional design and engineering team:

    Full solution for site camp design. We could make the design for whole camp as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building:

    We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision:

    We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Company Information

Our big company family:







Our company information:



I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated houseFlat Pack container housesteel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001CE and SGS approval.



Workshop and Facility:



Certifications:

CE, BV, SGS, ISO9001:2008 certifications



FAQ

Why Choose Lida Container for Site Camp Solution?



There are many advantages to modular camp construction for site camps including:



1, Good ability to assemble and disassemble for several times without damage.

2, Could be lifted, fixed and combined freely.

3, Heatproof and waterproof.

4, Cost saving and convenient transportation (Each 4 container house can be loaded as one standard shipping container)

5,Service life can reach up to 15 - 20 years

6,We can provide the service of installation, supervision and training by extra.

Thanks for your attention ! Any more questions, please feel free to contact me.
Best regards and wish you a nice day!
                                                (Welcome to our office and factory!)


Lida Group has strong manufacturing strength to meet the global market demand of prefab house. This product requires little maintenance, which helps save labor costs. Lida Group is here to provide the best experience for prefab house consumers by offering quality products, services and outstanding support. This product requires little maintenance, which helps save labor costs.
