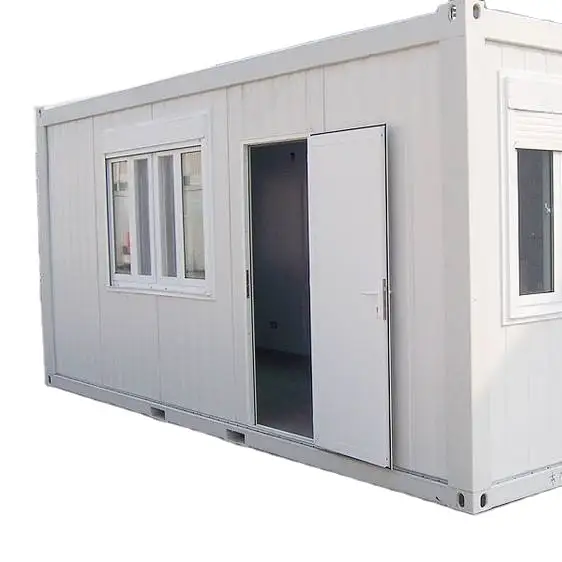

Factory Ready Made Modular Prefabricated Container House
Main advantages of Flat Pack Container House
* Environment Friendly, 100% steel frame material is recycle.
* Durable, the main steel frame is same as shipping container house, with high load and long life span.
* Free of installation, all the work finished off site, can be used direct when it arrived.
* Movable and easy to transport, it can be shipped as SOC container.
* Good appearance, can be designed and decorated arbitrary.
| 1 | Steel Structure System | Roof structure | 6055*2435*200mm, Main roof frame: thikcness=2.5mm, height=180mm, galvanization thickness≥40g/m2, Q235 steel; Roof purlin: C80*40*15*2.0, galvanized, Q235 steel | ||
| Floor structure | 6055*2435*180mm, Main floor frame: thikcness 3.25mm, height 160mm, galvanization thickness≥40g/m2, Q235 steel; Floor purlin:C120x50(30)x12x2.0, galvanized. Q235 steel | ||||
| Corner pillar | 210*150*30mm, length=2535mm, thickness=2.75mm, galvanization thickness≥40g/m2. Q235 steel | ||||
| Paint | Epoxy primer & Polyurethane finishing coat, paint film thickness ≥80μm, white color | ||||
| 2 | Roof System | Roof covering | 0.4mm color steel sheet, white color | ||
| Insulation | 100mm thickness Fiber glass with aluminum foil, Density=12kg/m3 | ||||
| Ceiling board | V-196 type, 0.4mm Aluminum-zinc color steel sheet, white color | ||||
| 3 | Floor System | PVC flooring | 1.8mm thickness plastic floor with glue | ||
| Floor board | 18mm thickness fiber cement board | ||||
| Insulation | 100mm thickness Fiber glass with aluminum foil, Density=12kg/m3 | ||||
| Bottom covering | 0.25mm color steel sheet, Zinc thickness≥40g/m2 | ||||
| 4 | Wall System | Wall panel | V-1150 type, 75mm Fiber glass sandwich panel with 0.4mm color steel sheet on both sides(white color), insulation density=45 kg/m3 | ||
| Door | Light steel single open door (W850*H2030mm) | ||||
| Window | plastic steel sliding window, double glass 4mm thickness, with screen and security bar (W800*H1100mm) | ||||
| 5 | Electrical System | Power distribution cabinet | 4 circuit, with leakage protector (Main power supply cable 6m2) | ||
| Industrial plug | power input industrial socket, 32A Honyar brand | ||||
| Light | LED light, 36W | ||||
| AC socket | 16A, Honyar brand | ||||
| Socket | 13A, Honyar brand | ||||
| Switch | 10A, Honyar brand | ||||
| 6 | Flashing | Long side flashing | Length=5635mm, thickness=1mm, galvanized | ||
| Short side flashing | Length=2135mm, thickness=1mm, galvanized | ||||
| 7 | Drainage system | Rainspout pipe | Dia. 50mm, UPVC, Length=2600mm | ||
| 8 | Trim plate | Pillar trim plate | Length=2600mm, 0.5mm color steel plate(with fittings & accessories) | ||
| Ceiling trim plate | Length=5640mm/2135mm, 0.5mm color steel plate(with fittings & accessories) | ||||
| Skirting | Length=5850mm/2300mm, PVC (with fittings & accessories) | ||||
| 9 | Inland transportation | 1*40ft HQ container could load 6sets this house or Flat packed 4 pcs as one 20ft SOC container | |||
Flat Pack Container House Structure
Project Photos
1) all materials are flat pack, packed as rectangular box.
2) Loading way one: 4 units can be packed as one SOC (shipper's own container), transport by truck directly.
3) Loading way two: 6 units 20ft container house can be loaded in 1*40ft HQ shipping container
Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.
750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.
83000sqm meters of factory space.
5 production lines for our prefabricated house series.
5 production lines for our container house series.
3 production lines for our steel structure warehouse/workshop series
1 production line for our light steel Villa series
ISO9001, CE and SGS Certificate
Frequently Asked Questions
Q: Are you factory or trading company?
A: We, Lida Group, have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.
Q: How about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Also if you have any questions, please contact us freely.
We welcome you to contact us for more information of
prefab house and look forward to working with you !
