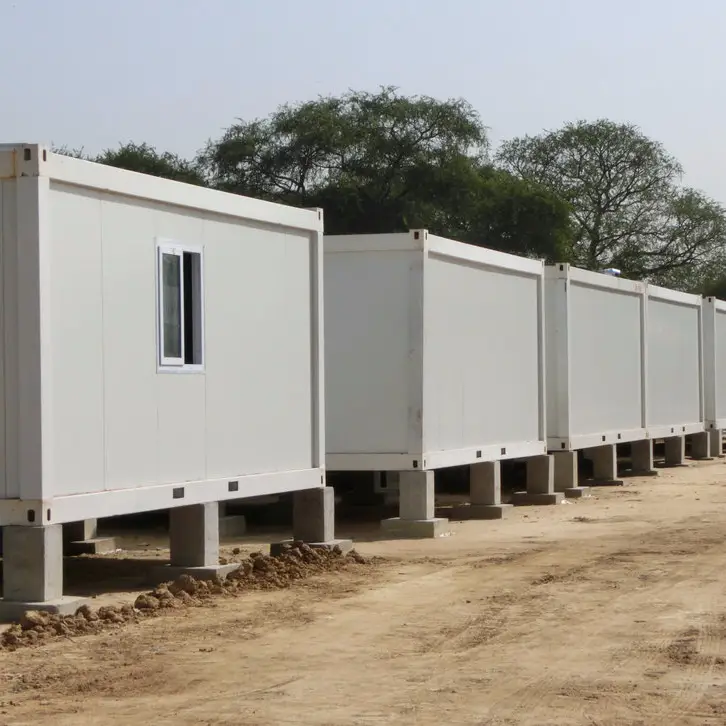

Flat pack container house camp in South Sudan for the UN

  Flat pack container house camp in South Sudan for the UN

Container house specifications

1. Container cabin house can be moved as a whole
2. 4 houses flat packed to save sea freight.
3. Beautiful appearance

ISO CONTAINERIZED HOUSING

 High- quality flat pack housing containers

High volume production

Standard and non-standard customization

ISO Container profile

 Container Diagram

Adjoined units

Exterior Colors

ISO Container Sample configurations

Inside view:

Specifications for ISO containerized housing

In General

The following description refers to the specification and design of standard cabins.

Our cabins match ISO-norm dimensions and have therefore many advantages.

Construction is based on a stable frame with interchangeable wall panels.

The individual containers can be either stood side-by side or be stacked on top of each other up to the three floors. Individual sizes of space can be achieved by removing outer wall panels and fitting partitions.

Standard dimensions (mm) and weights(kgs)

1. Base

Frame construction: 3mm steel profiles, 4 welded (containers) corner casting with dimensions according to ISO norms

Floor: 20mm plywood, water resistant(v100). Free of formaldehyde(E1)

12mm laminated flooring above plywood floor

Floor base: 0.5mm thick galvanized steel sheets.

Loading bearing capacity: 3Kn/M2 working load

Insulation: 100mm EPS panel/ fiber glass panel

Sub floor: 0.5mm thickness galvanized steel sheets

K-Value; 0.2 W/m2K

1. Roof

Frame construction: 3mm color rolled, welded steel profiles

4 corner casts, welded in accordance with ISO norms

Steel structure perlins

Loading bearing capacity: 3500N/m2

Roof cover: 0.5mm thick, galvanized steel sheet

Insulation: 50mm -120mm mineral wool

         50mm-120mm EPS

        50mm-120mm PU slabs

Ceiling: Decoration PVC ceiling

K-Value 0.18W/m2K

1. Corner posts

Profiles: cold rolled 4.0mm steel profiles

Fitting: the four corner posts are fitting with the base frame and the roof with bolts. In this manner the module pack containers are transported in packages

1. Roof panles and wall panles

1)EPS corrugated and flat sandwich panel

Thickness available: 50mm,60mm 75mm 100mm 150mm 200mm

Performance

Thermal conductivity(R-value) 0.02-0.044 W/mk

R-value(w/mk)

50mm   75mm   100mm 150mm 200mm

0.044     0.038   0.035     0.032   0.03

2.sound insulatin(R db)

50mm   75mm 100mm 150mm

20     21.5   23    26

3. water absorption V/V 24hr 30%

4. Fire resistance( Oxygen index) B3 Grade

5. Density: 14kg/m3-20kg/m3

2)PU corrugated and flat sandwich panel

Thickness available: 50mm 75mm 100mm 150mm

Performance:

1. R-value(w/mk)

50mm 75mm 100mm 150mm

0.03   0.028   0.026   0.022

2. sound insulation R DB

50mm   75mm   100mm 150mm

40     44     48     56

3.. water absorption V/V 24hr 2%(almost water proof)

4. Fire resistance: B1 Grade (Oxygen index: 50%) better than EPS

5. Density: 30KG/M3-40KG/M3

4) Surface preservations: All steel profiles will be fully abrasive shot-blasted and coated with primer prior to assembling. All sheet metals will be hot-dipped&zinc galvanized

5)Painting&coating

All steel profiles will be hot-dipped&zinc galvanized

Epoxy zinc primer: min 40 microns

Mineral wool coating: min 50microns

Total coating: D.F.T:Min902microns

All zinc galvanized sheet metal are PVC overlaid in standard colors

6) windows

PVC window or aluminum alloy window

Sliding or swing are both OK

Will be equipped with electrical window blind

Note: All the windows will be installed directly on the wall panels in advance in our factory. There is no need for you to install the windows. Once you erect the wall panel, the window is already pre-installed.

7) Doors

Aluminum alloy door

Metal door

Sandwich PVC door

Sewing

Note: All the windows will be installed directly on the wall panels in advance in our factory. There is no need for you to install the windows. Once you erect the wall panels, the window is already pre-installed.

8) Handling

With fork lift

With crane: the angle between the rope and the horizontal line must be a minimum of 50

Due to construction and design, handling with spreader is not allowed.

9) Electrical system

Note: we install all the electrical wires, sockets and switches inside the structure and panels in advance in our factory. There is no need for you to do any electrical works. Just connect several plugs, then whole electrical system works.

Each indoor distribution box can be wired for 110v/50hz to 220v/50hz for your specification needs. All trailers come pre-wired with the outlet types you request and an external power connection for quick installation.

Interior Distribution panel box examples
