Container house is designed and developed according to the standard size of shipping container. It is of heatproof and waterproof. It is widely used as office, meeting room, dormitory, shop, booth, toilet, storage, kitchen, shower room and so on.

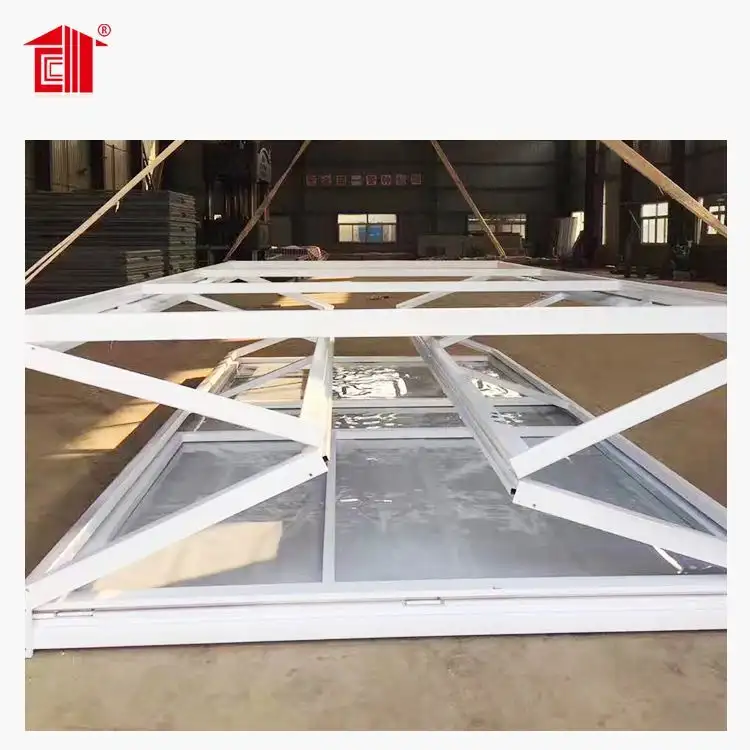

Lida folding container house (foldable container house) is designed to meet the quick installation purpose in some emergency projects. One unit of folding container house can be installed within 3 minutes by 2 workers.

It is widely used as Site office, Disaster relief materials reserve, emergency shelter house, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room, and so on. Light material without overload, easy to pack and transport.

Lida folding container house (foldable container house)can be assembled and disassembled more than 10 times, and the service life is more than 15 years.

DESIGN DETAILS

Our expert team will advise you the best turnkey solution based on your specific requirement for the camp buildings, location of the camp, staff quantity and the budget expectation.

Comprehensive camp renderings

Integrated camp floor plan

ADVANTAGES

Advantages of Lida Integrated Camp

Size is customized, design according to requirements.

Service life is up to 25 years.

Cost effective, the average price is from USD 50/sqm to USD 120/sqm.

Fast construction. From production to installation, it only needs several months.

Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.

Our 28 years’ experience in integrated camp building supply allows us to offer a complete one –stop integrated camp solution.

flat pack container house type

Flat pack container house is made by steel frame structure, which adopts cold- form galvanized steel. Structure is consists of three modular parts: roofing frame, corner column and floor frame.

Each modular part is manufactured at the factory and assembled on construction site. With one single container house as basic unit, it can be combined horizontally or vertically in different form like building blocks.

Flat pack container house can be stacked in three storeys with flexible in space layout and multiple function, and can be used in different application fields.

CONTAINER HOUSE FORM INFORMATION

We can offer turnkey operation for your site that includes planning&designing, material processing, installation and other construction material supply.

Specification	1) 20ft: 605524352896mm
	2) 40ft: 1219224352896mm
	3) Roof Type: Flat roof with organized internal water draining design
	4) Storey: ≤3
Design parameter	1) Life span: up to 20years
	2) Floor Live load: 2.0KN/m2
	3) Roof Live load: 0.5KN/m2
	4) Wind load: 0.6KN/m2
	5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
Wall panel	1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm
	2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2
	3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
	4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2
Roof system	1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C804015*2.0, galvanized. Q235B steel
	2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection
	3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
	4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.
	5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
Corner pillar	1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.
Corner pillar	2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation
Floor System	1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C1204015*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.
	2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability: gradeA, nonflammable.
	3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.
	4) Floor board: 18mm thickness fiber cement board, Fire-proof: gradeB1. Density≥1.3g/cm3
	5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color
Door & Window	1) Insulated light steel door: Entrance door is W850H2030mm, Toilet door is W700H2030mm.
Door & Window	2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800H1100mm(for 2.4meter's container), W1130H1100mm(for 3 meter's container), Toilet window: W800*H500mm
Electric system	1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.
	2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.
	3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.
Painting	1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.
Painting	2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)
