High Performance Venlo Polycarbonate Greenhouse with Complete Systems

这里可以自定义设置
High Performance Venlo Polycarbonate Greenhouse with Complete Systems
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, Cross Categories Consolidation
Application:
Warehouse, Workshop
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDS
Main frame:
Q345B,H/I section beam
Certificate:
CE EN1090,BV,SGS,ISO9001
Insulation:
50mm,75mm,100mm
Wall and roof:
sandwich panel or corrugated sheet
Max clear span:
36m
Max Life Time:
more than 50 years
Keywords:
Light Steel Structure
Supply Ability
Supply Ability:
500 Ton/Tons per Month



Company Information
 High Performance Venlo Polycarbonate Greenhouse with Complete Systems

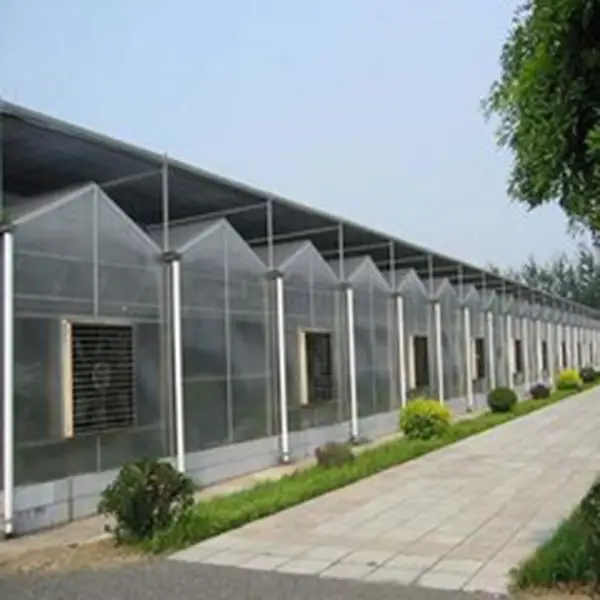

Venlo greenhouse is the most well known type of greenhouse among professional growers over the world. It is designed with Dutch technology. This design has proven to be suitable for all crops in most climate conditions




GREENHOUSE SPECIFICATIONS


HUIJING VENLO POLYCARBONATE GREENHOUSE
Basic Parameters Wind Load 0.5KN/m²
Snow Load 0.3KN/m²
Greenhouse constant load 15kg/m²
Maximum drainage capacity 140mm/h
Specifications Span Width 8m, 9.6m, 10.8m, 12.0m or customized
Column (Pillar) Spacing 4.0m, 6.0m, 8.0m or customized
Gutter Height 3.0m - 6.0m or customized
Frame Structure Hot dip galvanized steel
Covering Material 6mm, 8mm, 10mm double layer hollow polycarbonate sheet
Optional systems Ventilation System  Shading System
Cooling System  Heating System
Irrigation & Fertilizing System  Seedbed System
Hydroponics System Lighting system
Automatic Control System Other customized equipment
We will make design proposal as customers specific requirements.



GREENHOUSE SYSTEMS & EQUIPMENT

1. Frame Structure

Hot dip galvanized steel frame has excellent performance of high strength, strong resistance to wind and snow, and good anti-corrosion. The quality is guaranteed for 20 years.





2. Covering Material
Polycarbonate sheet: 6mm/8mm/10mm thickness, double layer hollow, anti-UV, anti-drip, good light transmittance performance, good thermal insulation performance, excellent strength, rigidity, hardness, toughness and crack resistance, quality assurance for 10 years.




3. Ventilation System
Roofing & Wall Ventilation






4. Shading System
(1) Outside Shading System: The main function of the system is to cool and shade in the summer, so that the sunlight diffuses into the greenhouse to ensure that the crop is protected from glare of the sun. Because it blocks a large amount of light, it effectively reduces the accumulation of heat inside the greenhouse, which generally reduces the greenhouse temperature by 4 °C to 6 °C.

(2) Inside Shading and Insulation System: When the inside shading net is closed, two separate spaces are formed in the greenhouse, which can effectively prevent the formation of mist and dripping in the greenhouse. In the winter and night, the inside shading net can effectively prevent the heat inside the greenhouse from overflowing through radiation or heat exchange, thus reducing energy consumption and reducing greenhouse operating costs.





5. Cooling System

Cooling pad + Exaust fans: The cooling is achieved by the principle of evaporation and cooling of water. The special wet cooling pad can ensure that the water evenly wets the entire wet curtain wall. When the air penetrates the wet curtain medium, it exchanges heat with the water vapor on the surface of the wet medium to achieve humidification and cooling of the air.




6. Heating System

Optional:(1) Coal-fired or gas-fired boiler + Spiral finned tube
(2) Coal-fired or gas-fired boiler + heating fans
(3) Electric heating fans



8. Soilless Cultivation System
Hydroponics System, Sustrate cultivation system




Our cerficated








Contact us





The product is able to provide strong support for the building because it can withstand any kind of weather elements such as a hurricane. It is able to undergo extremely high and cold temperatures. One of our customers said that this product has added uniqueness to his building projects and helped improve the appearance of buildings. It is able to undergo extremely high and cold temperatures.
