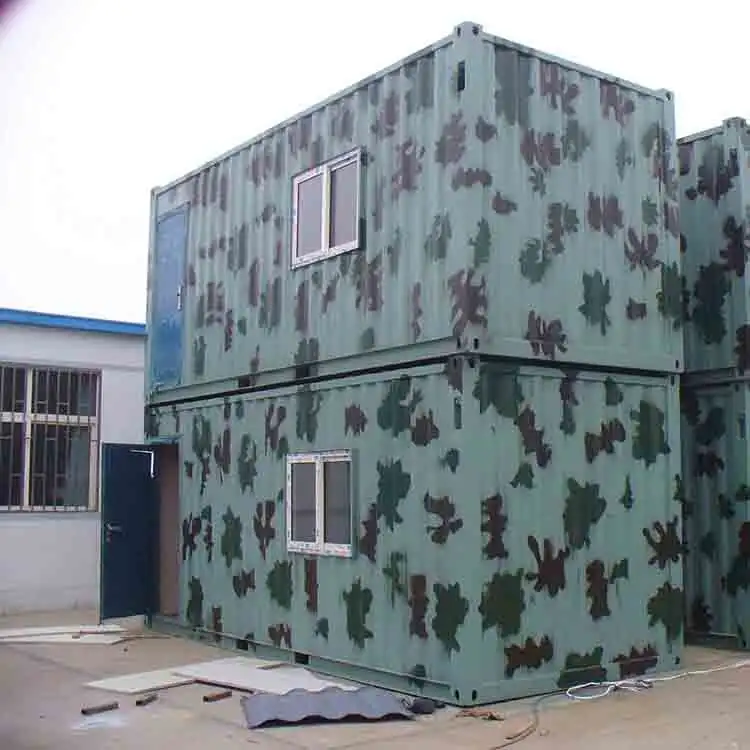

High quality china factory direct prefabricated container building 1

High quality china factory direct prefabricated container building 2

High quality china factory direct prefabricated container building 3

High quality china factory direct prefabricated container building 4

High quality china factory direct prefabricated container building 5

High quality china factory direct prefabricated container building 6

High quality china factory direct prefabricated container building

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LIDA

Model Number:: LD-C036

Use:: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant, modular building

Item:: Prefab container house, shipping container house, container home

Keywords:: prefabricated container building

Size:: ISO standard 20ft, 40ft are available

Storey:: 1 or 2 or 3 storey are available

Type:: flat pack container and shipping container

Loading:: SOC or loaded in 40ft HQ shipping container

Service life:: flat pack is 20 years, shipping container is 50 years

Fireproof:: resistant 3-4 hours

Waterproof:: new technology to provide good waterproof performance

Installation:: supervisor guiding, installation video are available

Supply Ability

Supply Ability:: 800 Unit/Units per Month container home

Product Description

High quality china factory direct prefabricated container building

High quality china factory direct prefabricated container building
Specification	1) 20ft: 605524352896mm
	2) 40ft: 1219224352896mm
	3) Roof Type: Flat roof with organized internal water draining design
	4) Storey: ≤3
Design parameter	1) Life span: up to 20years
	2) Floor Live load: 2.0KN/m2
	3) Roof Live load: 0.5KN/m2
	4) Wind load: 0.6KN/m2
	5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
Wall panel	1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm
	2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2
	3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
	4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2
Roof system	1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C804015*2.0, galvanized. Q235B steel
	2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection
	3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
	4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.
	5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
Corner pillar	1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.
Corner pillar	2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation
Floor System	1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C1204015*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.
	2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable.
	3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.
	4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3
	5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color
Door & Window	1) Insulated light steel door: Entrance door is W850H2030mm, Toilet door is W700H2030mm.
Door & Window	2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800H1100mm(for 2.4meter's container), W1130H1100mm(for 3 meter's container), Toilet window: W800*H500mm
Electric system	1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.
	2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.
	3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.
Painting	1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.
Painting	2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)
