Lida Group China Prefabricated House Supplier | One-stop Solution for Modular House, Container House! Marketing@lidajituan.com

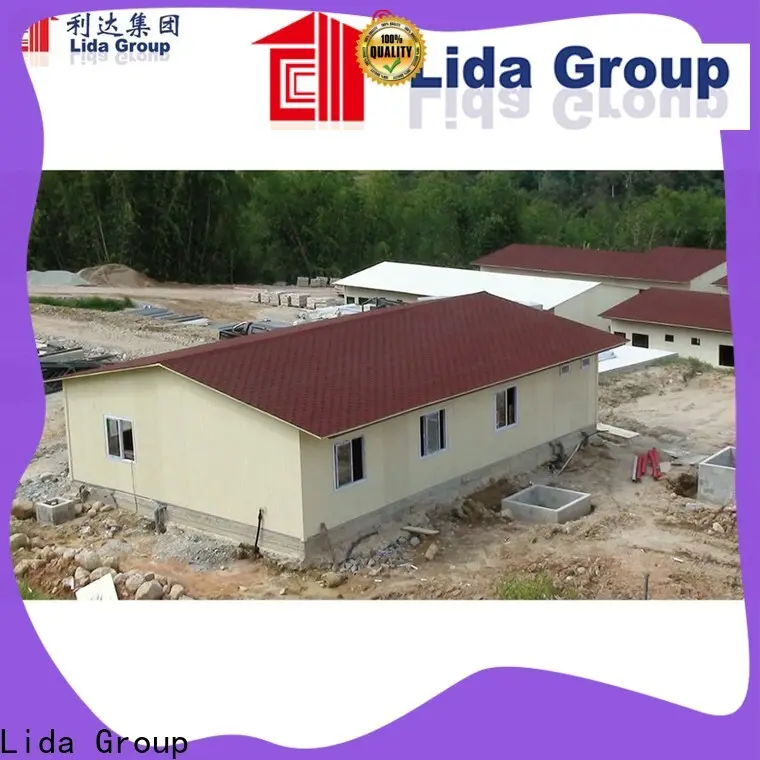

prefabricated accommodation building
1. Advantages:
(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6).Safe and stable, can stand 8 grade earthquake.
2. Detailed Dates for Specifications(standard prefabricated house):
(1). Wind resistance: Grade 11(wind speed≤ 120km/h)
(2). Earthquake resistance: Grade 7
(3). Live load capacity of roofing: 0.6kn/m2
(4). External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
(5). Second Floor Load Capacity: 150 kg/m2
(6). Live load of corridor is 2.0kn/ m2
(7).Wall permitted loading: 0.6KN/ m2
(8).Ceiling Permitted live loading: 0.5 KN/m2
(9).Wall Coefficient of thermal conductivity: K=0.442W/m2k
(10).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
3. Material List for Prefabricated Hosue:
Weifang Henglida Steel Structure Co., Ltd | |
Material List For Prefabricated House | |
1. Main Steel Frame | |
Steel column | Fabricated by Q235 or Q345 Steel, 80*80 or 100*100 or 120*120 or 150*150 Square Tube, alkyd paiting, two primary painting, two finish painting. |
Triangular Steel structure roof | Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting. |
Roof Purlin | Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting. |
Ordinary bolt | 4.8S, Galvanized |
2. Roof and Wall | |
Roof Panel | A: Insulated Steel Sandwich Panel wall
|
Wall Panel | A: Insulated Steel Sandwich Panel wall
|
Edge Cover | 0.4mm galvanized color steel , angle Alu. |
Fasteners & Accessoreis | Nails\glue ect |
3. Ceiling&Flooring | |
Ceiling | 6mm gypsum board,with steel keel |
Plywood | 18mm film faced plywood |
Floor feather | 1.5mm PVC floor leather |
Door and window | |
Door | (1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. (2) Inner door: Single open door. Insulated steel door. |
Window | 4mm glass PVC window witn flying screem |
4. Electrical System | |
Electric Cable | (1) Three diferent color. (2) Lighting: 2.5m m2. (3) Air condition: 4.0mm2. (4) BV cable, solid core. |
PVC Wire Channel | PVC wire channel |
Lights | Double tube fluorescent lamp, 220V,50-60HZ |
Switches | Single Switch, with junction box |
Socket | 16A five hole univesal socket. |
Power Distribution Cabinet | Box+breakers+earth leakage protective device |
5. Water&Plumbing system(choose) | |
Water drain pipe | (1) PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years. (2) Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC |
Sanitary ware | (1) Western Close tool: ceramic, with pipes and installation fittings (2) Urinal: ceramic, with pipes and installation fittings (3) Wash basin: ceramic, with post, faucet, pipes and installation fittings (4) Shower head, Shower base, Water mixture |
6. Plumbing System and Rain Water Drainage System as per building design |
4. Standard Drawing :
5. Main Material Pictures:
6. Roof and Wall Material Pictures:
7. Other Accessories:
8. Packing and Shipping:
9. Finished Oversea Projects:
(1) 27280 M2 labor camp---Saudi Arabia
(2) 18000 M2 site office---Saudi Arabia
(3) 50000 M2 composite camp---Sudan
(4) 22 M2 temporary house---1000 sets---Philippines
(5) 60 M2 prefabricated dormitory---2000 sets---Indonesia
(6) 157 M2 prefabricated site office---36 sets---Malaysia
(7) 4170 M2 labor domitory---Algeria
(8) 20ft&40ft container house for U N project---Sudan
10. Company Information:
Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval. Lida Group is a supplier of the series products for the country’s key projects, such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc.
11. Project Show:
12. FAQ
(1). Why Choose Our Prefabricated House for Camp Solution?
A. Good ability to assemble and disassemble for several times without damage.
B. Could be lifted, fixed and combined freely.
C. Heatproof and waterproof.
D. Service life can reach up to 10 - 20 years
(2). After we paid for them, how could I instal the house?
There are two ways to solve the problem.
A. We could provide the full services for the whole installation, included send our engineers to your country to help the installation.
B. If you do not need the construction supervision, we could provide the full services include the installation video, detailed drawings, and guide the installation through network step by step.
(3). Why we trust you?
A. We have already passed the ISO,CE,SGS,BV certification.
B. We are one of the suppliers for country's key project.
C. We have already provided the camp project for UN project. We could provide the project pictures and videos.
Our 21 year experiences could provide you the best services and support for different kinds of project
Welcome to visit our factory and head office!
We welcome you to contact us for more information of
prefab house and look forward to working with you !
