Lida Group container house inside factory used as office, meeting room, dormitory, shop
1. The new type of container house inside designed by our engineers is very ingenious and practical. This product requires little maintenance, which helps save labor costs
2. Lida Group is known as producing high quality container house inside with competitive price. Its appearance makes it compatible with the surrounding area
3. This product stands out for its flexibility. It has the ability to bear a lot of flexural forces and pressure during its working life without losing its strength and elasticity property. Thanks to its modular design, this product is easy to install
4. This product has the desired comfort. With the sound tactile properties, its fabrics can greatly reduce the effects of mechanical forces such as pressure and friction. This product is lightweight, reducing the hassle of shipping

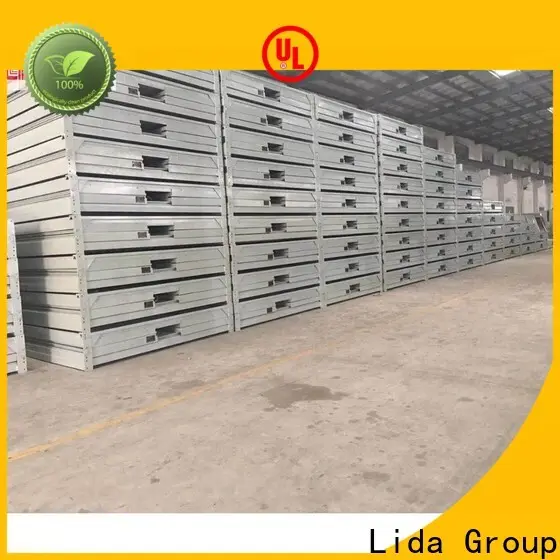

20ft Folding container with Open space 1 door 2 windows.
Easy installation: 10 minutes one unit.
| A | Item | Description | |||
| 1 | Steel Structure System | Roof structure | pcs | 4.00 | hot roll galvanized steel thickness 2.5mm;with four corners;cross beam thickness=1.8mm, painting |
| Floor structure | pcs | 4.00 | hot roll galvanized steel thickness 2.5mm;cross beathicness=1.9mm,painting | ||
| Corner pillar | pcs | 4.00 | hot roll galvanized steel thickness 2.5mm | ||
| Paint | kg | 14.00 | 18-20um | ||
| 2 | Roof System | Roof covering | m | 18.00 | thickness 0.7mm galvanized,white |
| Insulation | set | 1.00 | silica-rock composite plate 4mm+50mm+4mm | ||
| 3 | Floor System | PVC flooring | set | 1.00 | PVC |
| Floor board | pcs | 5.00 | Cement calcium silicate board,18mmthickness | ||
| Bottom covering | set | 4.00 | Advanced polyurethane foam sealing | ||
| 4 | Floor System | Wall panel | m | 50.00 | A2 silica rock composite board,50mmthickness,0.4mm steel sheet |
| Door | set | 1.00 | 1980mm*890mm,Q235 | ||
| Window | pcs | 2.00 | Casement window,dimension 1000mm*950mm*50mm,Tempered glass 5mm thickness | ||
| 5 | Electrical System | Power distribution | set | 1.00 | 3 circuits,with plug |
| Industrial plug | pcs | 1.00 | 32A | ||
| Light | pcs | 2.00 | Ceiling light | ||
| AC socket | pcs | 1.00 | 32A | ||
| Socket | pcs | 5.00 | 16A | ||
| Switch | pcs | 1.00 | |||
| 6 | Top waterproof | Polyurethane is filled around, top surface is self-rivet steel link, butyl rubber layer is sealed, butyl rubber aluminum foil seal | |||
1. Professional design and engineering team: Full solution for site camp design. We could make the design for the whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are of good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help with the installation supervision, you just need to prepare a team which knows normal construction works will be OK.
Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:
1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
5) Service life can reach up to 20 - 25 years
6) We can provide the service of installation, supervision and training by extra.
PDF Catalogue: http://www.lidajituan.com/en/upload/2014/1/8182826942.pdf
LGS Villa Catalogue: http://www.lidajituan.com/en/upload/2014/1/1115150923.pdf
Our big family:
Service | Engineering Design, Manufacture Fabrication, Procurement for turkey euipments and Site Installation |
Our proposal according to customer's drawing or requirement; (size by length/width/height and Load information wind speed, snow load), Foundation calculation and drawing. Engineering drawing, Architect drawing, Installation drawing will be provided. | |
Design software: Auto CAD,PKPM,MTS, Sechchup, Tarch, Tekla Structures(Xsteel)V12.0.etc | |
Packing | Flatpack |
Load into 40HQ |
