Lida Group modern panelized homes Suppliers for staff accommodation
- Type:
-
Prefan House
- Place of Origin:
-
Shandong, China
- Brand Name:
-
LIDA
- Model Number:
-
LDP2016
- Main Materials:
-
steel square tube frame
- Wall and Roof:
-
Sandwitch panel
- Certificate:
-
ISO9001,EN1090,BV,
- Color:
-
Customized Color
- Keywords:
-
prefabricated labor dormitory
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1108X60X50 cm
- Single gross weight:
- 90.000 kg
- Package Type:
- Total house be divided to many many different parts. steel frame items and sandwich panel be loaded into shipping containers in bulk, little parts such as anchors,bolts,sealing material and so on will be packed into box or bags.
- Picture Example:
-
- Lead Time :
-
Quantity(Square Meters) 1 - 2000 2001 - 4000 >4000 Est. Time(days) 30 40 To be negotiated
Cheap prefabricated easy assemble labor dormitory camp

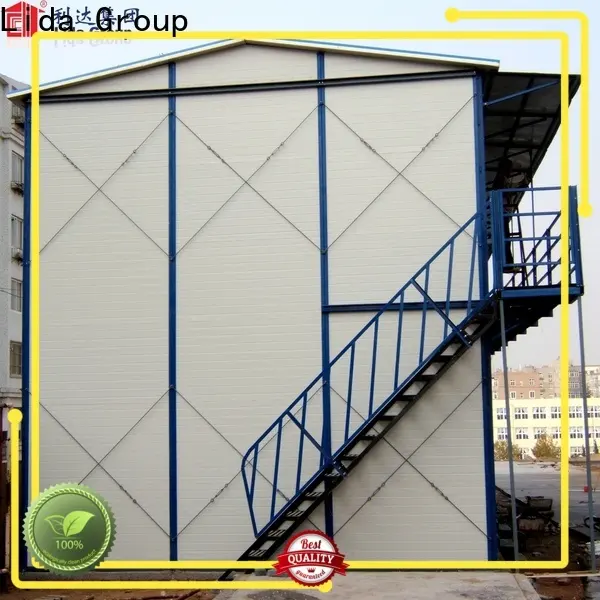

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.
Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤111.5km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.5kn/m2
3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
4. First floor load capacity: 150 kg/m2
5. Live load of corridor is 2.0kn/ m2
6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.
7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.
8. We can design and produce the house according to customer’s request.
9. We can provide the service of installation, supervision and training by extra.
No.
| Item | Specification & Remark |
| 1 |
Steel Structure
| Q235 steel (painting) Square Tube columns, C section steel purlin and roof truss etc. |
| 2 |
Roof panel
| 75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3 (or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.) |
| 3 |
Exterior wall panel
| 75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3 (or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.) |
| 4 |
Interior wall panel
| 50mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3 (or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.) |
| 5 |
Door
| Sandwich panel door |
| 6 |
Windows
| PVC sliding window |
| 7 |
Ceiling
| 6mm Gypsum / |
| 8 |
flooring for first floor
| 18mm Plywood |
| 9 |
First floor covering
| 1.5mm PVC floor leather |
| 10 |
Accessories
| 0.4mm Galvanized color steel edge cover, self-screws, bolts and so on. |
1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the leading manufacturers of the prefabricated house, Flat Packed container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market and the quality has been approved by CE, ISO9001:2000, BV and SGS.
Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:
1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
5) Service life more than 20 years
6) We can provide the service of installation, supervision and training by extra.
We welcome you to contact us for more information of
prefab house and look forward to working with you !
