Lida Group New small metal buildings for sale manufacturers for green house 1
Lida Group New small metal buildings for sale manufacturers for green house 1

Lida Group New small metal buildings for sale manufacturers for green house

Inquiry

Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Place of Origin:
Shandong, China
Brand Name:
Lida Group
Model Number:
LD-05
Low cost:
FOB USD35 to USD70/square meter according to customer's request.
Long term service life::
more than 50 years
steel structural warehouse Wide span::
The max span clear distance is 36m, without middle columns.
Other characteristics:
earthquake resistance
Other characteristics::
environmental protection, stable structure,
Other characteristics2:
water proofing, and energy saving.
Supply Ability
Supply Ability:
500 Ton/Tons per Month



Company Information

 About us:

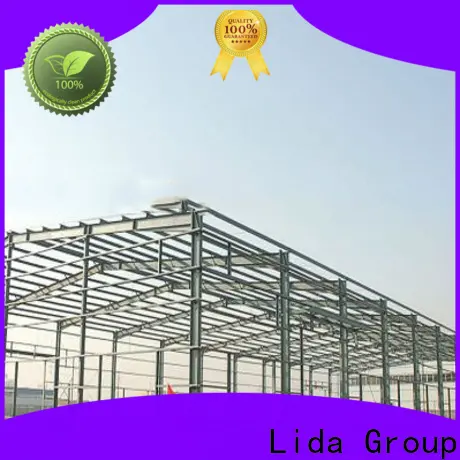

Lida Light steel structure building (pre-engineering building) is a new type of building structure system. The building structure system is formed by the main framework through linking up the H section, C section, Z section or U section steel components. Maintenance system uses different kinds of panels as wall and roof together with other components such as windows and doors. Lida Steel structure building has the advantages of wide span, high strength, light weight, low cost, temperature protection, energy saving, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc. Lida light steel structure building is widely used in large factories, warehouses, workshops, bridges, stadiums and other buildings.

Lida Group New small metal buildings for sale manufacturers for green house 2

Lida Group New small metal buildings for sale manufacturers for green house 4





Product Description

 Main parts of the steel structure workshop:

Light steel structural Main Steel Frame

H section steel

Q345 steel 8mm/10mm



Lida Group New small metal buildings for sale manufacturers for green house 6

Cross Support

Φ20, Steel Q235, Process and Painting

Belt Bar

Φ89*3,Steel Q235 Process and Painting

Small Brace

Φ12,Steel Q235 Process and Painting

Ordinary Bolt

Galvanized Bolt

Roof

Purlin

C160*60*2.5,Steel Q235, painting and Galvanized

  Lida Group New small metal buildings for sale manufacturers for green house 8

Out-roof Panel

Sandwich Panel or corrugated steel plate

Transparent lighting panel

6mmthick PVC

Accessories

Glass glue, self-tapping screw etc.

Edge Cover

Made of color steel sheet thickness 0.5mm

Gutter

Made of steel sheet thickness 0.8mm

Rainspout

Φ110PVC

Wall

Purlin

C160*60*2.5,Steel Q235, Paint

Lida Group New small metal buildings for sale manufacturers for green house 10

Wall

sandwich panel or corrugated steel plate

Accessories

Glass Cement, Self-tapping Screw etc.

Edge Cover

Made of color steel sheet thickness 0.5mm

Axial fan

Axial Fan





 Door for workshop

rolling shutter door

 Lida Group New small metal buildings for sale manufacturers for green house 12



Window



PVC/alu/steel window

 Lida Group New small metal buildings for sale manufacturers for green house 14

Crane of steel structural warehouse

Crane in workshop

With or without crane in 5 tons to 20 tons

 Lida Group New small metal buildings for sale manufacturers for green house 16



Materials:



1. The main frame of light steel structure warehouse(columns and beams) is made of welded H-style steel.



2. The columns of steel structure warehouse are connected with the foundation by pre-embedding anchor bolt.



3. The beams and columns, beams and beams are connected with high intensity bolts.



4. The envelop construction net is made of cold form C-style purlins.



5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.



6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and so on.



 Lida Group New small metal buildings for sale manufacturers for green house 18Lida Group New small metal buildings for sale manufacturers for green house 20




Our light steel structural warehouse project in the foreign countries:

Lida Group New small metal buildings for sale manufacturers for green house 22





Packaging & Shipping



 Lida Group New small metal buildings for sale manufacturers for green house 24Lida Group New small metal buildings for sale manufacturers for green house 26Lida Group New small metal buildings for sale manufacturers for green house 28Lida Group New small metal buildings for sale manufacturers for green house 30

The product provides benefits for people by increasing comfort and well-being and helping to maintain the healthy air quality of buildings. Its stainless steel materials can be reused after dismounted. The product is able to provide strong support for the building because it can withstand any kind of weather elements such as a hurricane. Its stainless steel materials can be reused after dismounted.
