Company Advantages
1. materials ensure steel structure shed get high performance. Constructed from environmentally friendly materials, the product can be recycled
2. The product has a low environmental impact through its entire lifecycle. It does not produce any radioactive substance that will do harm to both people and the environment. This product is not prone to the effects of white ants
3. The product features strong impact strength. When it is subjected to the impact, it can undergo some deformation without causing a rupture. This product requires little maintenance, which helps save labor costs
4. The product is well known for its acoustic property. It can reduce the speed of particles carrying sound waves in the air to absorb sound. It is strong enough and can stand up to 100/km per hour strong wind
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, Cross Categories Consolidation
Application:
Warehouse, Workshop
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDS
Main frame:
Q345B,H/I section beam
Certificate:
CE EN1090,BV,SGS,ISO9001
Insulation:
50mm,75mm,100mm
Wall and roof:
sandwich panel or corrugated sheet
Max clear span:
36m
Max Life Time:
more than 50 years
Keywords:
Supply Ability
Supply Ability:
500 Ton/Tons per Month

27 years experience multi-story steel structure warehouse, welded steel structure building



Lida Group steel structure shed Suppliers for workshop 2

Product Description



I. Description:

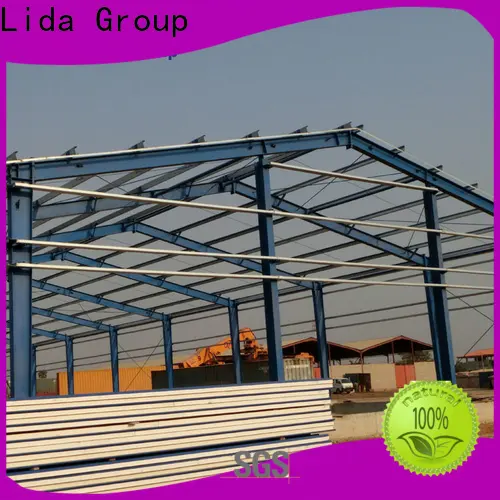

Lida Light steel structure building is a new type of building structure system, The building structure system is formed by the main steel framework through linking up H section, C section, Z section or U section steel components. Maintenance system uses different kinds of panels as wall and roof together with other components such as windows and doors.
Lida light steel structure building is widely used in large factories, warehouses, workshops, bridges, stadiums and other buildings.

II. Characteristics:

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

III. Main parts of the steel structure building:

   Light steel structural

   Main Steel Frame

H section steel

Q345 steel 8mm/10mm

Galvanized or Painting

Cross Support

Φ20, Steel Q235,

Galvanized

Belt Bar

Φ89*3, Steel Q235

Galvanized

Small Brace

Φ12,Steel Q235

Galvanized

Ordinary Bolt Galvanized Bolt

roof

Purlin

C160*60*2,Steel Q235,

 Galvanized

Out-roof Panel

Sandwich Panel or

corrugated steel sheet

FRP daylighting board

thickness 1.2mm

Accessories

Glass glue,

self-tapping screw etc.

Edge Cover

Made of color steel sheet

thickness 0.5mm

Gutter

Made of steel sheet

thickness 0.8mm

Rainspout

Φ110 PVC
wall

Purlin

C160*60*2.5,

Steel Q235, Galvanized

Wall

sandwich panel or

corrugated steel sheet

Accessories

Glass glue,

Self-tapping Screw etc.

Edge Cover

Made of color steel sheet

thickness 0.4mm

Axial fan Axial Fan
Door

sliding door or Rolling shutter door

Window PVC or Aluminium alloy
Crane With or without crane in 5 tons to 20 tons

Our excellent design team will design warehouse metal for you. If you give the following information, we will give you an satisfactory drawing:



1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m



 Lots of customers have visited our factory and give us high appraise.

And you are warmly welcomed to vist our factory!

Project Show

Lida Group steel structure shed Suppliers for workshop 4Lida Group steel structure shed Suppliers for workshop 6

Products show

Lida Group steel structure shed Suppliers for workshop 8

Lida Group steel structure shed Suppliers for workshop 10Lida Group steel structure shed Suppliers for workshop 12

Lida Group steel structure shed Suppliers for workshop 14



Main Mareial

Lida Group steel structure shed Suppliers for workshop 16

Stable steel frame



Lida Group steel structure shed Suppliers for workshop 18

Show details

Lida Group steel structure shed Suppliers for workshop 20





Company Information

  We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market  with  ISO9001, CE ,BVand SGS approval.

          Lida Group steel structure shed Suppliers for workshop 22

Contact us

Lida Group steel structure shed Suppliers for workshop 24





The product helps create an adequate ventilation environment, reducing the potential for mold growth and buildup of allergens and other particulates. It is strong enough and can stand up to 100/km per hour strong wind. Many buyers commonly think that this product is a good solution for building projects. It helps improve the aesthetics of the buildings. It is strong enough and can stand up to 100/km per hour strong wind.

Company Features
1. By the rigorous expansion of steel structure shed , Lida Group has the ability to provide high quality and finest product. Lida Group is equipped with strong research strength, having an R&D team dedicated to developing all types of new steel building parts .
2. Our quality is our company name card in build your own metal building industry, so we will do it best.
3. We have the capability of researching and developing state-of-the-art technologies of structural steel material . Innovation is the core competitiveness of Lida Group. Ask!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
