Lida K Model Prefab House Prefabricated Modular House

这里可以自定义设置

Lida K Model Prefab House (Prefabricated Modular House)

B站不支持收货地址

B站不支持库存规格

B站不支持优惠卷

Place of Origin: Shandong, China (Mainland)

Brand Name: Lida

Material: Sandwich Panel, Steel Structure

Use: Prefabricated House

Certificate: CE (EN1090), SGS ,BV, ISO9001, ISO14001, ISO45001

Delivery time: 15 to 30 days

Payment Terms: T/T, LC

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

PRODUCT INFORMATION

Lida K model prefab house (prefabricated house) is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.

The standard K model prefab house (prefabricated house) is made by 1.8m as one modular, and components connected by bolts. The house can be assembled and disassembled more than 6 times, and the service life is more than 15 years.

Typical drawings of Lida K Model Prefab House

(Prefabricated House)

Application of Lida K Model Prefab House

( Prefabricated House)

Dormitory, Office and Meeting room, Kitchen and Dining room, Toilet

Specification of Lida K Model Prefab House

Type	K Model Prefabricated House
House Depth	5.56m or 6.23m or 8.28m or special size as requested
House Width	NK1.8m(n= 5,6,7,……; K=1.8m)
House Height	Single floor, double floor or three floors
Design Load	Roof load: 0.50KN/m2; Wind load: 0.45 KN/m2 Floor load: 1.5 KN/m2 Snow load: 0.15KN/m2
Service Life	10-15 years
Main Column	C section steel
Roof Truss	C section steel
Roof & Wall Purlin	C section steel
Roof Panel	EPS sandwich panel, fiber glass sandwich panel, rock wool sandwich panel, PU sandwich panel
Wall Panel	EPS sandwich panel, fiber glass sandwich panel, rock wool sandwich panel, PU sandwich panel
Window	PVC window, aluminum alloy window or as you request.
Door	Sandwich panel door, wood door, PVC door with glass, aluminum alloy frame door, security door or as your requests
Floor Plywood	18mm good quality plywood
Floor Leather	1.5mm PVC floor leather
Electric System	Sockets, switch, lights, cable etc
Plumbing System	Pipes, basin, toilet, connection accessories
Installation Accessories	Glass glue , nails, edge cover, AC rack general bolts, anchor bolts etc

The Characteristics of Lida K Model Prefab House

1.Environment protective, no garbage caused
2. Doors, windows and interior partitions can be flexibly fixed
3. Beautiful appearance, different colors for the wall and roof.
4. Cost saving and transportation convenient
5. Anti-rust and normally more than 15 years using life
6. Safe and stable, can stand 8 grade earthquake.

Installation of Lida K Model Prefab House

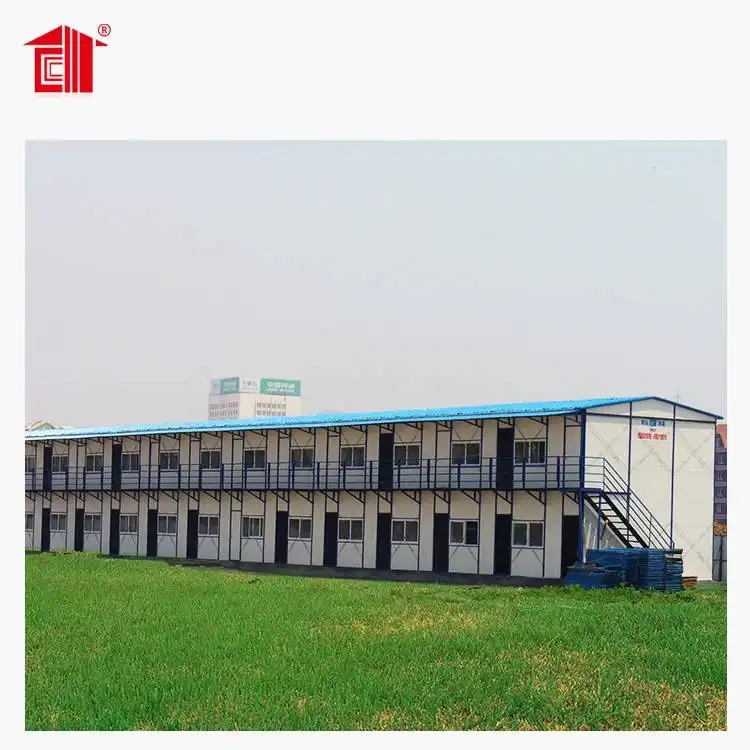

Finished Lida K Model Prefab House

We welcome you to contact us for more information of

prefab house and look forward to working with you !
