Lida Military Camp(Army Camp) steel structure
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Model Number: LD-LC-002

Place of Origin: Shandong, China (Mainland)

Brand Name: Lida

Material: Sandwich Panel, Steel Structure

Use: Mining Labor Camp (Labour Camp)

Certificate: CE (EN1090), SGS ,BV, ISO9001, ISO14001, ISO45001

Delivery time: 15 to 30 days

Payment Terms: T/T, LC


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容
Type

With or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

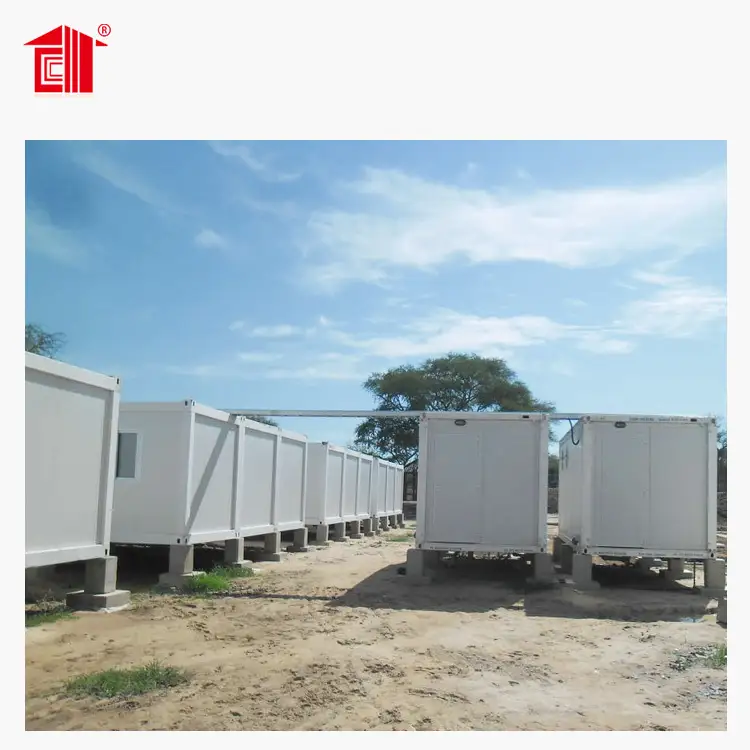

Type two: with steel chassis, the building will be put on concrete blocks

Storey

One storey or two storey or three storey are available

Frame system

Steel column

Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint

Steel roof truss

C100*40*15*2.0, welding and galvanized

Roof and wall purlin

C100*40*15*2.0, galvanized

Cross bracing

Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint

Chemical bolt

M16, chemical bolt

Ordinary bolt

4.8S, galvanized

Steel chassis or 1st floor system

Main beam

HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint

Secondary beam

C100*40*15*2.0 galvanized

Floor structure board

18/20mm plywood and fiber cement board

Flooring

PVC floor leather and ceramic tiles are available

Wall and Roof system

Wall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling system

Dry room

600*600*6mm gypsum board,with framework

Wet room

600*600*5mm calcium silicate board, with framework

Door and window system

Door

Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available

Window

PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available

Electric and Plumbing system

Electric units

Electric wire, conduit, socket, switch, light, distribution box

Sanitary units

Shower, closestool, basin, water pipe

Specification

1) 20ft: 6055*2435*2896mm

2) 40ft: 12192*2435*2896mm

3) Roof Type: Flat roof with organized internal water draining design

4) Storey:  ≤3

Design parameter

1) Life span: up to 20years

2) Floor Live load: 2.0KN/m2

3) Roof Live load: 0.5KN/m2

4) Wind load: 0.6KN/m2

5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4

Wall panel

1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm

2) Exterior steel sheet (standard configuration): Corrugated 0.4mm       Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2

3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable

4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2

Roof system

1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel

2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection

3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.

4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.

5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers

Corner pillar

1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.

2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation

Floor System

1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.

2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability: grade A, nonflammable.

3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.

4) Floor board: 18mm thickness fiber cement board, Fire-proof: grade B1. Density≥1.3g/cm3

5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color

Door & Window

1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.

2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm

Electric system

1) Rated power: 5.0 KW, suggestion external power source  ≤3 in series.

2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A,  Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.

3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.

Painting

1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.

2) Finishing paint:  Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)
