Lida Group China Prefabricated House Supplier | One-stop Solution for Modular House, Container House!     Marketing@lidajituan.com

Villa
Home  > new category  > Villa  >

light gauge steel structure villas

这里可以自定义设置
light gauge steel structure villas
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
Lida LGS villa
light gauge steel structure villas:
light gauge steel structure villas
brand:
Lida
main material:
light steel and sandwich panel
size:
customized
certification:
ISO/CE/SGS/BV
transport:
container or as your requirement
Supply Ability
Supply Ability:
100 Set/Sets per Month

light gauge steel structure villas




Product Description



Specifications

Light steel structure simple villa projects is easy to assemble and disassemble for several times and cost saving and transport.



Light steel structure simple villa projects:

1) Light steel structure modular house.

2) Wall panels and roof panels are color steel sandwich panels

3) Doors, windows and interior partitions fixed flexibly

4) Easy to assemle and disassemble for several times without damage

5) Cost saving and transportation convenient

6) Anti-rust and normally more than 10 years using life

Please contact us for further more information.



Main Material (for standard house):

No.

Part name

Material name

Description



1

ground channel

C shape steel

C80x40x15x2.0



2

column

Double C shape steel

2C80x40x15x2.0 welded



3

Beam for second floor

Steel frame

2C80x40x15x2.0,L40x4 welded



4

Sub-beam for second floor

C shape steel

C80x40x15x2.0



5

Purlin for roof

Corner steel

L40x4



6

Bracing for roof

Corner steel

L40x4



7

Bracing for aisle and rain shelter

C shape steel

C80x40x15x2.0 welded



8

Bracing between the columns

Round steel,bolt

φ8



9

Step board

Steel board

t=3.0mm



10

stair

Steel stairs





11

Wall panel

V950 EPS sandwich panel

50mm thickness,steel plate:0.3mm



12

Partition panel

V950 EPS sandwich panel

50mm thickness, steel plate:0.3mm





13

Roof panel

V950 EPS sandwich panel

50mm thickness, steel plate: 0.3mm



14

Floor for second storey

plywood

16mm thickness



15

Rain shelter

One layer color steel plate

0.45mm thickness



16

windows

PVC sliding windows

0.93mx1.715m



17

door

Sandwich panel door

0.85mx2.1m



18

Entensive and commonbolt



Different dimension







Technical Parameter of standard prefabricated house:

 Wind resistance: Grade 11(wind speed≤111.5km/h)

 Earthquake resistance: Grade 7

Live load capacity of roofing: 0.5kn/m2

External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

Second Floor Load Capacity: 150 kg/m2

Live load of corridor is 2.0kn/ m2

We can design and produce the house according to customer’s request.







Company Information





1.Our advantages:



Lida Group has leading R & D capabilities and technology advantages, and its products such as steel structure series, modular house series, and light steel sandwich panels series are widely used in industry, traffic, city construction, commercial and other temporary accommodation. With the advanced technology, full products range, excellent sales and service teams, Lida’s products are sold throughout the home and abroad markets. Lida Group is a supplier of the series products for the country’s key projects, such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc. Lida Group has the right of import and export, and its products have been exported to over 80 countires, such as,the UAE, Saudi Arabia, Oman, Angola, Equatorial Guinea,Libya,France, Poland, Romania, Russia, Australia, the Philippines, Indonesia ...etc.



2. Our company:



Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval.







Our Services





Our Services

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.



We would like to give fully support for your further inquiry!

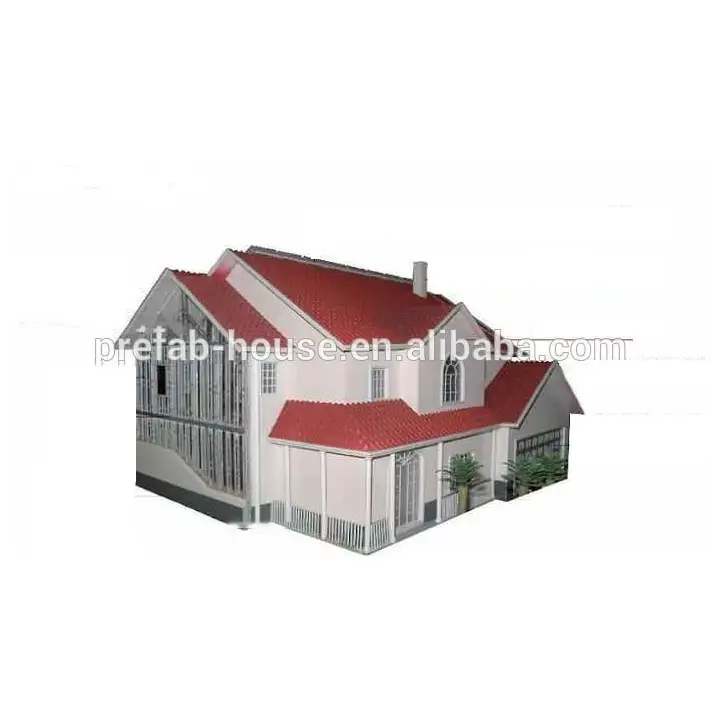

The pictures of light steel house/villa as follow:

Using this product promotes reducing the use of fossil fuels or other resources, which contributes to producing less greenhouse gas emissions. This product has the advantage of excellent sealability. Using this product doesn’t only benefit the environment—by reducing greenhouse gases and air pollutants—it also lowers energy costs and saves money. This product has the advantage of excellent sealability.
