light steel structure prefabricated home garden house bungalow
Prefabricated camp house is a Green economy building system, which is formed by the main structure (Square steel tube for column, C channel steel for roof turss and purlin), roof and wall system (using sandwich panel), door and window system. Because of its advantages, like fast production, fast installation, low cost, prefabricated camp house is widely used as labor camp, refugee camp, staff camp, mining camp, dormitory, accommodation house, toilet and shower building, laundry, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office, clinic, guard house, etc..
Type | With or without steel chassis | Type one: without steel chassis, build on concrete strip foundation Type two: with steel chassis, the building will be put on concrete blocks |
Story | One storey or two storey or three storey are available | |
Frame system | Steel column | Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint |
Steel roof truss | C100*40*15*2.0, welding and galvanized | |
Roof and wall purlin | C100*40*15*2.0, galvanized | |
Cross bracing | Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint | |
Chemical bolt | M16, chemical bolt | |
Ordinary bolt | 4.8S, galvanized | |
Steel chassis or 1st floor system | Main beam | HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint |
Secondary beam | C100*40*15*2.0 galvanized | |
Floor structure board | 18/20mm plywood and fiber cement board | |
Flooring | PVC floor leather and ceramic tiles are available | |
Wall and Roof system | Wall panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available |
Roof panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available | |
Ceiling system | Dry room | 600*600*6mm gypsum board,with framework |
Wet room | 600*600*5mm calcium silicate board, with framework | |
Door and window system | Door | Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available |
Window | PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available | |
Electric and Plumbing system | Electric units | Electric wire, conduit, socket, switch, light, distribution box |
Sanitary units | Shower, closestool, basin, water pipe |

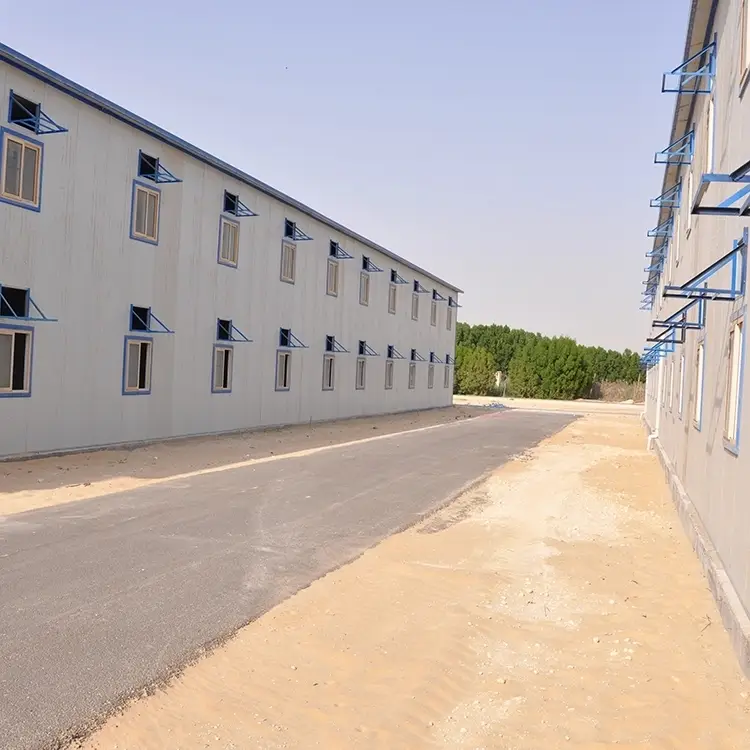

Finished pojects
1. Professional design and engineering team:
Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building:
We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision:
We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001, CE and SGS approval.
750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.
73,000 square meters of factory space.
3 production lines for our prefabricated house series.
3 production lines for coantier house series.
2 production lines for our steel structure warehouse/workshop series.
1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.
Why Choose Prefabricated house for Site Camp Solution?
There are many advantages to prefabricated house for site camps including:
1. Speed of construction and camp installation: Allows for the building and the site work to be completed simultaneously, reducing the overall completion schedule, all the Main Structures will be connect with bolts, no welding works. All the wall and roof structure, flooring will be fixed by self-tapping screw or nails, normal carpenter team could make a good job!
2. Economical Solution: Compare to concrete building, prefabricated building will be much more Economical
3. Ability to service remote locations: Assembling a work camp close to the work site reduces travel time which reduces cost.
4. Long time span: Well-built modular worker camps can last for 10, 15 or 20 years or more.
5. Safe and stable, Earthquake resistance: Grade 7, Wind resistance: Grade 11(wind speed≤ 120km/h).
We welcome you to contact us for more information of
prefab house and look forward to working with you !
