low cost container coffee shop

low cost container coffee shop

Add success, do you want to check your shopping cart?

Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet
Product name:
low cost cabin kits and prefab kits homes designs for living
20ft 6.06*2.438*2.591m(L*W*H)/40ft
Place of origin::
Costomers' Requirements
fiberglass wool/ rock wool
sandwich panel door
PVC frame 4mm thickness glass
magnitude 8
Supply Ability
Supply Ability:
200 Set/Sets per Month

low cost porta cabin/portacabin/prefab kit homes designs for living

Container House is designed and developed according to the standard size of shipping container.  Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.




  • Good ability to assemble and disassemble for several times without damage.
  • Could be lifted, fixed and combined freely.
  • Heatproof and waterproof.
  • Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)
  • Service life can reach up to 10 - 15 years
  • We can provide the service of installation, supervision and training by extra.

Technical Parameter of standard prefabricated house:

  • Wind resistance: Grade 11(wind speed111.5km/h)
  • Earthquake resistance: Grade 7
  • fire proof:B2 grade

Dimensions and Weight:

  • Inner length /external length :5.81m/6.06m
  • Inner width /external width: 2.188m/2.438
  • Inner height/external height:2,410m/2.591m
  • Weight: 2000kg per unit

Steel framework:

  • Material: Light steel structure, steel material Q235
  • Surface working: sand blasting, epoxy basic painting 55μm thick, final vinyl acrylic painting 55μm thick
  • Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
  • Forklift openings: size 100*250mm, distance is 1200mm


  • External wainscot: Flat galvanized color steel sheet, 0.4mm thickness
  • Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.
  • Warm proof Insulation layer: 75mm rock wool
  • Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen
  • 1.5mm PVC floor leather for living rooms floor; 1.5mm anti-slip aluminum board for toilet floor.
  • Permitted loading: 2.0KN/m
  • Coefficient of thermal conductivity: K=1.1 W/ (m·K)


  • Roof exterior layer: 1.2mm stamping steel plate,epoxy painting
  • Warm proof insulation filling: 75mm rock wool between wooden purlins;
  • Inner wainscot:  9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board
  • Permitted live loading: 0.5 KN/m
  • Coefficient of thermal conductivity: K=0.55 W/ (m·K)
  • Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm


  • Panel width: 1150mm; panel total thickness: 75mm
  • External layer: Galvanized and painted (29μm) color steel sheet 0.5mm
  • Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.
  • Warm proof insulation filling: 75mm EPS or rock wool or 50mm PU panel
  • Insulation density: EPS is 12kg/ m3;rock wool is 120kg/ m3;PU is 45kg/ m3
  • Permitted loading: 0.6KN/m2
  • Coefficient of thermal conductivity: K=0.442 W/ (m·K)


  • External door: sandwich panel door with opening dimension 850*2100mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.


  • Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.
  • Or PVC windows with rolling shutter.


Electrical & Water system fittings


Electrical fittings option:

  • Voltage: 110~220V, 50~60Hz,
  • European standard or Chinese standard sockets (usually 3 pcs)
  • Switch: single control switch or double control (usually 1 pcs)
  • Distribution box (usually 1 pcs): with 32A breaker protector and 10A breaker protector
  • Double tube fluorescent light (usually 2 pcs)
  • Main Power Cables: copper core 2.5-4 mm2
  • Light Cables: copper core 1.5 mm2
  • All the cables with PVC or copper electric raceway

Water system fittings option:

  • Water drain pipe, PPR pipe, diameter 16-20mm, connection fittings are made of copper, life span over 10 years.
  • Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

Sanitary ware and cookware

  • Closestool: ceramic, with pipes and installation fittings
  • Urinal: ceramic, with pipes and installation fittings
  • Wash basin: ceramic, with post, faucet, pipes and installation fittings
  • Bath room
  • Bathtub: glass fiber reinforced plastics
  • Shower head
  • Shower base
  • Cabinets: eco-friendly materials, 15mm-18mm thickness
  • Work flats countertop: surell stone/stainless steel
  • Basin: stainless steel basin
  • Water pipe: PVC or stainless steel pipe

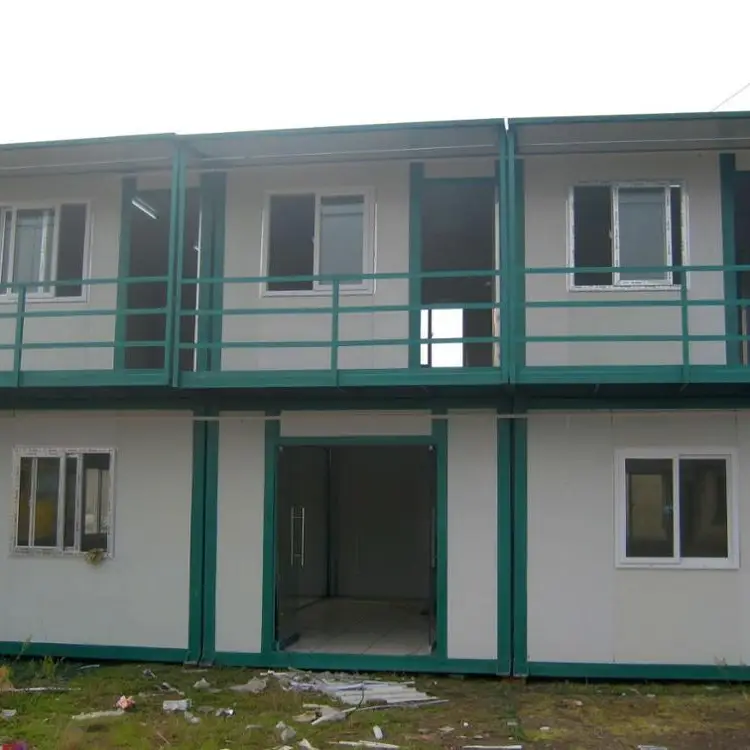

Container House Project Display:




Packaging & Shipping


Loading & Transport:

  • Container loading
  • Flat package loading as the pictures show bellow





Our Services

1. Professional design and engineering team:

    Full solution for site camp design. We could make the design for whole camp as per your requirement.


 2. Procurement and Manufacture for all material for prefabricated building:

    We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.


3. Site management & Installation supervision:

    We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.



Company Information

Our big company family:




Our company information:


I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated houseFlat Pack container housesteel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001CE and SGS approval.


Workshop and Facility:



CE, BV, SGS, ISO9001:2008 certifications



Why Choose Lida Container for Site Camp Solution?


There are many advantages to modular camp construction for site camps including:


1, Good ability to assemble and disassemble for several times without damage.

2, Could be lifted, fixed and combined freely.

3, Heatproof and waterproof.

4, Cost saving and convenient transportation (Each 4 container house can be loaded as one standard shipping container)

5,Service life can reach up to 15 - 20 years

6,We can provide the service of installation, supervision and training by extra.

Thanks for your attention ! Any more questions, please feel free to contact me.
Best regards and wish you a nice day!
                                                (Welcome to our office and factory!)
People do not have to worry that shampoos, vinegar, hair dye, or other liquids will affect its functions or make it fade. It is able to undergo extremely high and cold temperatures. 'The product is so light and easy to move, the rooms can be reconfigured quickly with very little effort', said one of the hotel owners. It is able to undergo extremely high and cold temperatures.
