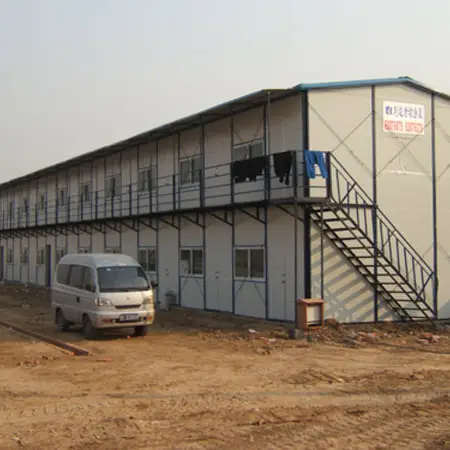

    Low cost modular homes for site accomodation

    这里可以自定义设置
    Low cost modular homes for site accomodation
    B站不支持收货地址
    B站不支持库存规格
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障
    Overview
    Quick Details
    Warranty:
    2 years
    After-sale Service:
    Onsite Installation
    Project Solution Capability:
    total solution for projects
    Application:
    Villa, Apartment, Office Building, Supermarket
    Place of Origin:
    Shandong, China
    Brand Name:
    LIDA
    Model Number:
    LIDA-PH001
    Use:
    Carport, Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet
    Product Type:
    Sandwich Panel Houses
    Design Style:
    Traditional, Midcentury, Coastal
    MATERIAL: LIGHT STEEL FRAME:
    SANDWICH PANEL
    Supply Ability
    Supply Ability:
    3000 Set/Sets per Week



    Product Description



    Material List For One Storey Prefabricated House
    Main Steel Frame
     Steel  column Fabricated by Q235 Steel,   80*80 or 100*100 or 120*120 or 150*150 Square Tube, alkyd paiting, two primary painting, two finish painting.
    Triangular Steel structure roof Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel,  alkyd paiting, two primary painting, two finish painting.
    Roof Purlin Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel,  alkyd paiting, two primary painting, two finish painting.
    Ordinary bolt 4.8S,Zincification
    Roof and Wall
    Roof Panel Insulated Steel Sandwich Panel wall
    Panel width: 950mm;
    Thickness: 50-1200mm.
    Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm
    Insulation: Polystyrene, Rockwool or Polyurethane
    Density of Rockwool: 120Kg/m3
    Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
    Density of Polyurethane: 40Kg/m3
     Wall Panel  Insulated Steel Sandwich Panel wall
    Panel width: 950mm;
    Thickness: 50-1200mm.
    Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm
    Insulation: Polystyrene, Rockwool or Polyurethane
    Density of Rockwool: 120Kg/m3
    Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
    Density of Polyurethane: 40Kg/m3
    Edge cover 0.4mmgalvanized Color steel , angle Alu.
    Fasteners & accessoreis Nails\glue ect
    Ceiling+Flooring
    Ceiling 6mm gypsum board,with steel keel
    Plywood 18mm film faced plywood
     Floor feather  1.5mm  PVC floor leather
    Door and window
    Door  External door: Insulated with opening dimension 950*2100mm, furnished with lock
    with 3keys. Inner door: Insulated steel door.
     Window PVC window witn 4mm glass, with screem
    Electrical System
    Electric cable Honyar brand, lighting 2.5m m2, aircondition: 4.0mm2, BV cable, solid core. Three diferent color
    PVC wire Channel Honyar brand
    Lights   double tube fluorescent lamp, 220V,50-60HZ
    Switches Honyar brand, Single Switch, with junction box
     Socket 16A five hole univesal socket.
    Power distribution cabinet Honyar brand, box+breakers+earth leakage protective device
    Plumbing System and Rain Water Drainage System As per building design



    Company Information







    Packaging & Shipping







     Installation



    FAQ



    1. you are manufacture factory or trading company?

    A: We are manufacture factory. Welcomed to visit our factory in the city of Weifang.

    2.Why Choosing prefab house?

    There are many advantages to modular camp construction for site camps including:

    (1) Easy to assemble and disassemble for several times without damage.

    (2) Could be lifted, moved , and combined freely.

    (3) Heatproof and waterproof.

    (4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)

    3. Why we trust you?

    (1) We have already passed the ISO,CE,SGS,BV certification.

    (2) We are one of the suppliers for Chinese government key project.

    (2) We are one main container house supplier for UN project. We could provide the project pictures and videos for your reference..

    4.How could I install the prefab house?

    There are two ways to solve the problem.

    (1) We could provide the full services for the whole installation, included sending our engineers to your country to help the installation.

    (2) If you do not need the construction supervision, we could provide the full services include the installation video, detailed drawings, and guide the installation through network step by step.









    Lida Group attaches great importance to product quality and pursues excellence in the manufacture of prefab house. We adhere to introducing foreign advanced technology and design concept. All this ensures the superior quality of products. Lida Group learns foreign advanced design concepts and production technology, and introduces high-automatic production equipment and production lines. We make sure that prefab house has excellent quality and high cost performance.
