Modular movable container house construction with quality

这里可以自定义设置
Modular movable container house construction with quality
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE
Place of Origin:
Shandong, China
Brand Name:
Lida
Product name:
low cost cabin kits and prefab kits homes designs for living
Brand:
Lida
Size:
20ft 6.06*2.438*2.591m(L*W*H)/40ft
Place of origin::
Qingdao
Color:
Costomers' Requirements
Wall:
fiberglass wool/ rock wool
Door:
sandwich panel door
Window:
PVC frame 4mm thickness glass
Anti-seismic:
magnitude 8
Certificate:
CE/ISO/BV
Supply Ability
Supply Ability:
200 Set/Sets per Month

low cost porta cabin/portacabin/prefab kit homes designs for living

General

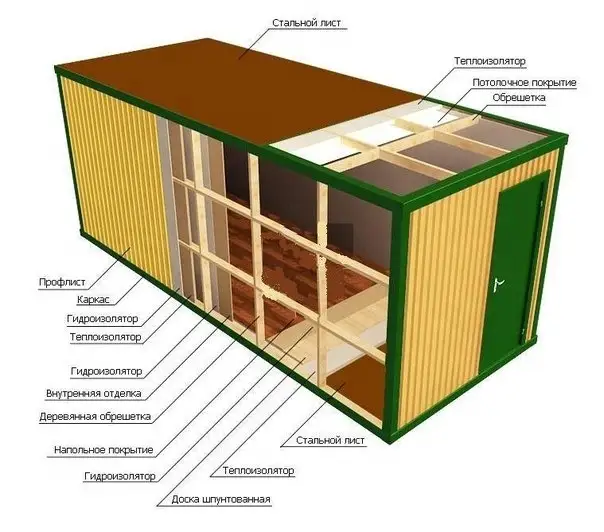

This kind of container house is convenient in lifting, fixing and compounding. The construction of the house enables its compounding in longitudinal and transverse directions without limits, also enables compounding of containers into 2 floors (ground floor + first floor), or 3 floors. The frame of container house is light steel structure, including floor, roof and four corner pillars. The building materials and its specific physical properties offer a comfortable indoor condition and suit to various purposes. And all the materials that used are environmental friendly.

Dimensions and Weight

1.Inner length /external length :5.81m/6.06m

2. Inner width /external width: 2.188m/2.438m

3. Inner height/external height:2,410m/2.591m

4. Weight: 2000kg per unit



Steel framework



Material: Light steel structure, steel material Q235

Surface working: sand blasting, epoxy basic painting 55μm, final vinyl acrylic painting 55μm thick

Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

Forklift openings: size 100*250mm, distance is 1200mm



Floor

1.External wainscot: Flat galvanized color steel sheet, 0.4mm thickness

2.Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.

3.Warm proof Insulation layer: 75mm rock wool

4.Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen

5.1.5mm PVC floor leather for living rooms floor



Permitted loading: 2.0KN/m2



Coefficient of thermal conductivity: K=1.1W/ m2K



Ceiling



Construction:

1. Roof exterior layer: 1.2mm stamping steel plate,epoxy painting

2.Warm proof insulation filling: 75mm rock wool between wooden purlins;

3. Inner wainscot:  9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board



Permitted live loading: 0.5 KN/m

Coefficient of thermal conductivity: K=0.55W/ m2K



Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm



Walls

Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.

Construction:

1.External layer: Galvanized and painted (29μm) color steel sheet 0.5mm

2.Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.

3.Warm proof insulation filling: 75mm EPS or rock wool or 50mm PU panel

4. Insulation density: EPS is 12kg/ m3;rock wool is 120kg/ m3; PU is 45kg/ m3

Permitted loading: 0.6KN/m2

Coefficient of thermal conductivity: K=0.442W/mk



Door

External door: sandwich panel door with opening dimension 850*2100mm, furnished   with a cylinder lock with 3keys. Door frame is made of aluminum alloy, 50mm thick EPS insulation foam.



Windows



Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.



Or PVC windows with rolling shutter.

Or other kind of window confirmed with client





Container House Project Display:



Packaging & Shipping



Loading & Transport:

  • Container loading
  • Flat package loading as the pictures show bellow

Our Services

1. Professional design and engineering team:

    Full solution for site camp design. We could make the design for whole camp as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building:

    We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision:

    We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Company Information

Our big company family:







Our company information:



I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated houseFlat Pack container housesteel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001CE and SGS approval.



Workshop and Facility:



Certifications:

CE, BV, SGS, ISO9001:2008 certifications



FAQ

Why Choose Lida Container for Site Camp Solution?



There are many advantages to modular camp construction for site camps including:



1, Good ability to assemble and disassemble for several times without damage.

2, Could be lifted, fixed and combined freely.

3, Heatproof and waterproof.

4, Cost saving and convenient transportation (Each 4 container house can be loaded as one standard shipping container)

5,Service life can reach up to 15 - 20 years

6,We can provide the service of installation, supervision and training by extra.
