Modular Prefabricated Worker Labor Camp Houses Project Steel Material House for Worker Labor Camp

这里可以自定义设置
Modular Prefabricated Worker Labor Camp Houses Project Steel Material House for Worker Labor Camp
B站不支持收货地址
B站不支持库存规格
Model
LD-LC-003
MOQ
6 sets
Payment
L/C, T/T
Place of Origin
Shandong,China
Brand
Lida
Delivery Time
25-30days
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

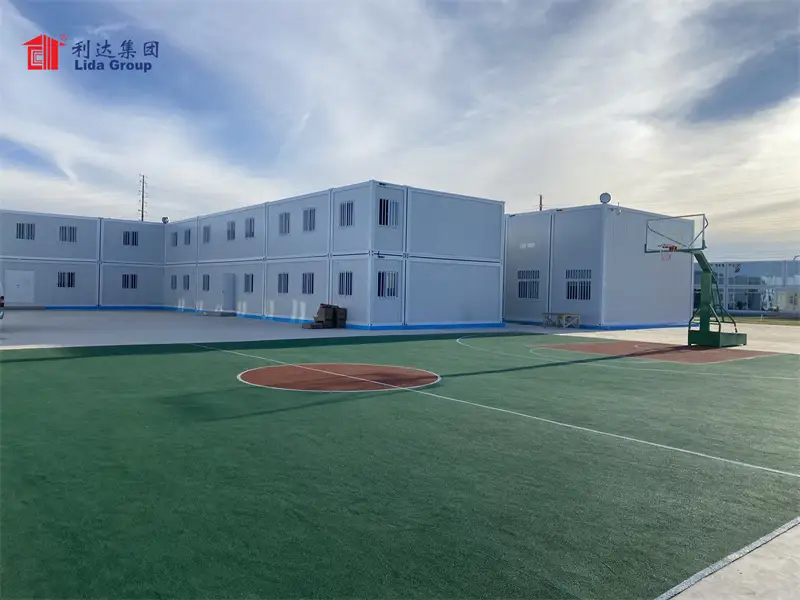

Introduction of Lida Integrated Labor Camp

Lida Integrated Camps are widely used in General Contracting projects, Oil and gas field projects, Hydroelectric Projects, Military projects, mining sectors projects, and so on, which are intended for short- and long-term site mobilization.


Lida Construction Site Labor Camp are designed to deliver the most appropriate and economical solution in terms of prefabricated house buildings, container house building or both of production system in line, which need to take the time, cost, site location, client requirements, and government regulations into consideration.
Comprehensive use of steel structure, prefab house and container house, Lida Group will offer you a one-stop service solution for the labor camp.


Lida Construction Site Labor Camp building is made of light steel as structure and sandwich panels for wall and roof. Insulation of sandwich panel can be polystyrene, polyurethane, rock wool and fiber glass, which is determined by the demand and environment requirements.


Lida Construction Site Labor Camp buildings can be assembled several times after one site construction finished, installed easily and cost effective.

DESIGN DETAILS

Our expert team will advise you the best turnkey solution based on your specific requirement for the camp buildings, location of the camp, staff quantity and the budget expectation.

Scroll
Down

LIDA INTEGRATED LABOR CAMP NORMALLY

INCLUDES THE FOLLOWING BUILDINGS AS FOLLOWING

Accommodation Building ,Kitchen and Dining Buildings, Clinic building(Medical center),Administration Office & Site Office, Laundry building, Camp warehouse, Recreation building, Prayer Room Market(Shop), Washing Room& Shower Room,etc.

ADVANTAGES

Advantages of Lida Integrated Camp

Component Specification of Lida Integrated Labor Camp ( prefab house type)

Lida Prefabricated House (Prefab House) is formed by the main structure (Square steel tube for column, C channel steel for roof turss and purlin), roof and wall system (using sandwich panel), door and window system. Because of its advantages, like fast production, fast installation, low cost.



Prefab House is widely used as labor camp, refugee camp, staff camp, mining camp, dormitory, accommodation house, toilet and shower building, laundry, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office, clinic, guard house, etc

PREFAB HOUSE FORM INFORMATION

Lida Group is a leading manufacturer in China for temporary camp building with prefabricated buildings and container houses.

Type

With or without steel chassis

Type one: without steel chassis, build on concrete strip foundation
Type two: with steel chassis, the building will be put on concrete blocks

Storey

One storey or two storey or three storey are available

Frame system

Steel column

Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint

Steel roof truss

C100*40*15*2.0, welding and galvanized

Roof and wall purlin

C100*40*15*2.0, galvanized

Cross bracing

Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint

Chemical bolt

M16, chemical bolt

Ordinary bolt

4.8S, galvanized

Steel chassis or 1st floor system

Main beam

HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint

Secondary beam

C100*40*15*2.0 galvanized

Floor structure board

18/20mm plywood and fiber cement board

Flooring

PVC floor leather and ceramic tiles are available

Wall and Roof system

Wall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling system

Dry room

600*600*6mm gypsum board,with framework

Wet room

600*600*5mm calcium silicate board, with framework

Door and window system

Door

Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available

Window

PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available

Electric and Plumbing system

Electric units

Electric wire, conduit, socket, switch, light, distribution box

Sanitary units

Shower, closestool, basin, water pipe

Component Specification of Lida Integrated Camp ( flat pack container house type)



Flat pack container house is made by steel frame structure, which adopts cold- form galvanized steel. Structure is consists of three modular parts: roofing frame, corner column and floor frame.



Each modular part is manufactured at the factory and assembled on construction site. With one single container house as basic unit, it can be combined horizontally or vertically in different form like building blocks.



Flat pack container house can be stacked in three storeys with flexible in space layout and multiple function, and can be used in different application fields.

CONTAINER HOUSE FORM INFORMATION

We can offer turnkey operation for your site that includes planning&designing, material processing, installation and other construction material supply.

Specification

1) 20ft: 6055*2435*2896mm

2) 40ft: 12192*2435*2896mm

3) Roof Type: Flat roof with organized internal water draining design

4) Storey:  ≤3

Design parameter

1) Life span: up to 20years

2) Floor Live load: 2.0KN/m2

3) Roof Live load: 0.5KN/m2

4) Wind load: 0.6KN/m2

5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4

Wall panel

1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm

2) Exterior steel sheet (standard configuration): Corrugated 0.4mm       Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2

3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable

4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2

Roof system

1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel

2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection

3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.

4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.

5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers

Corner pillar

1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.

2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation

Floor System

1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.

2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability: grade A, nonflammable.

3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.

4) Floor board: 18mm thickness fiber cement board, Fire-proof: grade B1. Density≥1.3g/cm3

5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color

Door & Window

1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.

2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm

Electric system

1) Rated power: 5.0 KW, suggestion external power source  ≤3 in series.

2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A,  Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.

3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.

Painting

1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.

2) Finishing paint:  Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)
