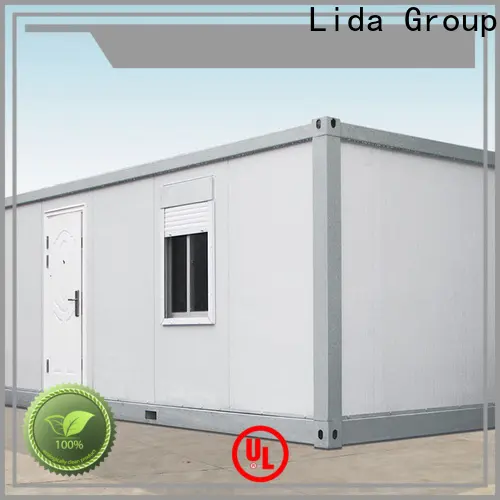

New living in container house Supply used as office, meeting room, dormitory, shop
1. Designed and built by professional engineers, living in container house has the flat board surface, bright color, and clear texture, and has a good decorative effect.
2. Some of the buyers say this product has helped improve the building structure that has been constructed to last for many years while still strong. This product features a stable structure, which is not easy to collapse
3. The product has standard height and length measurements and as such, it provides modular elements that can be combined into larger structures. Its stainless steel materials can be reused after dismounted
4. It comes with mobility. It is designed to be easily transportable and in compliance with the required dimension to ensure that these can be transported anywhere. This product features level A fire protection grade
5. It has the virtue of durability. A metal designed for bridges, namely CorTen Steel, is used, allowing it to resists rust for hundreds of years, even in salty environments. This product has been certified under CE
Fast and safe container office prefabricated in construction site
| Fast And Safe Container Office Prefabricated In Construction Site | |
| Specification | 1) 20ft: 6055*2435*2896mm |
| 2) 40ft: 12192*2435*2896mm | |
| 3) Roof Type: Flat roof with organized internal water draining design | |
| 4) Storey: ≤3 | |
| Design parameter | 1) Life span: up to 20years |
| 2) Floor Live load: 2.0KN/m2 | |
| 3) Roof Live load: 0.5KN/m2 | |
| 4) Wind load: 0.6KN/m2 | |
| 5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4 | |
| Wall panel | 1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm |
| 2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2 | |
| 3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable | |
| 4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2 | |
| Roof system | 1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel |
| 2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection | |
| 3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable. | |
| 4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2. | |
| 5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers | |
| Corner pillar | 1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B. |
| 2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation | |
| Floor System | 1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement. |
| 2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable. | |
| 3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2. | |
| 4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3 | |
| 5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color | |
| Door & Window | 1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm. |
| 2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm | |
| Electric system | 1) Rated power: 5.0 KW, suggestion external power source ≤3 in series. |
| 2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box. | |
| 3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W. | |
| Painting | 1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm. |
| 2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2) | |
Q: Are you factory or trading company?
A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.
Q: How about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
Company Features
1. As one of the manufacturers that enjoy high market reputation, Lida Group has a strong competence in developing and manufacturing living in container house .
2. Lida Group has advanced techniques, modern testing methods and felicities.
3. To realize Lida Group's corporate mission of shipping container dwellings is essential. Call now!
We welcome you to contact us for more information of
prefab house and look forward to working with you !
