Lida Group China Prefabricated House Supplier | One-stop Solution for Modular House, Container House!     Marketing@lidajituan.com

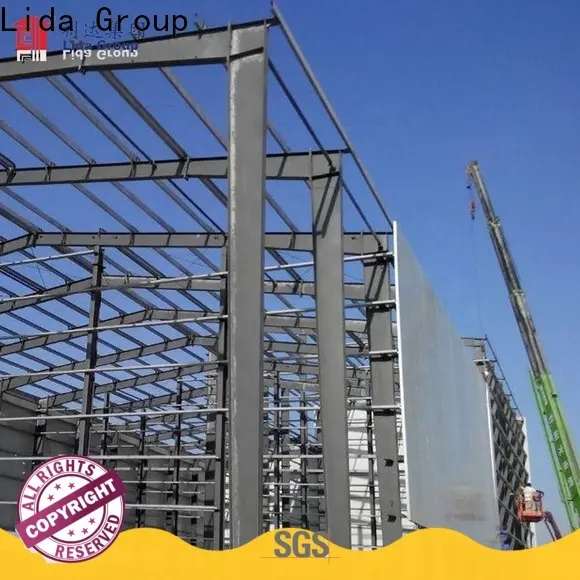

New metal farm buildings shipped to business for workshop 1
New metal farm buildings shipped to business for workshop 1

New metal farm buildings shipped to business for workshop

Inquiry

Overview
Quick Details
Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q345 low alloy steel
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
S075
Type:
Light
Application:
Steel Workshop
Tolerance:
±1%
Item:
Factory Wholesale Customized Industrial Building Steel Structure
Keywords:
qingdao steel structure
Purlin:
C.Z Shape Steel Channel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Certificates:
ISO 9001, CE EN1090
Surface treatment:
Hot Dip Gavalnized or Alkyd painting
Service life:
70 years
Installation:
supervisor guiding is available
Door:
Sliding door or electricl rolling door
Span:
Single span 36m without central column
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month , Integrating cooperated factories capacity: 750000 sqm monthly
Video Description

Factory Wholesale Customized Industrial Building Steel Structure

Product Description

Brief Description



Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc..

 New metal farm buildings shipped to business for workshop 2

Component Specification



Main structure

H-section steel

Q345 steel H beam, Box column is also available
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
surface processing twice primer and twice finish Alkyd Paint or hot dip galvanized
High strength bolt Grade 10.9
Substructure Angle brace L50x4,Steel Q235,Process and painting
Cross bracing Dia.20 round bar,Steel Q235, process and pre-galvanized
Tie bar Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized
Batter brace Dia.12 round bar,Steel Q235 process and pre-galvanized
Ordinary bolt Galvanized bolt
Roof Purlin C channel or Z channel,steel Q235, galvanized
Roof panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
Transparent skylight 1.2mm FRP
Accessories Sealant, self-tapping screw, etc.
Edge cover Made of color steel sheet
Gutter Made of steel sheet thickness 0.8mm, or PVC
Rinspout PVC pipe
Wall Purlin C channel or Z channel, steel Q235, galvanized
Wall panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
Accessories Sealant, self-tapping screw etc
Edge cover Made of GI color steel
Ventilator   unpowered axial-flow ventilator or monitor roof
Door & window   Electric rolling door/sliding door, PVC/Alu. alloy window
Crane   With or without crane, ranging from 5 tons to 20 tons



Advantages



1) Single span and multiple span are available, the max clear span is 36m without central column (post).

2) Service life is up to 70 years.

3) Cost effective, the average price is from USD 30/sqm to USD 90/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.



Installation



New metal farm buildings shipped to business for workshop 4



Project Photos

New metal farm buildings shipped to business for workshop 6



New metal farm buildings shipped to business for workshop 8



New metal farm buildings shipped to business for workshop 10



Packaging & Shipping

New metal farm buildings shipped to business for workshop 12



New metal farm buildings shipped to business for workshop 14

Our Services

1) Professional sales team: all staff are bachelor and master, abroad team in Saudi Arabia, Qatar, Dubai, Kuwait, Maldives, Malaysia, Sri lanka, etc., provide the best communication.

2) Professional engineers team: all staff are master and doctor, provide the best solution.

3) Professional fabrication: all workers are through professional training, provide the quality guarantee products.

4) Professional installation team: supervisors guide installation from 2004 with rich experience.

5) Turnkey is also available for some projects.

Company Information

Brief introduction:



Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series



Our Team

New metal farm buildings shipped to business for workshop 16



Customer Visit



New metal farm buildings shipped to business for workshop 18



Finished Project



New metal farm buildings shipped to business for workshop 20New metal farm buildings shipped to business for workshop 22New metal farm buildings shipped to business for workshop 24





Production line



New metal farm buildings shipped to business for workshop 26



Certificate



New metal farm buildings shipped to business for workshop 28



New metal farm buildings shipped to business for workshop 30



FAQ



Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2008, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

Lida Group has accumulated rich production experience during the development for many years. Besides, we have professional engineers, advanced production equipment, and strong technical force. Our prefab house is superior in quality and excellent in performance. Designed by professionals, prefab house is manufactured based on high-quality steel. Besides, it is tested by relevant national inspection departments. It is guaranteed to be in line with national quality standards.
