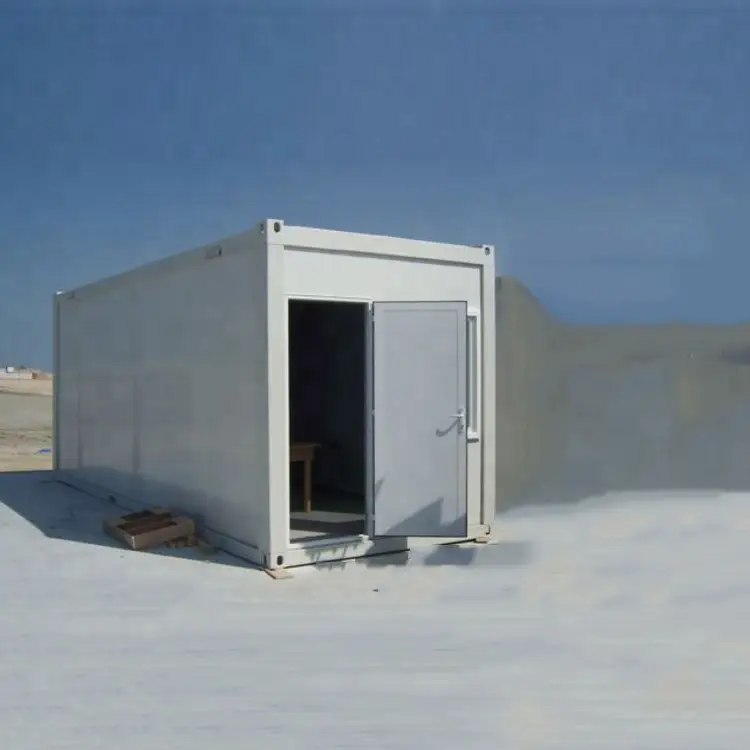

oilfield container house labor camp

这里可以自定义设置
oilfield container house labor camp
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
Use:
Hotel, House, Office, Villa, accommodation, Dormitory, Living house
Key words:
oilfield container house labor camp
Column:
3.5mm profile, Q235 Steel
Top and Down Beam:
3.5mm profile, Q235 Steel
Roof Top plate:
1.2mm fully welded Steel Roof, Very Strong.
Roof and Floor Steel Keel:
80# C-Section Steel
Wall Panel:
75mm Sandwich Panel
Flooring:
18mm filmfaced plywood +1.5mm PVC floor leather
Window:
PVC window, with 6mm Glass
Door:
Insulated Steel Door
Material:
Steel
Supply Ability
Supply Ability:
50 Unit/Units per Month

oilfield container house labor camp

General technical description for Prefabricated Modular Container House



Technical Parameter:
Size: GP20, GP40 and HP40
Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
You are so welcome to send us inquiries!



Dimensions and Weight

Inner length /external length :5.81m/6.06m

Inner width /external width: 2.188m/2.438m

Inner height/external height:2,410m/2.591m

Weight: 2000kg per unit

Steel framework



Material: steel material Q234, thickness: 3.5mm,for top beam frame. Base beam frame and column.

Surface working: epoxy painting,two bottom and two surface.

Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

Forklift openings: size 100*250mm, distance is 1200mm



Floor

External wainscot: Flat galvanized color steel sheet, 0.5mm thickness

Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.

Warm proof Insulation layer: 75mm rock wool

18mm bamboo plywood

2.0mm PVC floor leather for living rooms floor;



Ceiling

Construction:

Roof exterior layer: 1.2mm steel plate with epoxy painting

Warm proof insulation filling: 75mm rockwool between C section purlins;

Inner wainscot: 8mm OSB board with 12mm PVC decoration board.

Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm



Walls

Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.

Construction:

Common room wall: 75mm rockwool 0.4/0.4mm Galvanized

steel on both side , Desity of Rockwool: 120Kg/m3

Galvanize window opening on the wall if needed.

Door



External door: Insulated with opening dimension 950*2100mm, furnished with lock

with 3keys. Inner door: Insulated steel door.



Windows

Window material: PVC window with fly screen. Double glass, 4mm glass.



Electrical fittings option

Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.

Main outlet and input industrial socket with 32A.

3 pcs 16A five hole universal socket.

2 pc double tube fluorescent lamp, 220V,50-60HZ

1 pc Single Switch, Honyar brand, with junction box

1 pc Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings



Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.

Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

Sanitary ware:

Western Close tool: ceramic, with pipes and installation fittings

Urinal: ceramic, with pipes and installation fittings

Wash basin: ceramic, with post, faucet, pipes and installation fittings

Shower head, Shower base, Water mixture


Our Services

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.



2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.





FAQ

Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:



1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
5) Service life can reach up to 20 - 25 years
6) We can provide the service of installation, supervision and training by extra.





Company Information

Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 15 years, and we have exported our products to more than 40 countries as well as our domestic market  with  ISO9001, CE and SGS approval.



We would like to give fully support for your further inquiry!

Best regards
Steven Chen
---------------------------------------------------------
Weifang Henglida Steel Structure Co., Ltd.
Add: Room1102, Unit B, Zhonghui Commercial Building,Qingdao,266000,China
Tel: 0086-532-88966982    Fax: 0086-532-88965571
Moble: KSA: 00966-548943324 China: 0086-13869829462



One can benefit from the portability of this product, and the ability to create an extremely environmentally-efficient, self-sufficient living space. This product features level A fire protection grade. This product has revolutionized not just the transportation and shipping industry but now also trying to take over the construction industry with many houses, and accommodation being built from it. This product features level A fire protection grade.
