Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Lida

Model Number:: LD-PH60

Material:: Steel, Galvanized Sheet

Use:: Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse

Sandwich panel:: Weifang Henglida-LIDA GROUP

H-section:: Galvanized steel structure

Galvanized:: pre-painted anti-rust

currugated steel sheet:: any color is ok

Supply Ability

Supply Ability:: 300 Square Meter/Square Meters per Day

Product Description

Specification and Material List for living prefab home:

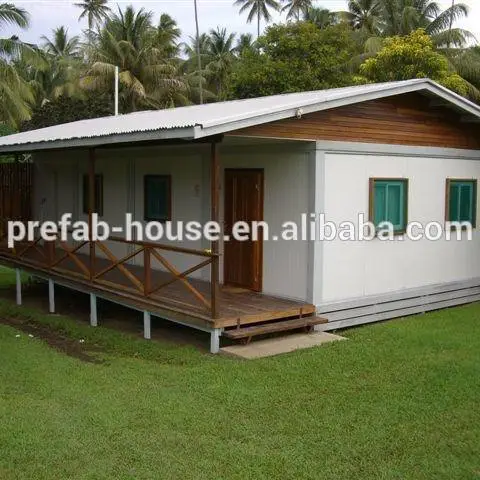

Labor Camp Low Cost Prefabricated Building

1. Advantages:

(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6).Safe and stable, can stand 8 grade earthquake.

2. Material List for Prefabricated Hosue:

Weifang Henglida Steel Structure Co., Ltd
Material List For Prefabricated House
1. Main Steel Frame
Steel column	Fabricated by Q235 or Q345 Steel, 8080 or 100100 or 120120 or 150150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S, Galvanized
2. Roof and Wall
Roof Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Wall Panel	A: Insulated Steel Sandwich Panel wall (1) Panel width: 950mm; (2) Thickness: 50-1200mm. (3) Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm B: Insulation: Polystyrene, Rockwool, Fiber Glass or Polyurethane (1) Density of Rockwool: 120Kg/m3 (2) Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 (3) Density of Polyurethane: 40Kg/m3 (4) Density of Fiber Glass:40Kg/m3, 60Kg/m3
Edge Cover	0.4mm galvanized color steel , angle Alu.
Fasteners & Accessoreis	Nails\glue ect
3. Ceiling&Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	(1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. (2) Inner door: Single open door. Insulated steel door.
Window	4mm glass PVC window witn flying screem
4. Electrical System
Electric Cable	(1) Three diferent color. (2) Lighting: 2.5m m2. (3) Air condition: 4.0mm2. (4) BV cable, solid core.
PVC Wire Channel	PVC wire channel
Lights	Double tube fluorescent lamp, 220V,50-60HZ
Switches	Single Switch, with junction box
Socket	16A five hole univesal socket.
Power Distribution Cabinet	Box+breakers+earth leakage protective device
5. Water&Plumbing system(choose)
Water drain pipe	(1) PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years. (2) Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
Sanitary ware	(1) Western Close tool: ceramic, with pipes and installation fittings (2) Urinal: ceramic, with pipes and installation fittings (3) Wash basin: ceramic, with post, faucet, pipes and installation fittings (4) Shower head, Shower base, Water mixture
6. Plumbing System and Rain Water Drainage System as per building design

pre fab buildings ,module house with high quality 15

pre fab buildings ,module house with high quality 17

Company Information

Our WeifangHenglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, living prefab homes, Flat Pack container home, modular home, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval.Lida Group is a supplier of the series products for the country’s key projects, such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc.

Lida Group has established a scientific and standardized production process, and has improved the quality control system. The production details are carefully controlled in an all-round way to ensure that prefab house is a high-quality product that meets international standards. With rich production experience, Lida Group constantly learns foreign advanced technology and introduces sophisticated equipment. Besides, we have a sound quality management system to carry out strict quality inspections. All this provides favorable conditions for producing high-quality prefab house.
