Place of Origin: Shandong, China (Mainland)
Brand Name: Lida
Material: Sandwich Panel, Steel Structure
Use: Green House
Certificate: CE (EN1090), SGS ,BV, ISO9001, ISO14001, ISO45001
Delivery time: 15 to 30 days
Payment Terms: T/T, LC
1.1) Single-layer film greenhouse
Skeleton Material | Hot-dip galvanized light steel structure |
Covering Material | Top covered with single-layer film, at the four sides by single-layer film or other |
Span | 7.0m/8.0m |
Eaves height | 2.2m-5.0m |
Column spacing | 4.0m |
Top Window: | Manual or Electric roller shutter |
Side window: | Manual or Electric roller shutter |
Complementary facilities: | Choosing different supporting equipment according to the greenhouse function needs |
1.2)Double-layer film greenhouse
Skeleton material | Hot-dip galvanized light steel structure |
Covering Material | Top covered with double-layer inflatable film, surrounded by inflatable film or other |
Span | 6.4m/8.0m/9.6m |
Eaves height | 2.2m-5.0m |
Column spacing | 4.0m |
Top window | Long gear bar window |
Side window | Rack outward window, push-pull window, electric vertical push-pull window, rolling shutter |
Complementary facilities | Choosing different supporting equipment according to the greenhouse function needs |

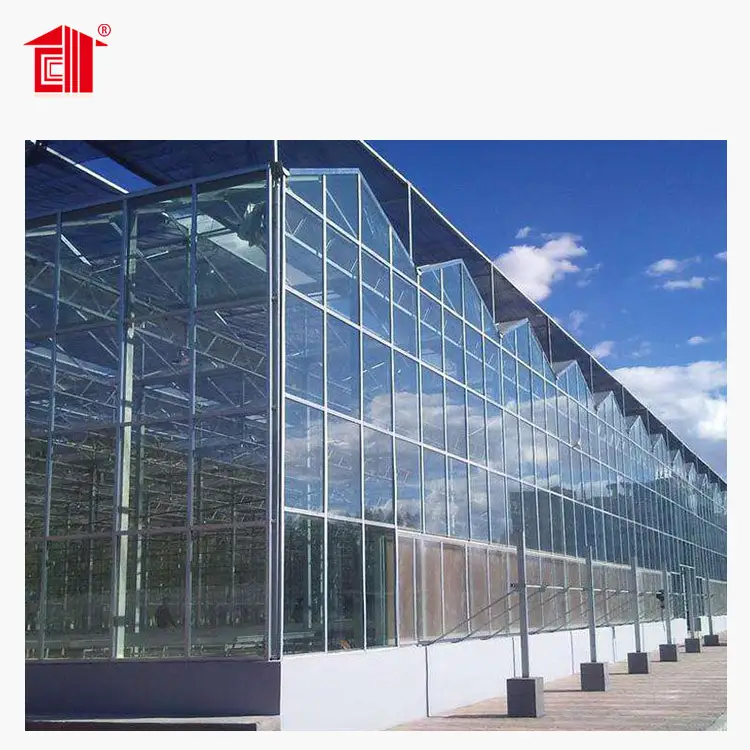

Greenhouse structure
Skeleton material | Hot-dip galvanized light steel structure, A-shaped roof |
Covering material | PC hollow solar panel or float hollow glass/tempered hollow glass at the top, float hollow glass/tempered hollow glass at the four sides |
Top window | long window or staggered |
Side window | Rack flip window, push-pull window, electric vertical push-pull window |
Complementary facilities | Choosing different supporting equipment according to the greenhouse function needs |
Technical parameters | Design load |
wind load 0.30kN/㎡snow load 0.40 kN/㎡;Span | 6.4m/8.0m/9.0m/9.6m/10.8m/12mEaves Height |
3.0m/4.0m/4.5m/5.5m/6.0m |
|
Column spacing | 4.0m/8.0m |
Greenhouse characteristics
◆ Solves the contradiction between heat preservation and light transmission in greenhouse. Good heat preservation in winter.
◆ The unique glass sealing structure completely solves the problem of water leakage.
◆ Glass greenhouse has the advantages of beautiful appearance, good light transmission, good display effect and long service life.
◆ It has the function of preventing fogdrop, setting dew water collecting groove under the open gutter, which can collect the dew water and guide it to the end of the greenhouse, so as to reduce the occurrence of diseases and insect pests.
◆ This type of greenhouse can realize full automatic control. The corollary equipment can choose heating system (hot fan heating or water heating), sunshade curtain system, mist or water curtain cooling system, CO2 supplementary system, light supplement system and spraying, drip irrigation and fertilization system, computer integrated control system, top spraying system, etc.
Greenhouse structure
Skeleton material | Hot-dip galvanized light steel structure, A-shaped roof |
Covering material | PC hollow solar panels on top and around |
Roof window | Interlaced window, one-sided window and long window at roof ridge |
Side window | Rack flip window, push-pull window, electric vertical push-pull window |
Complementary facilities | Choosing different supporting equipment according to the greenhouse function needs |
Technical parameter |
|
Design Load | Wind Load 0.30 kN/㎡, |
Snow load | 0.40 kN/㎡; |
Span | 6.4m/8.0m/9.6m/10.8m/12m/12.8m/16.0m |
Eaves height | 3.0m-8.0m |
Column spacing | 4.0m/8.0m |
Greenhouse characteristics
◆ The greenhouse has the characteristics of multi-roof in one span, small roof, multi-gutter and large span, and the interior can be flexibly partitioned.
◆ Good lighting performance and Indoor lighting uniformity
◆ It has strong drainage capacity and can be used for large area multi-span.
◆ Aluminum alloy profiles or special link seals, link seals, beautiful appearance
◆ It has the function of preventing fogdrop, setting dew water collecting groove under the open gutter, which can collect the dew water and guide it to the end of the greenhouse, so as to reduce the occurrence of diseases and insect pests.
◆ The effect of heat preservation and energy saving is better than that of single-layer glass, which can save a lot of fuel in winter, but its transmittance is worse than that of single-layer glass.
◆The interior is spacious and bright, the operation space is large, and the utilization rate of greenhouse is high.
Skeleton material | Hot-dip galvanized light steel structure, arc top |
Covering material | PC hollow solar panels on top and around |
Top window | Through-length rack with arc gear and arc rack |
Side window | Rack flip window, push-pull window, electric vertical push-pull window |
Complementary facilities | Choosing different supporting equipment according to the greenhouse function needs |
Greenhouse structure
Design Load: Wind Load 0.30 kN/㎡
Snow load: 0.40 kN/㎡
Span: 6.4m/8.0m/9.6m
Eaves height: 2.5m-8.0m
Column Spacing: 4.0m
Greenhouse characteristics
◆ Curved roof is more conducive to the decline of rainwater and snow, reduce wind resistance, improve the load resistance of greenhouse, reduce dew drop, and reduce the incidence of pathogens caused by excessive humidity.
◆ The opening of skylight at the top of greenhouse conforms to the flow direction of hot air, is conducive to the flow of air and the loss of heat, and is conducive to cooling and dehumidification in summer.
◆ Gutter with large flow
◆ Large span, large column spacing, tall type can be widely used as ecological restaurants, leisure and sightseeing greenhouses and large flower markets.
◆ The top cover can be double-deck hollow board and double-deck gutter, which can effectively prevent dew and reduce energy consumption for heating in winter.
