Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House

    oops...!

    no product data.

    Go to homepage
    Material
    Container,Sandwich Panel, Steel Structure
    Certification
    CE, TUV
    Availability
    OEM/ODM
    Delivery Time
    25-30days
    Start Port
    Qingdao port
    Supply Ability
    10000 Square meters/month
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 8

    Introduction of Lida Prefabricated House

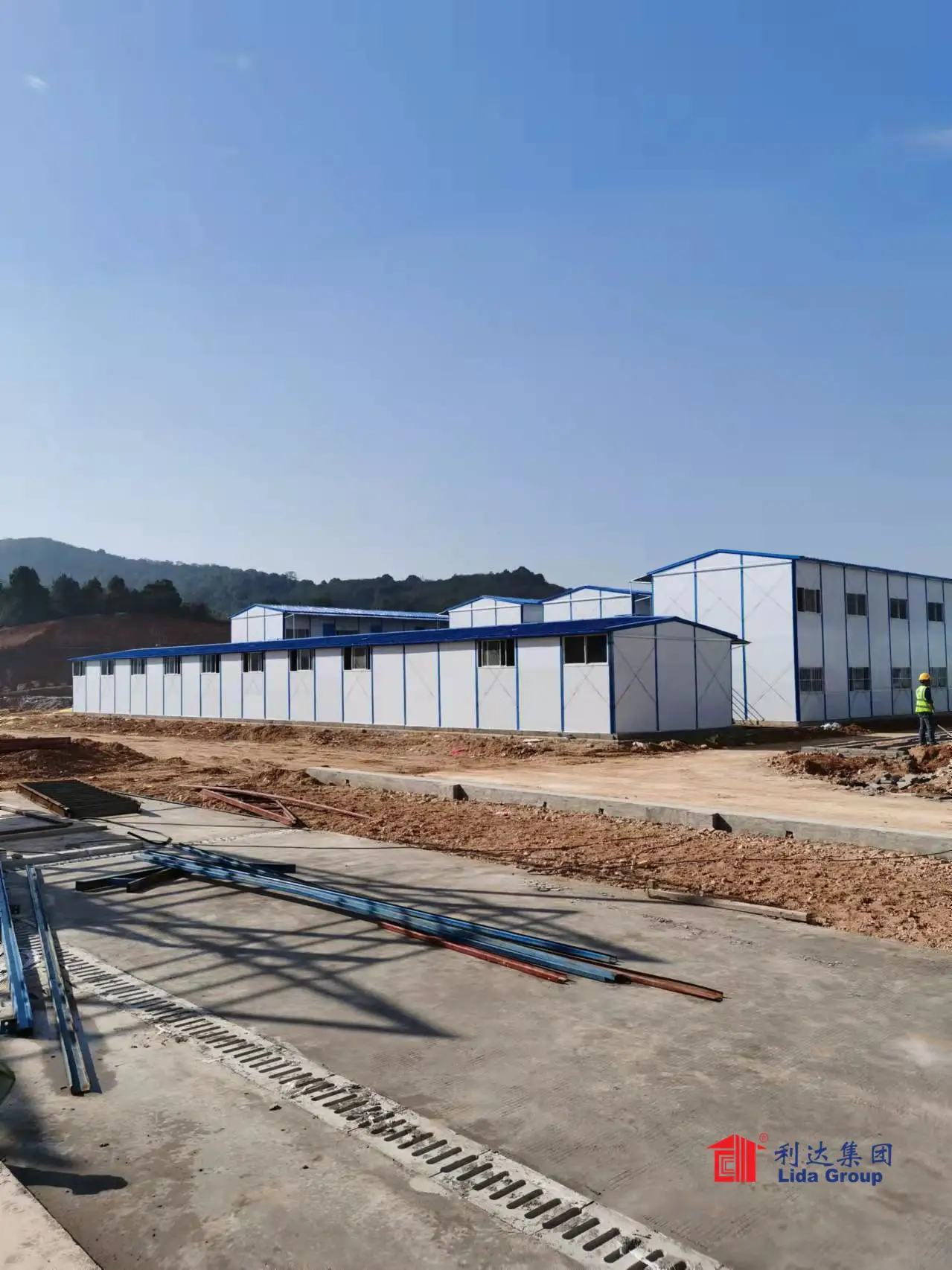

    Lida prefab houses are widely used in General Contracting projects, Oil and gas field projects, Hydroelectric Projects, Military projects, mining sectors projects, and so on, which are intended for short- and long-term site mobilization.


    Lida Construction Site Labor Camp are designed to deliver the most appropriate and economical solution in terms of prefabricated house buildings, container house building or both of production system in line, which need to take the time, cost, site location, client requirements, and government regulations into consideration.
    Comprehensive use of steel structure, prefab house and container house, Lida Group will offer you a one-stop service solution for the labor camp.


    Lida Construction Site Labor Camp building is made of light steel as structure and sandwich panels for wall and roof. Insulation of sandwich panel can be polystyrene, polyurethane, rock wool and fiber glass, which is determined by the demand and environment requirements.


    Lida Construction Site Labor Camp buildings can be assembled several times after one site construction finished, installed easily and cost effective.

    Container House Brunei DESIGN DETAILS

    Our expert team will advise you the solution based on your specific requirement for the camp buildings, location of the camp, staff quantity and the budget expectation.

    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 9

    ADVANTAGES

    Advantages of Lida Group prefabricated house

    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 10
    1
    Size is customized, design according to requirements.
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 11
    2
    Service life is up to 15 years.
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 12
    3
    Cost effective, the average price is from USD 60/sqm to USD 120/sqm.
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 13
    4
    Fast construction. From production to installation, it only needs several months.
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 14
    5
    Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 15
    6
    Our 26 years’ experience in integrated camp building supply allows us to offer a complete one –stop integrated camp solution.

    PRODUCT DETAILS

    The main products of Lida Group contains large scale of labour camp, Steel structure buildings, LGS Villa, Container house, Prefab house and other integrated buildings

    Type

    With or without steel chassis

    Type one: without steel chassis, build on concrete strip foundation
    Type two: with steel chassis, the building will be put on concrete blocks

    Storey

    One storey or two storey or three storey are available

    Frame system

    Steel column

    Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint

    Steel roof truss

    C100*40*15*2.0, welding and galvanized

    Roof and wall purlin

    C100*40*15*2.0, galvanized

    Cross bracing

    Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint

    Chemical bolt

    M16, chemical bolt

    Ordinary bolt

    4.8S, galvanized

    Steel chassis or 1st floor system

    Main beam

    HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint

    Secondary beam

    C100*40*15*2.0 galvanized

    Floor structure board

    18/20mm plywood and fiber cement board

    Flooring

    PVC floor leather and ceramic tiles are available

    Wall and Roof system

    Wall panel

    Sandwich panel: Rock wool, Glass wool, EPS, PU are available
     Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

    Roof panel

    Sandwich panel: Rock wool, Glass wool, EPS, PU are available
     Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

    Ceiling system

    Dry room

    600*600*6mm gypsum board,with framework

    Wet room

    600*600*5mm calcium silicate board, with framework

    Door and window system

    Door

    Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available

    Window

    PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available

    Electric and Plumbing system

    Electric units

    Electric wire, conduit, socket, switch, light, distribution box

    Sanitary units

    Shower, closestool, basin, water pipe

    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 16
    container house brunei
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 17
    prefabricated house
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 18
    prefabricated camp
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 19
    prefab camps
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 20
    prefabricated office
    Prefabricated Assembly Steel Structure Portable Modular Kit Prefab House 21
    brunei container house
