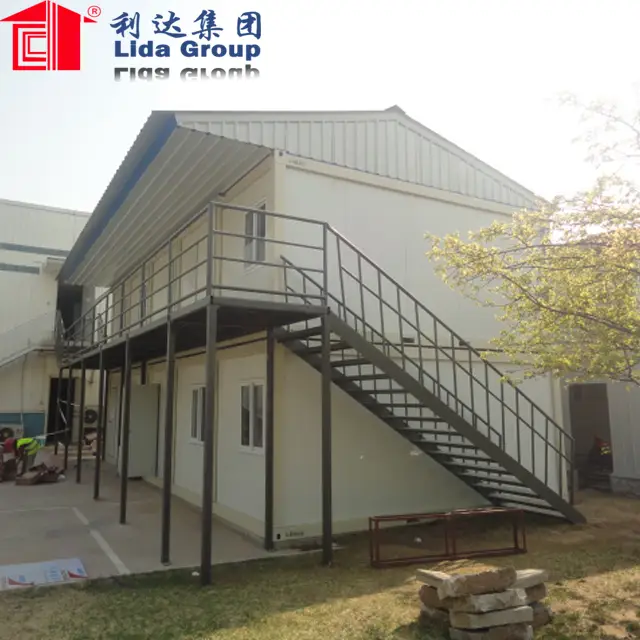

Prefabricated expandable 2-story container house prices for sale philippines

Technical Parameter:
(1).Size: GP20, GP40 and HP40 of shipping container
(2).Wind Resistance: Grade 12
(3).Wall permitted loading: 0.6KN/ m2
(4).Ceiling Permitted live loading: 0.5 KN/m2
(5).Wall Coefficient of thermal conductivity: K=0.442W/mk
(6).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Characters:
(1). Good ability to assemble and disassemble for several times without damage.
(2). Could be lifted, fixed and combined freely.
(3). Heatproof and waterproof.
(4). Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
(5) Service life can reach up to 15 - 20 years
(6) We can provide the service of installation, supervision and training by extra.

Dimensions and Weight
(1).Inner length /external length :5.81m/6.06m
(2).Inner width /external width: 2.188m/2.438m
(3).Inner height/external height:2,410m/2.591m
(4).Weight: 2000kg per unit

Steel framework
(1).Material: steel material Q345, thickness: 3.5mm,for top beam frame. Base beam frame and column.
(2).Surface working: epoxy painting,two bottom and two surface.
(3).Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
(4).Forklift openings: size 100*250mm, distance is 1200mm

Floor
(1).External wainscot: Flat galvanized color steel sheet, 0.5mm thickness
(2).Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.
(3).Warm proof Insulation layer:

(a)75mm rock wool

(b)18mm bamboo plywood
(c)2.0mm PVC floor leather for living rooms floor;

Ceiling

Construction:
(1).Roof exterior layer: 1.2mm steel plate with epoxy painting
(2).Warm proof insulation filling: 75mm rockwool between C section purlins;
(3).Inner wainscot: 8mm OSB board with 12mm PVC decoration board.
(4).Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls
(1).Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.
(2).Common room wall: 75mm rockwool  0.4/0.4mm Galvanized . Steel on both side .

Desity of Rockwool: 120Kg/m3
(3).Galvanize window opening on the wall if needed.

Door
(1).External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys.

(2).Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen. Double glass, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
Main outlet and input industrial socket with 32A.
3 pcs 16A five hole universal socket.
2 pc double tube fluorescent lamp, 220V,50-60HZ
1 pc Single Switch, Honyar brand, with junction box
1 pc Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
(1).Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
(2).Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(3).Sanitary ware:
(a).Western Close tool: ceramic, with pipes and installation fittings
(b).Urinal: ceramic, with pipes and installation fittings
(c).Wash basin: ceramic, with post, faucet, pipes and installation fittings
(d).Shower head, Shower base, Water mixture.

Brief introduction:

Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series

Brief introduction:

Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series

Our Team

Customer Visit

 30 days after receiving deposit

packed in 40HQ or 40ft OT container

Qingdao/Shanghai/Ningbo/Tianjing/Shenzhen

Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.

Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.

Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.

Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.

Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.

Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.

Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
