Prefabricated house for labor camp temporary building-Lida Group

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LIDA

Model Number:: M001

Material:: Steel Frame with Sandwich panel wall and Roof

Use:: House, Office, Shop, Villa, Warehouse, Workshop,Plant

Certificate:: ISO, CE, SGS

Steel Column:: Q235 Steel, C80x40x15x2.0

Triangular Steel structure roof:: Q235 Steel, C80x40x15x2.0

Purlin:: Q235 Steel, C80x40x15x2.0, Galvanized

Wall and Roof:: 50mm Sandwich panel

First Floor:: 1.5mm PVC floor leather + 18mm plywood

Door:: Insulated Steel Door

Window:: PVC window

Supply Ability

Supply Ability:: 3000 Square Meter/Square Meters per Day

Product Description

Steven Chen

Mobile: 00966 548943324 (Saudi Arabia) or 0086-13869829462(China)

General technical description for portable cabin prefabricated modular house KSA saudi arabia

Technical Parameter:

Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 111.5km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.44Kcal/m2hc
5. Second Floor Load Capacity: 150 kg/m2
6. Live load of corridor is 2.0kn/ m2

Material List For Two Storey Prefabricated House
Main Steel Frame
Steel column	Q235 Steel, C80x40x15x2.0, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Q235 Steel, C80x40x15x2.0, alkyd paiting, two primary painting, two finish painting.
2nd floor main beam	Q235 Steel, C80x40x15x2.0, alkyd paiting, two primary painting, two finish painting.
2nd floor Secondary beam	Q235 Steel, C80x40x15x2.0, Galvanized
Roof Purlin	Q235 Steel, C80x40x15x2.0, Galvanized
Cross bracing	Q235 Steel, L40x3 alkyd paiting, two primary painting, two finish painting.
U-iron	Q235 Steel, C80x40x15x2.0, alkyd paiting, two primary painting, two finish painting.
Canopy bracket	Q235 Steel, C80x40x15x2.0, alkyd paiting, two primary painting, two finish painting.
Steel stair	Q235 Steel, 3mm thickness diamond plate. 40*40 square tube , alkyd paiting, two primary painting, two finish painting.
Corridor	Q235 Steel, 3mm thickness diamond plate. 40*40 square tube , alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S,Zincification
Roof and Wall
Roof Panel	50mm thickness Sandwich panel, with 0.4mm galvanized Color steel on both sides, insulation: Polystyrene, insulation density:12kg/m³
Wall Panel	50mm thickness Sandwich panel, with 0.4mm galvanized Color steel on both sides, insulation: Polystyrene, insulation density:12kg/m³
Edge cover	0.4mmgalvanized Color steel , angle Alu.
Fasteners & accessoreis	Nails,glue ect
Ceiling+Second floor
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	Aluminum Frame, made of 50mm Sandwich panel, with 0.5mm galvanzied steel on both sides. Density of insulation: 12kg/m3
Window	PVC window witn 4mm glass, with screem
Electrical System
Electric cable	Honyar brand, lighting 2.5m m2, aircondition: 4.0mm2, BV cable, solid core. Three diferent color
PVC wire Channel	Honyar brand
Lights	double tube fluorescent lamp, 220V,50-60HZ
Switches	Honyar brand, Single Switch, with junction box
Socket	16A five hole univesal socket.
Power distribution cabinet	Honyar brand, box+breakers+earth leakage protective device

Our Services

Why Choose prefabricated house:

1. Economical: Compare to container house and villa, and concrete building, prefab house will be the most

economical solution.

2. Easy and Fast for installation

3. Easy and Fast for disassemble and remove to another place.
4. Durable and Strong Anti-rust Steel Structure, insulated Sandwich panel

5. Long Life Span, 10-15 years using life

6. Environment protective, no garbage caused

Company Information

Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 15 years, and we have exported our products to more than 40 countries as well as our domestic market with ISO9001, CE and SGS approval.

We would like to give fully support for your further inquiry!

Best regards
Steven Chen

China: 0086-13869829462 Moble: KSA: 00966-548943324
---------------------------------------------------------
Weifang Henglida Steel Structure Co., Ltd.
Add: Room1102, Unit B, Zhonghui Commercial Building,Qingdao,266000,China
Tel: 0086-532-88966982 Fax: 0086-532-88965571

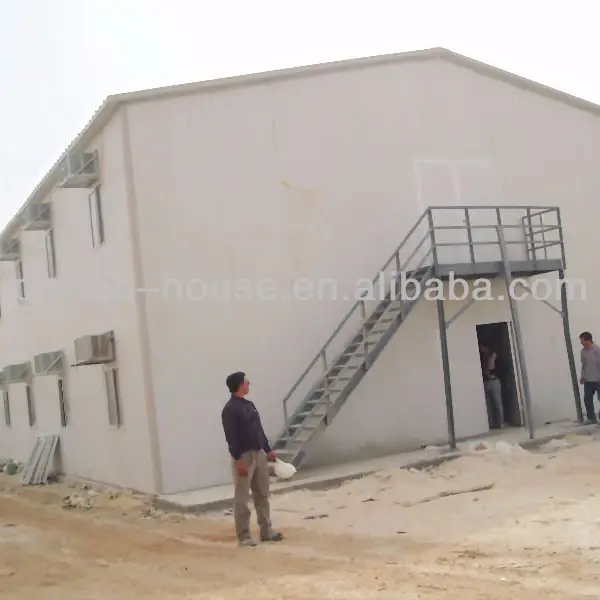

Portable cabin labor camp prefabricated house in Saudi Arabia

portable cabin prefabricated modular house saudi arabia KSA

You are so welcome to send us inquiries!

Best regards

Steven Chen

Mobile: 00966 548943324 (Saudi Arabia) or 0086-13869829462(China)

Lida Group has a guaranteed supply of high-quality raw materials. Besides, we have established long-term cooperative relations with universities and scientific research institutions across the country. We have strong innovation capability, powerful technical strength, and good industry reputation. Our prefab house has stable performance and reliable quality, and has higher cost performance than other similar products. Lida Group has accumulated rich production experience during the development for many years. Besides, we have professional engineers, advanced production equipment, and strong technical force. Our prefab house is superior in quality and excellent in performance.

We welcome you to contact us for more information of

prefab house and look forward to working with you !
