Prefabricated temporary labour camp

这里可以自定义设置
Prefabricated temporary labour camp
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
lida-ss
Material:
Steel
Use:
House, Toilet, accommodation dormitory
steel:
Q345 or Q235
Supply Ability
Supply Ability:
20000 Square Meter/Square Meters per Month Prefabricated temporary labour camp

Prefabricated temporary labour camp



John Xu

00966530585209(whatsapp ID)



prefabricated house porta cabin labor camp in Dammam -- Saudi Arabia
temporary building in Jubail -- Saudi Arabia, we now have prefab house and accommodation building project in Riyadh, Dammam, Jubail Industrial city,  Jeddah








 Detailed Product Description



 Brief Introduction



Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof.The insulation of sandwich panel can be polystyrene,polyurethane,rockwool and fibre glass.As a standardized construction product,it has below main features:Dry installation,no construction garbage caused; Enviornment protective materials adopted,repeated use and low cost;Flexible size and easy to assemble and disassemble with elegant apperance;Safe and durable.It is suitable for temporary buildings such as dormitory,cateen,recreation room,washing room,ect.



Characteristics



1.Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly.



2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.



3.Fast construction and easy installation.



4.Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.



Specification



Materialspecification
LengthAs customer's requirement
WidthMaximum 12 m
HeightMaxumum 9m
Column80*80/100*100/120*120 square tube Q235
BeamC80/C100/C120,Q235
PurlineC80/C100/C120,Q235
BraceL40*3/L50*4,Q235
Roof panel

sandwich panel 50/75/100 Eps/Rockwool/Fibreglass

Wall panel

sandwich panel 50/75/100 Eps/Rockwool/Fibreglass

Door

sandwich panel door/sliding door

Window

PVC window/Aluminium frame,4/5mm thickness glass

Gutter

0.8mm steel sheet/PVC gutter

Rain Pipe

PVC rain pipe








Our Services



1. Professional design and engineering team: Full solution for steel structure design.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be O.K.



Company Information



Established in 1995,Lida Group-Weifang Henglida Steel Structure is one of the biggest manufacturer of prefabricated building in China.We have been awarded ISO9001-2000,CE and SGS certificates.Our daily capacity can reach 5,000 square meters and this is how we manage it.

750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.

73,000 square meters of factory space.

3 production lines for our prefabricated house series.

3 production lines for coantier house series.

2 production lines for our steel structure warehouse/workshop series.

1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.



Finished Project

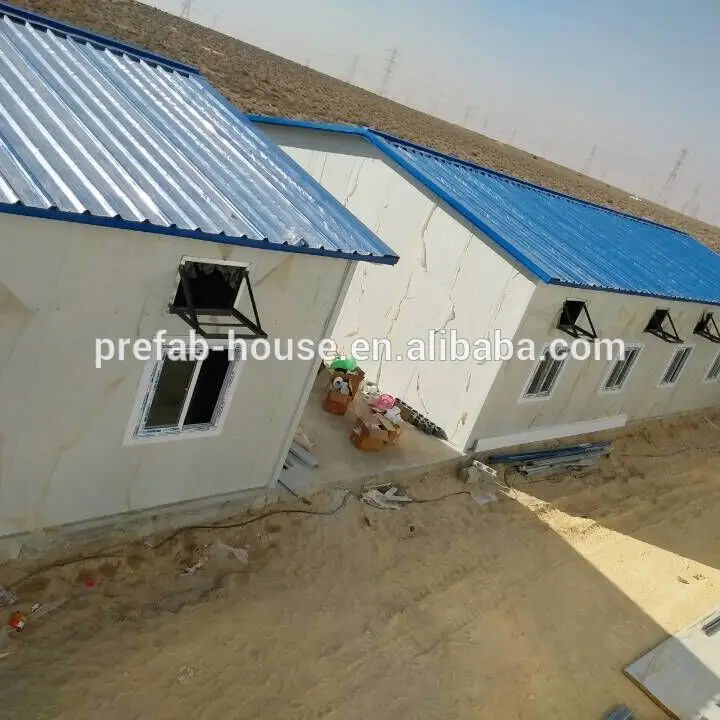

saudi arabia worker camp labor camp  light weight steel prefab accommodation They are widly use in construction site,temporary office and residencial building.

  Riyadh Qassim saudi Temporary housing labor camp

Steel frame:

Material:cold formed steel profiles in 3.5mm thinckness.

Surface finished: sand blasted in a quality of Sa2.5,epoxy ground coat in 30-40µm thinckness and final vinyl acrylic coat in 60-70µm thinckness.

saudi arabia worker camp labor camp



Floor

Girding structure:40*80*1.6mm square steel pipe.

Damp proof steel panel:1.5mm thinckness

Water proof polywood panel: 18mm

Glued final floor covering: Korea LG floor leather.



Roof

Girding structure: 40*30*2mm square steel pipe

External waterproof panel: color steel panel in 0.5mm thinckness.

Internal ceiling: sandwich panel of 75mm EPS. The both surface is fireproof panel,with PVC

ceiling.

  Riyadh Qassim saudi Temporary housing labor camp



Wall

Wall panel: sandwich panel of 75mm EPS with both surface of fireproof panel.



  Riyadh Qassim saudi Temporary housing labor camp

Doors and windows:

The materials and dimension as per your requirment.(Aluminium,Alloy window or plastic steel windows)



saudi arabia china manufacturer low cost labour dormitory

Bathroom:

It will be equipped with one toilet bowl,one wash basin,one shower equipment.we can offer others if you need.

saudi arabia worker camp labor camp

  Riyadh Qassim saudi Temporary housing labor camp

Kitchen:

We can offer one kitchen cabinet. We can provide as per your requirement.

Pls feel free to contact me if you are interested in i









Lida Group carries out the production in strict accordance with national quality standards. Besides, we have a quality inspection team to control each production link. All this guarantees the superior quality of prefab house. Lida Group has established long-term cooperative relationship with high-quality raw material suppliers. Besides, we have mastered mature production and installation technology. All this provides a strong guarantee for stable performance and excellent quality of prefab house.
