Prefabricated Warehouse Hangar Workshop Building Light Steel Structure

这里可以自定义设置
Prefabricated Warehouse Hangar Workshop Building Light Steel Structure
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Grade:
Steel
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
S122
Type:
Light
Application:
Steel Fabricated House, warehouse/poultry building/chicken house/henhouse/workshop/hangar
Product name:
steel building structure
Keywords:
portable aircraft hangar
Main structure:
Q345 high strength H section steel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Certificates:
ISO 9001, CE EN1090, SGS
Service life:
70 years
Installation:
supervisor guiding is available
Door:
Sliding door or electricl rolling door
Span:
Single span 36m without central column
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month , Integrating cooperated factories capacity: 750000 sqm monthly

Product Description

Prefabricated Warehouse Hangar Workshop Building Light Steel Structure

Materials:

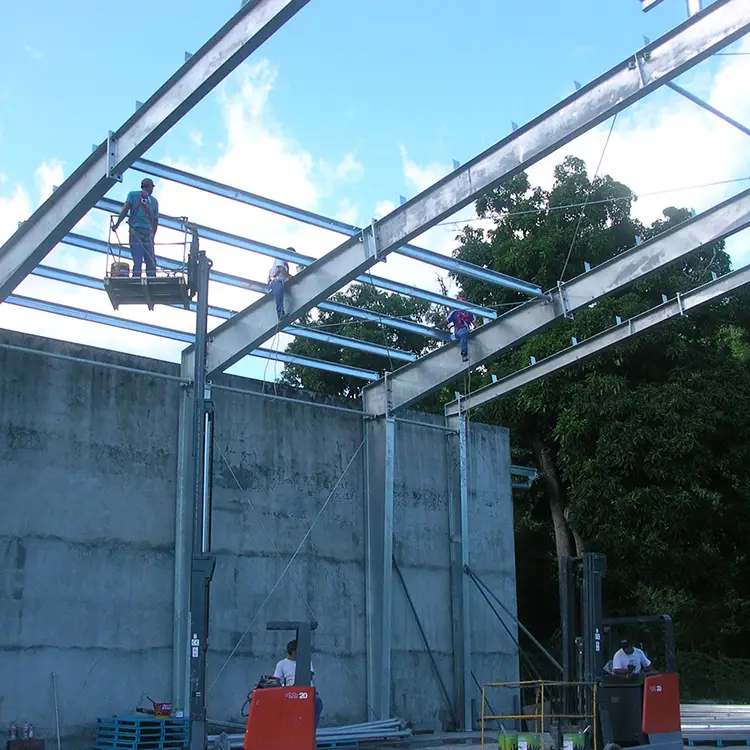

1. The main frame (columns and beams) is made of welded H-style steel.

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high intensity bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.



1. Steel Structure Buildings Introduction:

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.



2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.









tructure    H-section steelQ345 steel H beam, Box column is also available
WeldingAutomatic Submerged Arc Welding
Rust removingShot blasting
surface processing

twice primer and twice finish Alkyd Paint or hot dip

galvanized

High strength boltGrade 10.9
Substructure    Angle braceL50x4,Steel Q235,Process and painting
Cross bracingDia.20 round bar,Steel Q235, process and pre-galvanized
Tie bar

Dia.89*3 round pipe,Steel Q235 Process and painting

or pre-galvanized

Batter brace

Dia.12 round bar,Steel Q235 process and

pre-galvanized

Ordinary boltGalvanized bolt
Roof      PurlinC channel or Z channel,steel Q235, galvanized
Roof panel

(50mm, 75mm, 100mm, 150mm) Sandwich panel or

corrugated GI color steel sheet

Transparent

skylight

1.2mm FRP
AccessoriesSealant, self-tapping screw, etc.
Edge coverMade of color steel sheet
GutterMade of steel sheet thickness 0.8mm, or PVC
RinspoutPVC pipe
Wall   PurlinC channel or Z channel, steel Q235, galvanized
Wall panel

(50mm, 75mm, 100mm, 150mm) Sandwich panel or

(0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI

color steel sheet

AccessoriesSealant, self-tapping screw etc
Edge coverMade of GI color steel
Ventilator unpowered axial-flow ventilator or monitor roof
Door & window Electric rolling door/sliding door, PVC/Alu. alloy window
Crane With or without crane, ranging from 5 tons to 20 tons



Related Products

Company Information


FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

For those who are looking for a brand-new home and a lifestyle that offers all of the amenities while reducing the impact on the environment, this product might be the perfect one. Its advanced design considerately allows the sunlight to let in. The popularity of this product seems to be increasing with the emergence of fashion trends such as container houses, container shopping stores, and container bars. Its advanced design considerately allows the sunlight to let in.
