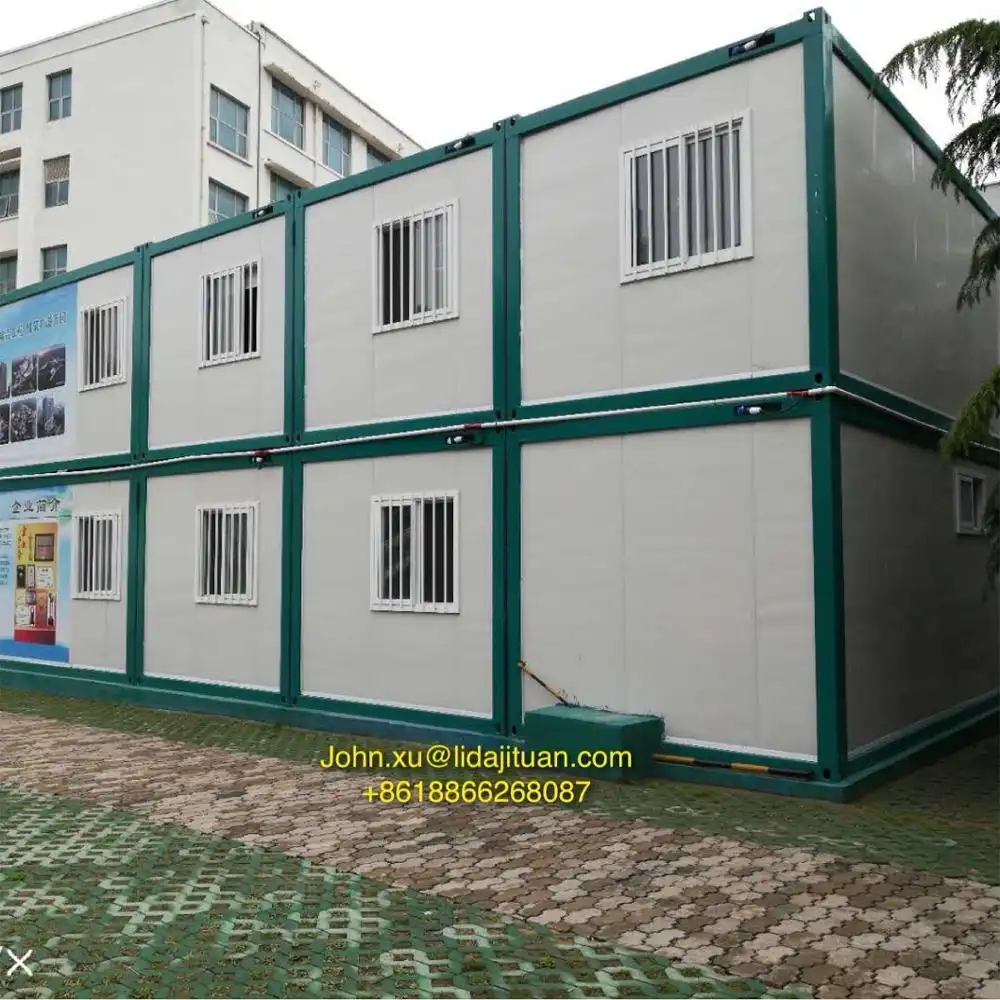

Russia Khazakstan container house labor camp

这里可以自定义设置
Russia Khazakstan container house labor camp
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
Lida-10787
Use:
Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet
ERRC:
41
Supply Ability
Supply Ability:
400 Unit/Units per Month
Russia Khazakstan container house labor camp

John Xu

+966 530585209/ +86 18866268087


prefab container
Description:
Container house is designed and developed according to the standard size of shipping container.
It is of heatproof and waterproof. It is widely used as office, meeting room, dormitory, shop, booth,
toilet, storage, kitchen, shower room and so on.

Characters:
Good ability to assemble and disassemble for several times without damage.
Could be lifted, fixed and combined freely.
Heatproof and waterproof.
Cost saving and convenient transportation (Each 4 container houses can loaded in one standard container)
Service life can reach up to 10 - 15 years
We can provide the service of installation, supervision and training by extra.

Technical Parameter:
Size: GP20, GP40 and HP40 of shipping container
Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Material specification
overall size6058x2438x2591mm
unit weight1.8 tons
roof system
outer steel plate1.2mm
roof steel keelC section 80x40x20x2.0mm
insulation80mm fiber glass
wooden board8mm
PVC ceiling board12mm
bottom  system
PVC floor leather1.5mm
bamboo plywood15mm
bottom steel frameC section steel 100x40x20x2.0mm
insulation1 00mm fiber glass
bottom steel plate0.5mm
wall system
75mm sandwich panelPU,EPS,fiber glass, rock wool
windowspvc sliding windows ( rolling shutter for option)
doorssteel door/ sandwich panel
We can supply bathroom and kitchen according to your request.







Finished Products





container drawing





container package

We use four in one flat package for delivery, the oversize of one flat package(4 single units) is completely same with shipping container, so it can be directly put on the top of shipping container, no need to load into shipping container.





Certifications

 Finished  Projects




Lida Group has developed a powerful distribution network for prefab house. This product combines simplicity with utility. All prefab house will be well packed in pallets and will be well protected for long-distance transportation. This product combines simplicity with utility.
