Saudi Arabia prefabrciated portable cabins for camp
Saudi Arabia prefabrciated portable cabins for camp
John Xu
00966530585209(whatsapp ID)
Detailed Product Description
Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof.The insulation of sandwich panel can be polystyrene,polyurethane,rockwool and fibre glass.As a standardized construction product,it has below main features:Dry installation,no construction garbage caused; Enviornment protective materials adopted,repeated use and low cost;Flexible size and easy to assemble and disassemble with elegant apperance;Safe and durable.It is suitable for temporary buildings such as dormitory,cateen,recreation room,washing room,ect.
Characteristics
1.Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly.
2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.
3.Fast construction and easy installation.
4.Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.
Specification
| Material | specification |
| Length | As customer's requirement |
| Width | Maximum 12 m |
| Height | Maxumum 9m |
| Column | 80*80/100*100/120*120 square tube Q235 |
| Beam | C80/C100/C120,Q235 |
| Purline | C80/C100/C120,Q235 |
| Brace | L40*3/L50*4,Q235 |
| Roof panel | sandwich panel 50/75/100 Eps/Rockwool/Fibreglass |
| Wall panel | sandwich panel 50/75/100 Eps/Rockwool/Fibreglass |
| Door | sandwich panel door/sliding door |
| Window | PVC window/Aluminium frame,4/5mm thickness glass |
| Gutter | 0.8mm steel sheet/PVC gutter |
| Rain Pipe | PVC rain pipe |
1. Professional design and engineering team: Full solution for steel structure design.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be O.K.
Established in 1995,Lida Group-Weifang Henglida Steel Structure is one of the biggest manufacturer of prefabricated building in China.We have been awarded ISO9001-2000,CE and SGS certificates.Our daily capacity can reach 5,000 square meters and this is how we manage it.
750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.
73,000 square meters of factory space.
3 production lines for our prefabricated house series.
3 production lines for coantier house series.
2 production lines for our steel structure warehouse/workshop series.
1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.
Finished Project

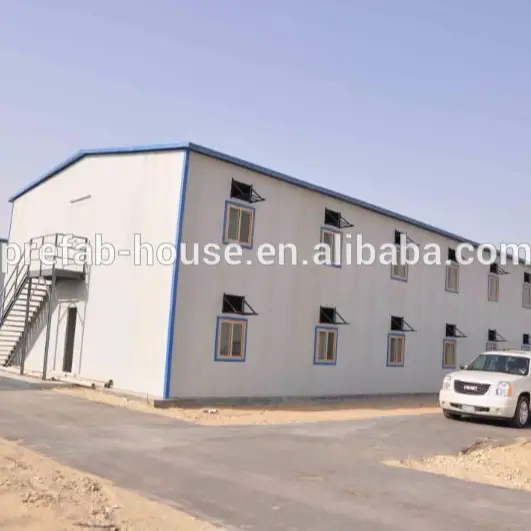

Riyadh Qassim saudi Temporary housing labor camp
Steel frame:
Material:cold formed steel profiles in 3.5mm thinckness.
Surface finished: sand blasted in a quality of Sa2.5,epoxy ground coat in 30-40µm thinckness and final vinyl acrylic coat in 60-70µm thinckness.
saudi arabia worker camp labor camp
Floor
Girding structure:40*80*1.6mm square steel pipe.
Damp proof steel panel:1.5mm thinckness
Water proof polywood panel: 18mm
Glued final floor covering: Korea LG floor leather.
Roof
Girding structure: 40*30*2mm square steel pipe
External waterproof panel: color steel panel in 0.5mm thinckness.
Internal ceiling: sandwich panel of 75mm EPS. The both surface is fireproof panel,with PVC
ceiling.
Riyadh Qassim saudi Temporary housing labor camp
Wall
Wall panel: sandwich panel of 75mm EPS with both surface of fireproof panel.
Riyadh Qassim saudi Temporary housing labor camp
Doors and windows:
The materials and dimension as per your requirment.(Aluminium,Alloy window or plastic steel windows)
saudi arabia china manufacturer low cost labour dormitory
Bathroom:
It will be equipped with one toilet bowl,one wash basin,one shower equipment.we can offer others if you need.
saudi arabia worker camp labor camp
Riyadh Qassim saudi Temporary housing labor camp
Kitchen:
We can offer one kitchen cabinet. We can provide as per your requirement.
Pls feel free to contact me if you are interested in i
We welcome you to contact us for more information of
prefab house and look forward to working with you !
