    Overview
    Quick Details
    Warranty:
    3 years
    After-sale Service:
    Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
    Project Solution Capability:
    graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
    Place of Origin:
    Shandong, China
    Brand Name:
    Lida
    Model Number:
    PH-001
    Use:
    Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet
    Product Type:
    prefab house
    Keyword:
    prefab house
    color:
    blue & red top / white wall
    column:
    C section steel/ 2C80
    buiding height:
    max 3 floors
    anti-seismic:
    7 degree
    certificate:
    CE/ISO
    prefab design portable house:
    prefab design portable house
    Supply Ability
    Supply Ability:
    10000 Square Meter/Square Meters per Month





    Simple Lightweight Steel Prefab With House Plan Design 7





    On Line Catalogue:

    PDF Catalogue: http://www.lidajituan.com/en/upload/2014/1/8182826942.pdf

    LGS Villa Catalogue: http://www.lidajituan.com/en/upload/2014/1/1115150923.pdf



    Technical Parameter:


    Technical Parameter of standard prefabricated house:
    1. Wind resistance: Grade 11(wind speed≤ 120km/h)
    2. Earthquake resistance: Grade 7
    3. Live load capacity of roofing: 0.6kn/m2
    4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
    5. Second Floor Load Capacity: 150kg/m2
    6. Live load of corridor is 2.0KN/ m2
    7. Wall permitted loading: 0.6KN/ m2
    8. Ceiling Permitted live loading: 0.5 KN/m2
    9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
    10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

    Steel Framework:

    Simple Lightweight Steel Prefab With House Plan Design 9




    1,Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel  Surface working: Alkyd painting
    ,two primary and two surface.
    2, Main triangle Beam:  fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.
    3, Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
    4, Surface working: Galvanized

    Floor:

    Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
    First floor:  18mm plywood with 2.0mm PVC floor leather for living rooms floor;



    Ceiling:

    Simple Lightweight Steel Prefab With House Plan Design 11

    6mm Gypsum board for dry room
    12mm PVC ceiling for wet room

    Walls:

    Simple Lightweight Steel Prefab With House Plan Design 13



    Insulated Steel Sandwich Panel wall
    Panel width: 950mm;
    Thickness: 50-150mm.
    Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm
    Insulation: Polystyrene, Rockwool or Polyurethane
    Density of Rockwool: 120Kg/m3
    Density of Polystyrene: 12Kg/m3, 16Kg/m3 20Kg/m3
    Density of Polyurethane: 40Kg/m3

    Door:

    Simple Lightweight Steel Prefab With House Plan Design 15


    External door: Insulated with opening dimension 950*2100mm, furnished with lock
    with 3keys. Inner door: Insulated steel door.

    Windows:

    Simple Lightweight Steel Prefab With House Plan Design 17

    Window material: PVC window with fly screen, 4mm glass.

    Electrical fittings option:

    Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
    16A five holes universal socket.
    double tube fluorescent lamp, 220V,50-60HZ
    Single Switch, Honyar brand, with junction box
    Electrical distribution box, box + breakers + earth leakage protective device

    Optional Water system fittings:


    Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
    Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

    Sanitary ware:

    Simple Lightweight Steel Prefab With House Plan Design 19

    Western Close tool: ceramic, with pipes and installation fittings
    Urinal: ceramic, with pipes and installation fittings
    Wash basin: ceramic, with post, faucet, pipes and installation fittings
    Shower head, Shower base, Water mixture

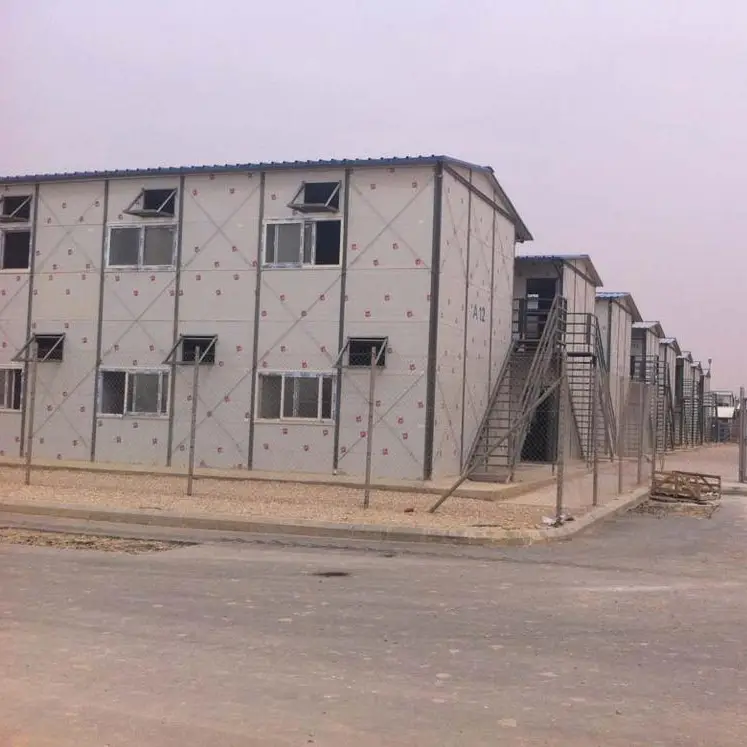

    Finished Projects:



    Simple Lightweight Steel Prefab With House Plan Design 21

    Simple Lightweight Steel Prefab With House Plan Design 23





    Packaging & Shipping

    Loading & Transport:

    • Container loading
    • Flat package loading as the pictures show bellow



      Simple Lightweight Steel Prefab With House Plan Design 25



    Our Services

    1. Professional design and engineering team:

        Full solution for site camp design. We could make the design for whole camp as per your requirement.



     2. Procurement and Manufacture for all material for prefabricated building:

        We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



    3. Site management & Installation supervision:

        We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

    Service Network:

    Simple Lightweight Steel Prefab With House Plan Design 27





    Company Information

    Our big company family:



    Simple Lightweight Steel Prefab With House Plan Design 29





    Our company information:



    I am proud to introduce my company to you.Our Weifang Henglida Steel Structure Co., Ltd. (Lida Group) is one of the largest manufacturers of the prefabricated houseFlat Pack container housesteel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, with best quality, best service and competitive price, and we are 8thyears Alibaba Gold Supplier and we have exported our products to more than 96 countries as well as our domestic market with ISO9001CE and SGS approval.



    750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.

    73,000 square meters of factory space.

    3 production lines for our prefabricated house series.

    3 production lines for coantier house series.

    2 production lines for our steel structure warehouse/workshop series.

    1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.



    Workshop and Facility:

    Simple Lightweight Steel Prefab With House Plan Design 31



    Simple Lightweight Steel Prefab With House Plan Design 33



    Certifications:

    CE, BV, SGS, ISO9001:2008 certifications

    Simple Lightweight Steel Prefab With House Plan Design 35



    FAQ

    Why Choose Prefabricated house for Site Camp Solution?

     There are many advantages to prefabricated house for site camps including:

    1. Speed of construction and camp installation: Allows for the building and the site work to be completed simultaneously, reducing the overall completion schedule, all the Main Structures will be connect with bolts, no welding works. All the wall and roof structure, flooring will be fixed by self-tapping screw or nails, normal carpenter team could make a good job!

    2. Economical Solution: Compare to concrete building, prefabricated building will be much more Economical

    3. Ability to service remote locations: Assembling a work camp close to the work site reduces travel time which reduces cost.

    4. Long time span: Well-built modular worker camps can last for 10, 15 or 20 years or more.

    5. Safe and stable, Earthquake resistance: Grade 7, Wind resistance: Grade 11(wind speed≤ 120km/h).

    Thanks for your attention! Any more questions, please don't be hesitant to contact me.
    Best regards and wish you a nice day!
                                                        (Welcome to our office and factory!)
    With rich industry experience, Lida Group continuously improves the production management system and cost management system. The prefab house we produce is superior to other similar products whether in appearance, performance, quality, or price. Lida Group has established a scientific and standardized production process, and has improved the quality control system. The production details are carefully controlled in an all-round way to ensure that prefab house is a high-quality product that meets international standards.
