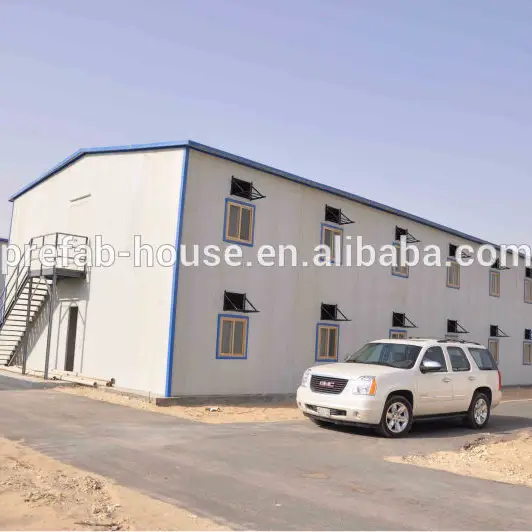

site office for Qatar main construction company

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: lida

Model Number:: lida-p

Material:: Steel

Use:: Carport, Hotel, House, Kiosk,Booth, Office, Shop, Toilet, Villa, Warehouse

house cost:: low cost house

Supply Ability

Supply Ability:: 3000 Square Meter/Square Meters per Week

site office for Qatar main construction company

Description:

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.

As a standardied construction product,it has below main features: dry installaton, no construction garbage cuased, environment protective materials adopted, repeated ue and low cost. flexible size and easy to assemble and disassemble with elegant appearance. Safe and durable. It is suitable for temporary building such as dormitory canteen ,recreation roo, washing room, etc.We can provide the service of installation, supervision and training by extra.

Main Material(for standard house):

No.	Part name	Material name	Description
1	ground channel	C shape steel	C80x40x15x2.0
2	column	Double C shape steel	2C80x40x15x2.0 welded
3	Beam for second floor	Steel frame	2C80x40x15x2.0,L40x4 welded
4	Sub-beam for second floor	C shape steel	C80x40x15x2.0
5	Purlin for roof	Corner steel	L40x4
6	Bracing for roof	Corner steel	L40x4
7	Bracing for aisle and rain shelter	C shape steel	C80x40x15x2.0 welded
8	Bracing between the columns	Round steel,bolt	φ8
9	Step board	Steel board	t=3.0mm
10	stair	Steel stairs
11	Wall panel	V950 EPS sandwich panel	50mm thickness,steel plate:0.3mm
12	Patition panel	V950 EPS sandwich pannel	50mm thickness, steel plate:0.3mm
12	Patition panel	V950 EPS sandwich pannel	50mm thickness, steel plate:0.3mm
13	Roof panel	V950 EPS sandwich pannel	50mm thickness,steel plate: 0.3mm
14	Floor for second storey	plywood	16mm thickness
15	Rain shelter	One layer color steel plate	0.45mm thickness
16	windows	PVC sliding windows	0.93mx1.715m
17	door	Sandwich panel door	0.85mx2.1m
18	Entensive and common bolt		Different dimension
18	Entensive and common bolt		Different dimension

Technical Parameter of standard prefabricated house:

Wind resistance: Grade 11(wind speed≤111.5km/h)

Earthquake resistance: Grade 7

Live load capacity of roofing: 0.5kn/m²

External and internal wall heat transmission coefficient: 0.35Kcal/m²hc

Second Floor Load Capacity: 150 kg/m²

We can design and produce the house according to customer’s request.

Picures in production:

Lida Group carries out the production in strict accordance with national quality standards. Besides, we have a quality inspection team to control each production link. All this guarantees the superior quality of prefab house. Lida Group has introduced advanced production equipment and assembly lines at home and abroad to form a complete industrial chain. Besides, we have built a scientific and complete quality inspection system to conduct comprehensive product testing. All this ensures that the quality and performance of prefab house are in line with international standards.
