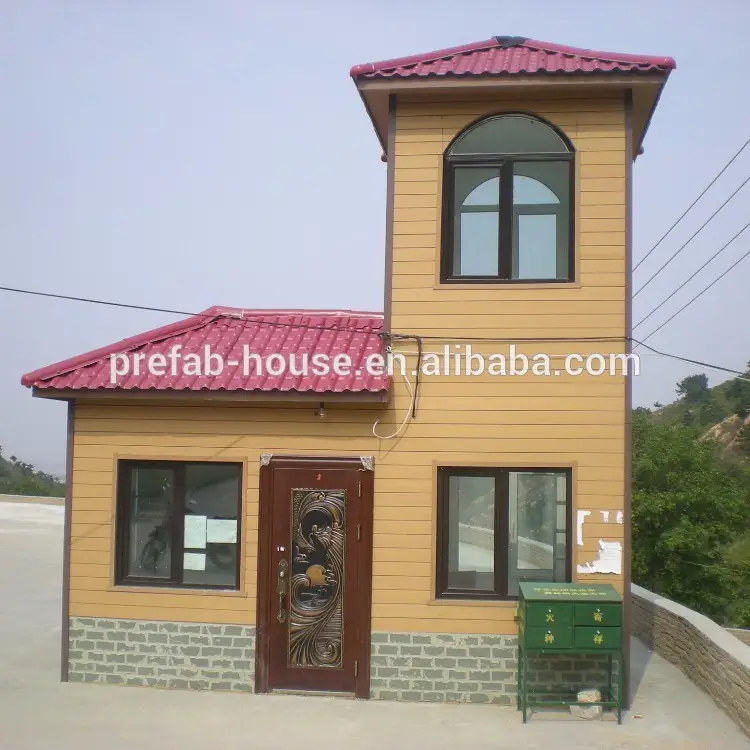

small villa design light steel villa prefab house villa

small villa design light steel villa prefab house villa

Add success, do you want to check your shopping cart?

Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
G550 Aluminum Zinc galvanized steel frame
wall and roof:
different durable materials
more than 90years
Aluminum alloy window
All the materials uesd will be fireproof
Supply Ability
Supply Ability:
8000 Square Meter/Square Meters per Month





Product Description

Design Standard

Load Code For The Design Of Building Structures (GB 50009-2001)

Technical Code of Cold-Formed Thin Wall Steel Structures (GB500018-2002)

Technical Specification for Cold-formed Steel Framing – Low Rise Buildings (Draft)

Cold formed steel portal frame design (Chapter 7)

Standard For Structural Drawings(GB/T 50105-2001)

Code for seismic design of buildings( GB50011-2001)



Cold formed steel structure (AS4600-2005)




1. Roof System

Roof Structure: G550 Z275/AZ150,Roof Truss System,@610mm, for ceiling@600mm and soffit@300mm

Roof Panel: OSB board with SBS waterproof

Insulation (Slope part): 75mm fiberglass,16kg/m3 insulation with foil

Insulation (Ceiling part): 75mm fiberglass,16kg/m3 insulation

Ceiling plasterboard:1 layer, 9.5mm, General Plasterboard

Soffit Panel: calcium silicate board

Rain System: Fascia, Downpipe, Gutter

Other: Include connection bolts and fasteners



2. Wall System

Wall Structure: G550 AZ150 ,stud@610mm

External Wall Cladding:7.5mm, fiber cement board

Internal Wall Cladding: 1 layer, 12mm, General Plasterboard

Waterproof Area: 1 layer, 10mm, fiber cement

Insulation (External Wall): 75mm,16kg/m3 insulation with foil

Insulation (Internal Wall): 75mm,16kg/m3 insulation

Other: External and internal wall painting ,Grace Tri-flex around all external

windows, SBS between ground wall and foundation, Include connection bolts and fasteners



3. Floor System

Floor Structure: G450 Galvanized beam@610mm

Floor Plant: 18mm OSB Board

Floor Ceiling: 1 layer, 12mm, General Plasterboard

Floor Insulation: 75mm,16kg/m3 insulation, Include connection bolts and fasteners




4. Hot Roll steel, Windows, doors, Stair and Non-standard item

Hot Roll Steel: Q235, Q345 , surface with derusting paint and metric anti-corrosion primer

Internal and external doors paint

Windows: PVC or Aluminum alloy framing with double glass

Doors: MDF interior door, metal entry door

Stairs: LGS Steel stair or Hot roll steel stair




Safer: The premium physical and chemical performance of steel is better than other structural styles. Steel performs better in disasters such as earthquake, typhoon etc, so the use of steel structure is safer.

Durable: LGS housing is made from anti-corrosion galvanized steel and high strength steel. The structure is more durable and there is no need to worry about contribution to a fire.

Comfortable: The steel structure is moisture proof and insect proof. The living environment is more secure and comfortable.

Flexible: All pipes can be concealed in the walls or floor structure. The actual usage area is at least 5% more than traditional concrete buildings. The different living areas can be divided freely according to the design requirement and won’t be restricted by the position of the load bearing walls.

Energy Saving: The Composite light weight and high strength floor and wall materials are insulated reducing noise and saving a lot of money in energy costs.

Environment Friendly: 100% light gauge housing frame is recyclable. There is no environmental pollution concern.

Design Flexibility: Light gauge steel construction can accommodate almost any style of residential buildings up to 3 floors. If it can be built with concrete, it can be built with steel.

Low Cost: Compared with concrete or other types of structures, a light gauge steel structure is light, and reduces the requirement on foundation loads, which can result in large scale savings in foundation costs.

Speed up: All the parts can be pre-fabricated in the factory and are quick to install. The sequence of design makes it possible to construct both internal and external walls simultaneously, which speeds up construction.

Quick Capital Turnover: The quick installation won’t tie up developers’ investment and can speed up retrieving capital and so reduce the investment risk and improve the investment benefit.

Environment Friendly:  Dry construction has little environmental pollution, as all parts are connected by screws. Construction is not affected by the season, and can continue in winter. There is little scrap left on site and no water is required in the construction process. 100% light gauge housing frame is recyclable.

Developing Trend: It is the developing trend in the global construction industry, whoever occupies the market first will have the best opportunities.





Company Information

1.Our advantages:


Lida Group has leading R & D capabilities and technology advantages, and its products such as steel structure series, modular house series, and light steel sandwich panels series are widely used in industry, traffic, city construction, commercial and other temporary accommodation. With the advanced technology, full products range, excellent sales and service teams, Lida’s products are sold throughout the home and abroad markets. Lida Group is a supplier of the series products for the country’s key projects, such as the Olympic Sailing Center, bay bridge of Jiaozhou Gulf, Qingdao cross sea tunnel, etc. Lida Group has the right of import and export, and its products have been exported to over 80 countires, such as,the UAE, Saudi Arabia, Oman, Angola, Equatorial Guinea,Libya,France, Poland, Romania, Russia, Australia, the Philippines, Indonesia ...etc.


2. Our company:


Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE and SGS approval.


Our Services

International Certifications

Agency in the world






1.You are manufacture factory or trading company?

A: We are manufacture factory. And you are welcomed to visit us for inspection. Weifang workshop and the quality control flow will show you our professional.


2.Is your price competitive with other companies?

A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost.

3.Do you offer service for installation?

A: We will give detailed installation drawings and direction info for free. And we could send engineers as installation director even a team.


4.Do you accept container loading inspection?

A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
