Somalia PKF used modular container house

这里可以自定义设置

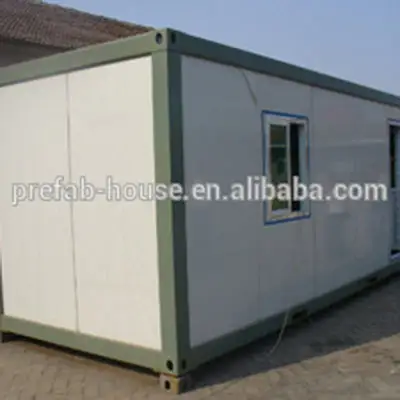

Somalia PKF used modular container house
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
Weifang Henglida-C
Material:
Steel
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Workshop,Plant
Supply Ability
Supply Ability:
1200 Ton/Tons per Month

Somalia PKF used  modular container house



Technical Parameter:

Size: GP20, GP40 and HP40 of shipping container

Wind Resistance: Grade 12

Wall permitted loading: 0.6KN/ m2

Ceiling Permitted live loading: 0.5 KN/m2

Wall Coefficient of thermal conductivity: K=0.442W/mk

Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

You are so welcome to send us inquiries!



Characters:

1) Good ability to assemble and disassemble for several times without damage.

2) Could be lifted, fixed and combined freely.

3) Heatproof and waterproof.

4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)

5) Service life can reach up to 15 - 20 years

6) We can provide the service of installation, supervision and training by extra.



Dimensions and Weight



Inner length /external length :5.81m/6.06m

Inner width /external width: 2.188m/2.438m

Inner height/external height:2,410m/2.591m

Weight: 2000kg per unit



Steel framework



Material: steel material Q234, thickness: 3.5mm,for top beam frame. Base beam frame and column.

Surface working: epoxy painting,two bottom and two surface.

Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

Forklift openings: size 100*250mm, distance is 1200mm



Floor



External wainscot: Flat galvanized color steel sheet, 0.5mm thickness

Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.

Warm proof Insulation layer: 75mm rock wool

18mm bamboo plywood

2.0mm PVC floor leather for living rooms floor;



Ceiling



Construction:

Roof exterior layer: 1.2mm steel plate with epoxy painting

Warm proof insulation filling: 75mm rockwool between C section purlins;

Inner wainscot: 8mm OSB board with 12mm PVC decoration board.

Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm



Walls



Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.

Construction:

Common room wall: 75mm rockwool 0.4/0.4mm Galvanized

steel on both side , Desity of Rockwool: 120Kg/m3

Galvanize window opening on the wall if needed.



Door



External door: Insulated with opening dimension 950*2100mm, furnished with lock

with 3keys. Inner door: Insulated steel door.



Windows



Window material: PVC window with fly screen. Double glass, 4mm glass.



Electrical fittings option



Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.

Main outlet and input industrial socket with 32A.

3 pcs 16A five hole universal socket.

2 pc double tube fluorescent lamp, 220V,50-60HZ

1 pc Single Switch, Honyar brand, with junction box

1 pc Electrical distribution box, box+breakers+earth leakage protective device



Optional Water system fittings



Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.

Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC



Sanitary ware:

Western Close tool: ceramic, with pipes and installation fittings

Urinal: ceramic, with pipes and installation fittings

Wash basin: ceramic, with post, faucet, pipes and installation fittings

Shower head, Shower base, Water mixture





We would like to give fully support for your further inquiry!

Best regards
Sunny
---------------------------------------------------------
Weifang Henglida Steel Structure Co., Ltd.
Add: Room1102, Unit B, Zhonghui Commercial Building,Qingdao,266000,China
Tel: 0086-532-88966982    Fax: 0086-532-88965571

container camp solution







Sample design;







Using this product would be a great way to reduce carbon footprint. It can significantly reduce emissions contribution due to its low energy consumption. Constructed from environmentally friendly materials, the product can be recycled. The performance of this projector screen is so superb that it is typically the overall favorite of home theater aficionados. Constructed from environmentally friendly materials, the product can be recycled.
