Overview

Quick Details

Type:: steel structure, steel structure shed

Warranty:: 1 Year

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Other

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Others

Application:: Warehouse, workshop/storage

Place of Origin:: Shandong, China

Brand Name:: LIDA Group

Model Number:: steel structure building

Design Style:: Traditional

Material:: H beam

Steel:: C&H-section steel, Q235/Q345

Certificates:: CE/ISO/BV

Sandwich panel:: Firber glass/Rock wool/PU/EPS

Advantage:: easy and quick installation/wind resistance/durable

Usage:: warehouse/factory/garage/refrigeration house/workshop/plant

anti-seismic:: magnitude 8

Surface treatment::: Hot Dip Gavalnized or Alkyd pain

Product Certification

CE Certified.: Valid from 2017-02-08 until 2049-12-31

Supply Ability

Supply Ability:: 5000 Square Meter/Square Meters per Week

steel structure shed steel shed drawing steel workshop shed

Product Description

Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc..

Component Specification

Main structure	H-section steel	Q345 steel H beam, Box column is also available
	Welding	Automatic Submerged Arc Welding
	Rust removing	Shot blasting
	surface processing	twice primer and twice finish Alkyd Paint or hot dip galvanized
	High strength bolt	Grade 10.9
Substructure	Angle brace	L50x4,Steel Q235,Process and painting
	Cross bracing	Dia.20 round bar,Steel Q235, process and pre-galvanized
	Tie bar	Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized
	Batter brace	Dia.12 round bar,Steel Q235 process and pre-galvanized
	Ordinary bolt	Galvanized bolt
Roof	Purlin	C channel or Z channel,steel Q235, galvanized
	Roof panel	(50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
	Transparent skylight	1.2mm FRP
	Accessories	Sealant, self-tapping screw, etc.
	Edge cover	Made of color steel sheet
	Gutter	Made of steel sheet thickness 0.8mm, or PVC
	Rinspout	PVC pipe
Wall	Purlin	C channel or Z channel, steel Q235, galvanized
	Wall panel	(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
	Accessories	Sealant, self-tapping screw etc
	Edge cover	Made of GI color steel
Ventilator		unpowered axial-flow ventilator or monitor roof
Door & window		Electric rolling door/sliding door, PVC/Alu. alloy window
Crane		With or without crane, ranging from 5 tons to 20 tons

Advantages

1) Single span and multiple span are available, the max clear span is 36m without central column (post).

2) Service life is up to 70 years.

3) Cost effective, the average price is from USD 30/sqm to USD 90/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.

Installation

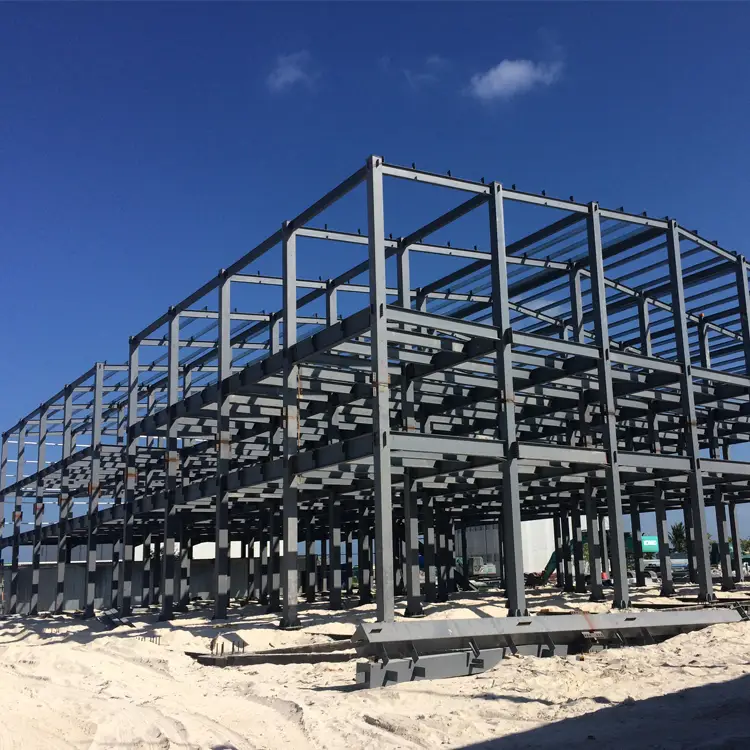

Project case
