the building steel structure restaurant

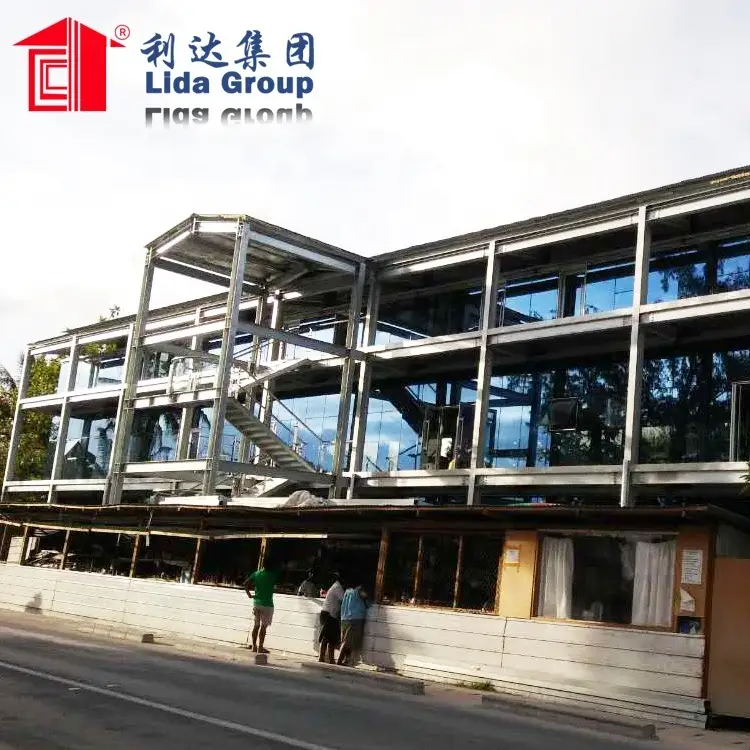

The building steel structure restaurant
Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc..
Component Specification
Main structure | H-section steel | Q345 steel H beam, Box column is also available |
| Welding | Automatic Submerged Arc Welding | |
| Rust removing | Shot blasting | |
| surface processing | twice primer and twice finish Alkyd Paint or hot dip galvanized | |
| High strength bolt | Grade 10.9 | |
| Substructure | Angle brace | L50x4,Steel Q235,Process and painting |
| Cross bracing | Dia.20 round bar,Steel Q235, process and pre-galvanized | |
| Tie bar | Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized | |
| Batter brace | Dia.12 round bar,Steel Q235 process and pre-galvanized | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C channel or Z channel,steel Q235, galvanized |
| Roof panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet | |
| Transparent skylight | 1.2mm FRP | |
| Accessories | Sealant, self-tapping screw, etc. | |
| Edge cover | Made of color steel sheet | |
| Gutter | Made of steel sheet thickness 0.8mm, or PVC | |
| Rinspout | PVC pipe | |
| Wall | Purlin | C channel or Z channel, steel Q235, galvanized |
| Wall panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet | |
| Accessories | Sealant, self-tapping screw etc | |
| Edge cover | Made of GI color steel | |
| Ventilator | unpowered axial-flow ventilator or monitor roof | |
| Door & window | Electric rolling door/sliding door, PVC/Alu. alloy window | |
| Crane | With or without crane, ranging from 5 tons to 20 tons |
Advantages
1) Single span and multiple span are available, the max clear span is 36m without central column (post).
2) Service life is up to 70 years.
3) Cost effective, the average price is from USD 30/sqm to USD 90/sqm.
4) Fast construction, from production to finishing installation, only need several months.
5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.
Project case
Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.
750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.
83000sqm meters of factory space.
5 production lines for our prefabricated house series.
5 production lines for our container house series.
3 production lines for our steel structure warehouse/workshop series
1 production line for our light steel Villa series
Our Team
Customer Visit
We welcome you to contact us for more information of
prefab house and look forward to working with you !
